Generac Power Systems GP15000E

4 Owner’s Manual for Portable Generator
Section 2 General Information and Setup

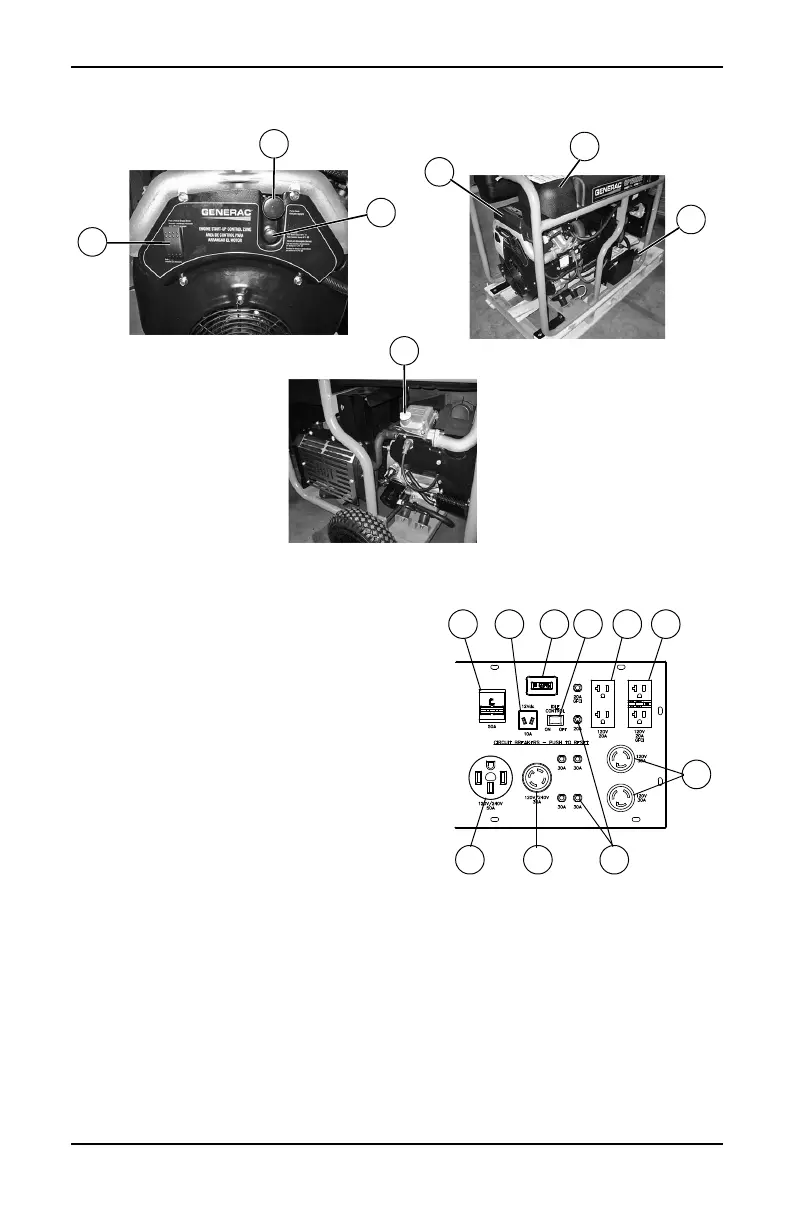

Figure 2-1. Features and Controls
TABLE 1. Generator Components
Figure 2-2. Control Panel
000920
000921
000919
11
12
10
13
15
16
14
1 12 Volt DC, 10 Amp Receptacle
2 120 Volt AC, 20 Amp Duplex Receptacle
3 120 Volt AC, 20 Amp, GFCI Duplex
Receptacle (NEMA 5-20R)
4 120 Volt AC, 30 Amp Locking Receptacle
(NEMA L14-30R)
5 120/240 Volt AC, 30 Amp Locking
Receptacle (NEMA L14-30R)
6 120/240 Volt AC, 50 Amp Receptacle
7 Circuit Breakers (AC)
8 Hour Meter
9 Idle Control Switch
10 Start/Run/Stop Switch
11 Choke Knob
12 Winter/Summer Valve
13 Fuel Tank
14 Grounding Lug
15 Air Cleaner
16 Oil Fill
17 10 Amp Fuse (behind control panel, not
shown)
