Owner’s Manual for Portable Generator 7

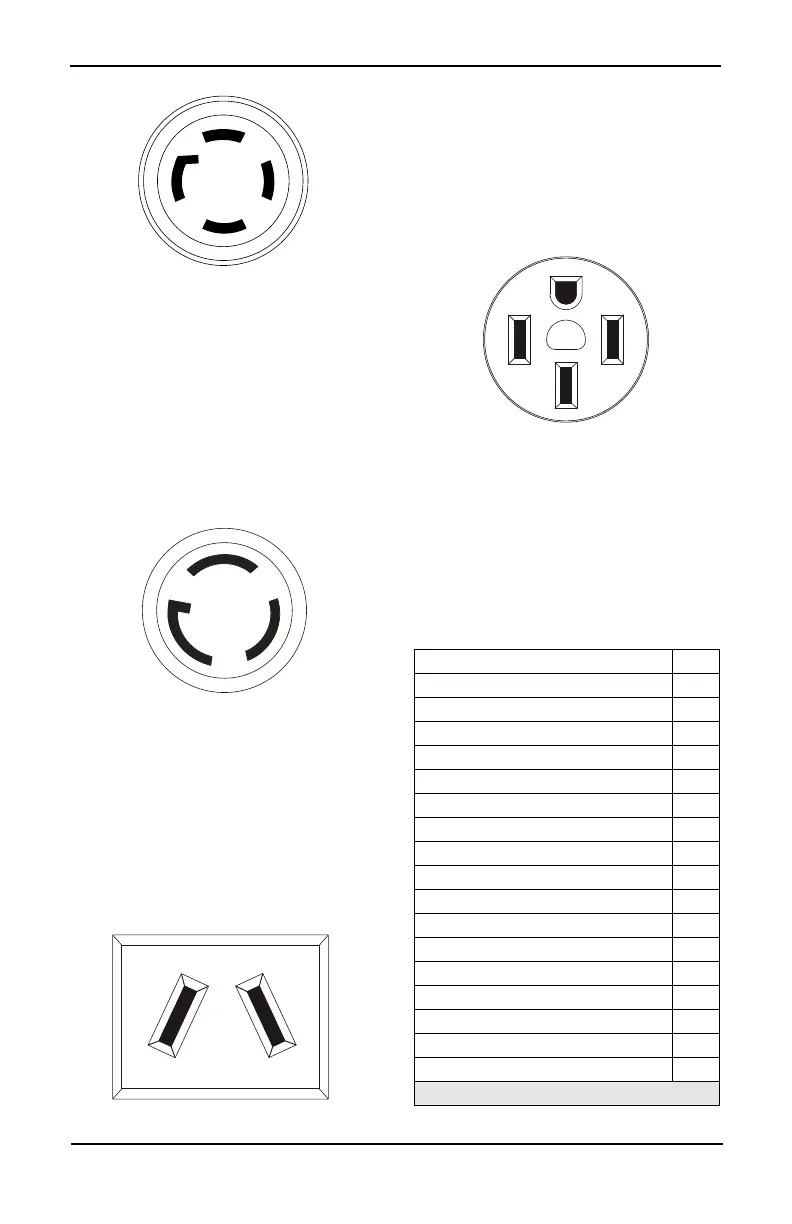

Figure 2-6. 120/240 VAC, 30 Amp Receptacle
NEMA L14-30R
120 VAC, 30 Amp Receptacle
Use a NEMA L5-30 plug with this receptacle
(rotate to lock/unlock). Connect a suitable 3-
wire cord set to the plug and to desired load.
The cord set should be rated for 125 Volts AC
at 30 Amps (or greater). See Figure 2-7.
Use this receptacle to operate 120 Volt AC,
60Hz, single phase loads requiring up to 3600
watts (3.6kW) of power at 30 Amps. The outlet
is protected by a 30 Amp push-to-reset circuit
breaker.
Figure 2-7. 120 VAC, 30 Amp Receptacle
NEMA L5-30
120 Volt DC, 10 Amp Receptacle
This receptacle can charge a 12-Volt automo-
tive or utility style storage battery. See Figure
2-8.
NOTE: This receptacle cannot charge 6-volt
batteries and cannot be used to crank an
engine having a discharged battery. See
Using the 12 VDC Battery Charger before
attempting to charge a battery.
Figure 2-8. 120 Volt DC, 10 Amp Receptacle
120/240 VAC, 50 Amp receptacle
Use a NEMA 14-50 plug with this receptacle.
Connect a 4-wire cord set rated for 250 Volts
AC at 50 Amps to plug Figure 2-9.
Use this receptacle to operate 120/240 Volt
AC, 60 Hz electrical loads requiring up to
12,000 watts (12.0 kW) of power. This recep-
tacle is protected by a 50 Amp 2-pole circuit
breaker.
Figure 2-9. 120/240 VAC, 50 Amp Receptacle
NEMA 14-50
Remove Contents from Carton
1. Open carton completely by cutting each
corner from top to bottom.
2. Remove and verify carton contents prior to
assembly. Carton contents should contain
the following:
TABLE 3. Accessories
000844
000923
Item Qty.
Main Unit 1
Owner’s Manual 1
Liter Oil SAE 30 2
Handle (A) 1
Never-flat Wheel (B) 2
Frame Foot Assembly (C) 1
Axle (D) 1
Axle Bracket Assembly (E) 2
Spark Plug 2
Spark Plug Wrench 1
Air Filter 1
Oil Filter 1
Pre-cleaner 1
Battery Charge Cable 1
Product Registration Card 3
Service Warranty 1
Emissions Warranty 1
