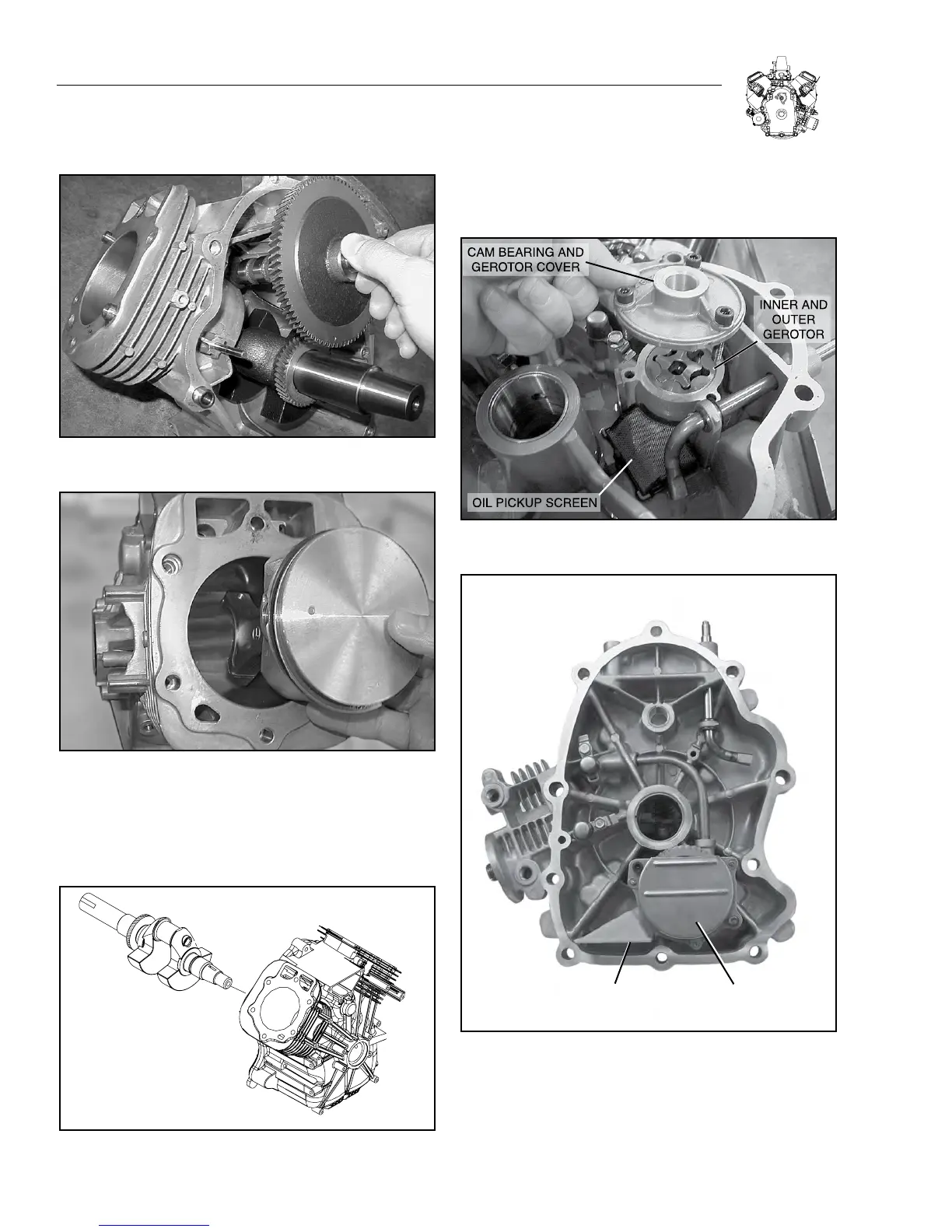

Figure 9-2. Remove Camshaft
Figure 9-3. Remove Pistons and Connecting Rods
5. Repeat for cylinder #1.
6. Remove crankshaft (Figure 9-4).
7. Remove oil pump from crankcase cover/sump.
Figure 9-4. Remove Crankshaft
Note: Clean all surfaces of gasket material. Remove oil seals and
thoroughly clean components in solvent. Organize components,
keeping parts which are assemblies together.
Figure 9-5. Remove Oil Pump (Vertical Shaft Engine)
PICK-UP SCREEN OIL PUMP
Figure 9-6. Remove Oil Pump (Horizontal Shaft Engine)
