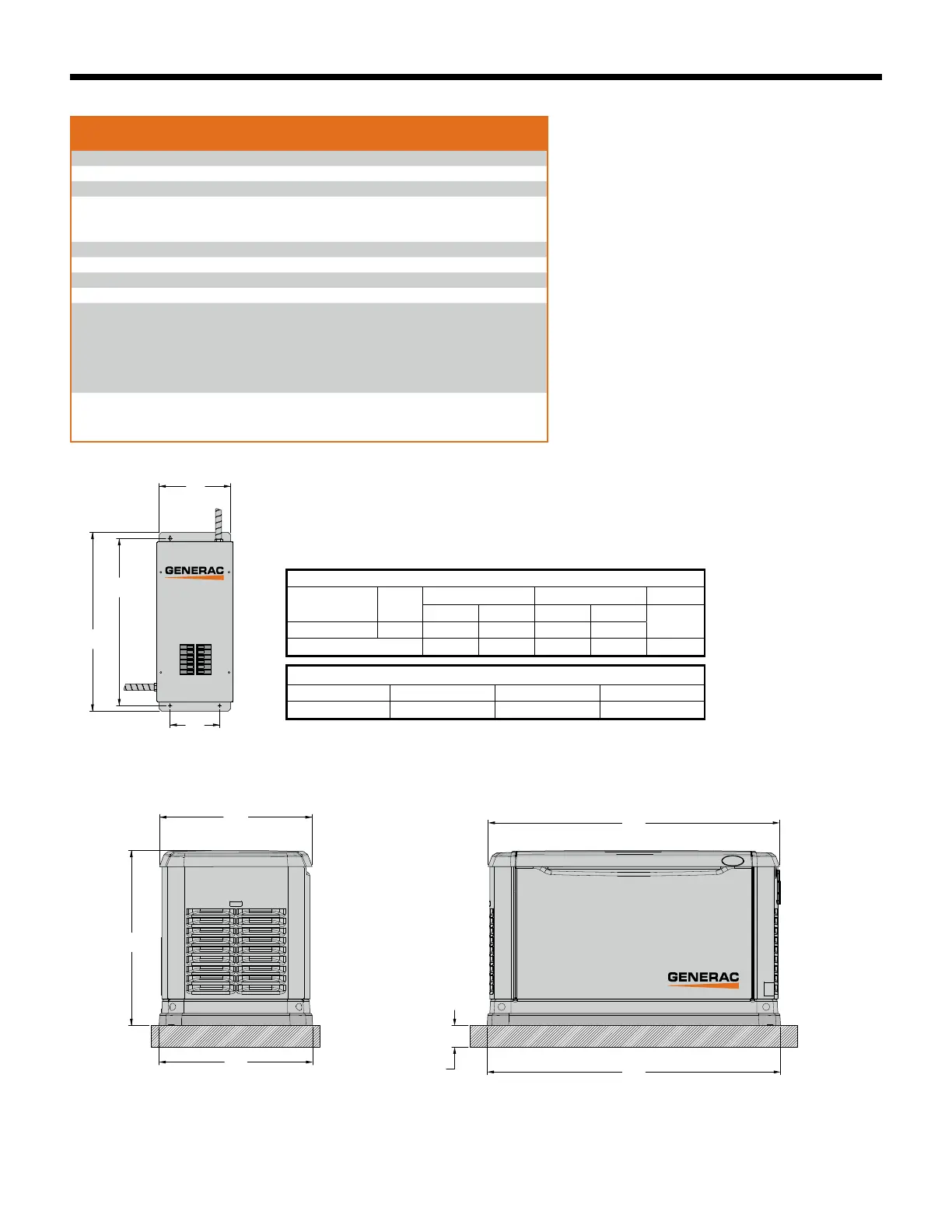

Generac
®
Guardian
®
Series Standby Generator - 17 kW
EZ Switch™ Features
• Electrically operated, mechanically-held contacts for
fast, positive connections.
• Rated for all classes of load, 100% equipment rated,
both inductive and resistive.
• 2 pole, 250 VAC contactors.
• 160 millisecond transfer time.
• Dual coil design.
• Main contacts are silver plated or silver alloy to
resist welding and sticking.
• NEMA 1 (indoor rated) enclosure is standard on the
100 amp switch.
• Pre-wired 30 foot (9.1 meter) whip to connect to the
pre-wired external connection box.
• Pre-wired 2 foot (0.61 meter) whip, color coded to
connect into the existing electrical panel.
EZ SWITCH™ &
LOAD CENTER
Model 005873-1
(17 kW)
No. of Poles 2
Current Rating (amps) 100
Voltage Rating (VAC) 250
Utility Voltage Monitor (fixed)
-Pick-up
-Dropout
80%
60%
Return to Utility approx. 15 sec.
Exerciser weekly for 12 minutes Standard
UL Listed Standard
Dimensions (H” x W” x D”) Inches(mm) 26.5 x 12.5 x 7 (658 x 308 x 172)
Total of Pre-wired Circuits
No. 15A 120V
No. 20A 120V
No. 20A 240V
No. 40A 240V
No. 50A 240V
16
5
5
1
1
1
Circuit Breaker Protected
Available RMS Symmetrical
Fault Current @ 250 Volts
10,000
731.9
[28.8]
637.6
[25.1]
LEFT SIDE VIEW
642
[25.3]
76.2 [3.0]
PEA GRAVEL
MINIMUM
TRANSFER
SWITCH
8KW - 17KW
(IF SUPPLIED)
TRANSFER
SWITCH
20KW
(IF SUPPLIED)
1218
[47.9]
FRONT VIEW
1226
[48.3]
H2
H1
W1
W2
H2
H1
W1
W2
®
731.9
[28.8]
637.6
[25.1]
LEFT SIDE VIEW
642
[25.3]
76.2 [3.0]
PEA GRAVEL
MINIMUM
TRANSFER
SWITCH
8KW - 17KW
(IF SUPPLIED)
TRANSFER
SWITCH
20KW
(IF SUPPLIED)
1218
[47.9]
FRONT VIEW
1226
[48.3]
H2
H1
W1
W2
H2
H1
W1
W2
Design and specifications subject to change without notice. Dimensions shown are approximate. Contact your Generac dealer for certified drawings. DO NOT USE THESE DIMENSIONS FOR INSTALLATION PURPOSES.
®
Terminal Wire Ranges
ATS Rated Amps Switch Terminal Neutral Lug/Stud Ground Lug
100A 2-Pole UL 1 x 1/0-12 1 x 3/8-16 Stud 1 x 2/0-14
Mechanical Dimensions (in inches)
Current
Rating
No. of
Poles
Height Width Depth
H1 H2 W1 W2
7100 UL Listed 2 26.5 in 29.25 in 8.14 in 12.5 in
673mm 743mm 207mm 317.5mm 178mm
