General Information
20 Owner’s Manual for MLT3060M-K Light Tower
Operator Screens
See Figure 2-6. The operator screens display the most
relevant and critical information an operator will need to
properly configure and use the unit. From these six
screens, the operator can access information necessary
to operate the unit under normal conditions.

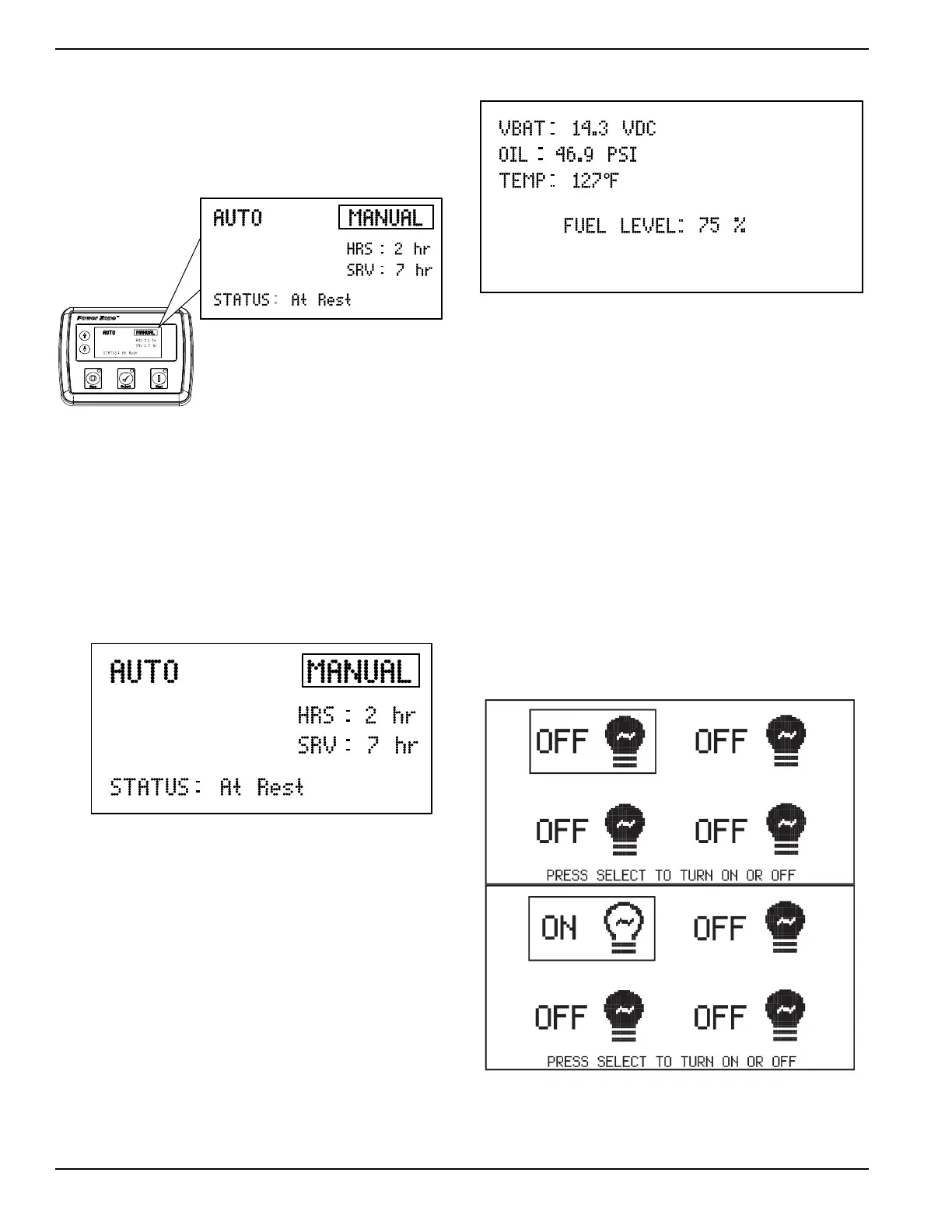

Figure 2-6. Operator Screens Location
Home Screen
See Figure 2-7. The Home screen is the default screen
of the controller and displays after the controller is
powered up and the unit management software is
loaded. It displays the controller mode, total operating
hours, hours left until the next service interval, engine
operating status, and engine RPM. If the unit is in AUTO
mode, the Home screen may also display whether the
scheduler or “dusk to dawn” are enabled.
Figure 2-7. Home Screen
Engine Screen
See Figure 2-8. The Engine screen displays
battery voltage, oil pressure, coolant temperature
and fuel level.
Figure 2-8. Engine Screen
VBAT: Displays the engine battery voltage. A
normal reading is 12-14V on 12 volt systems and
24-26V on 24V systems (with the engine running).
OIL: Displays engine oil pressure. Normal
operating pressure is between 35-80 psi (241-552
kPa).
TEMP: Displays engine coolant temperature.
Normal operating temperature of the unit is
between 100-230°F (38-110°C).
FUEL LEVEL: Displays remaining fuel level as a
percentage of usable fuel tank capacity.
Lights Screen
See Figure 2-9. The Lights screen enables the operator
to turn the lights ON and OFF. See Light Operation or
Light Operation (With PowerZone Controller, If
Equipped) for more information.
Figure 2-9. Lights Screen
002354
002544
002355
002327
