Generac Power Systems MAGNUM MLT5060M

To Next Page

To Previous Page

Wiring Diagrams

Owner’s Manual for MLT Light Tower 33

Section 6: Wiring Diagrams

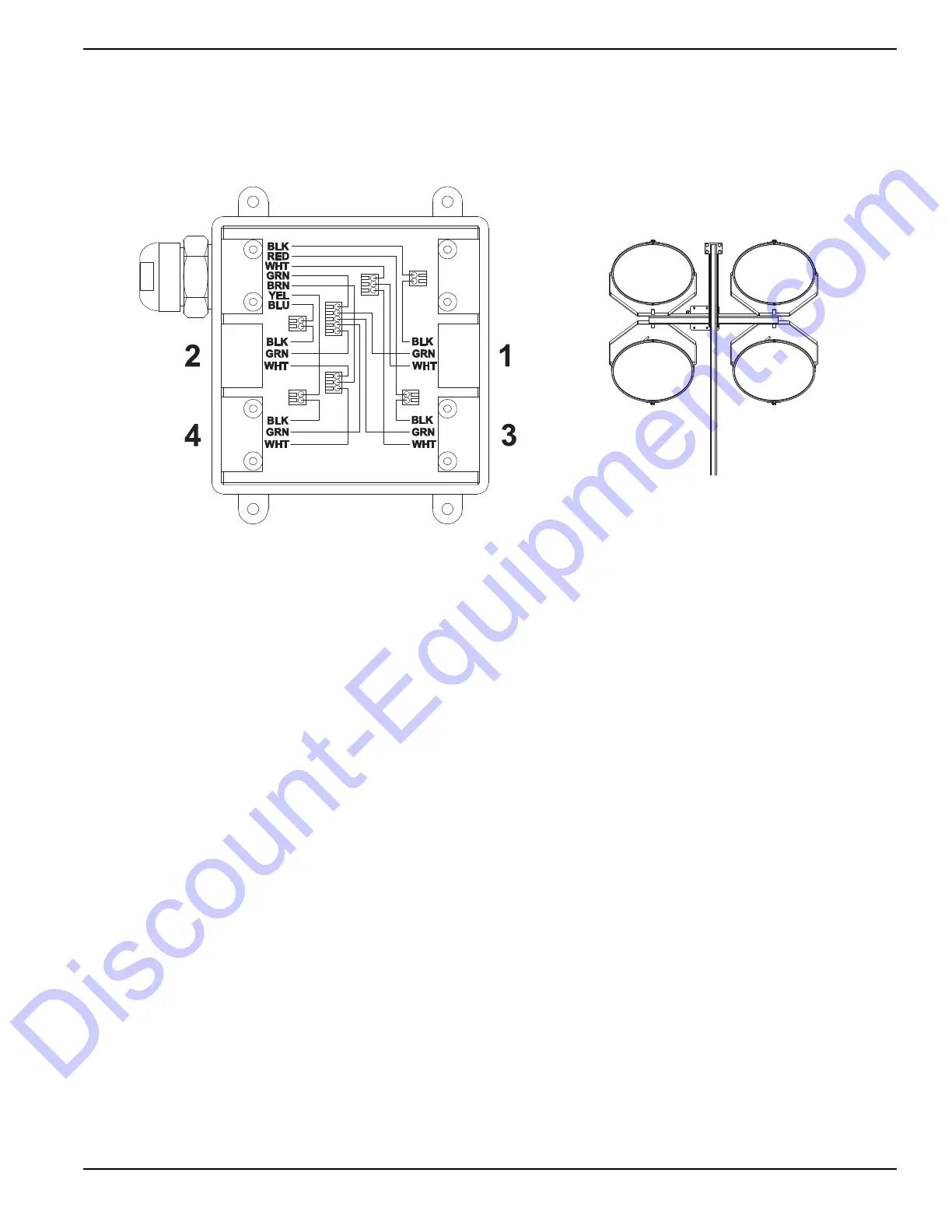

Mast Junction Box Wiring and Light Connections

00768
