Generac Portable Products MC4000 Generator
18

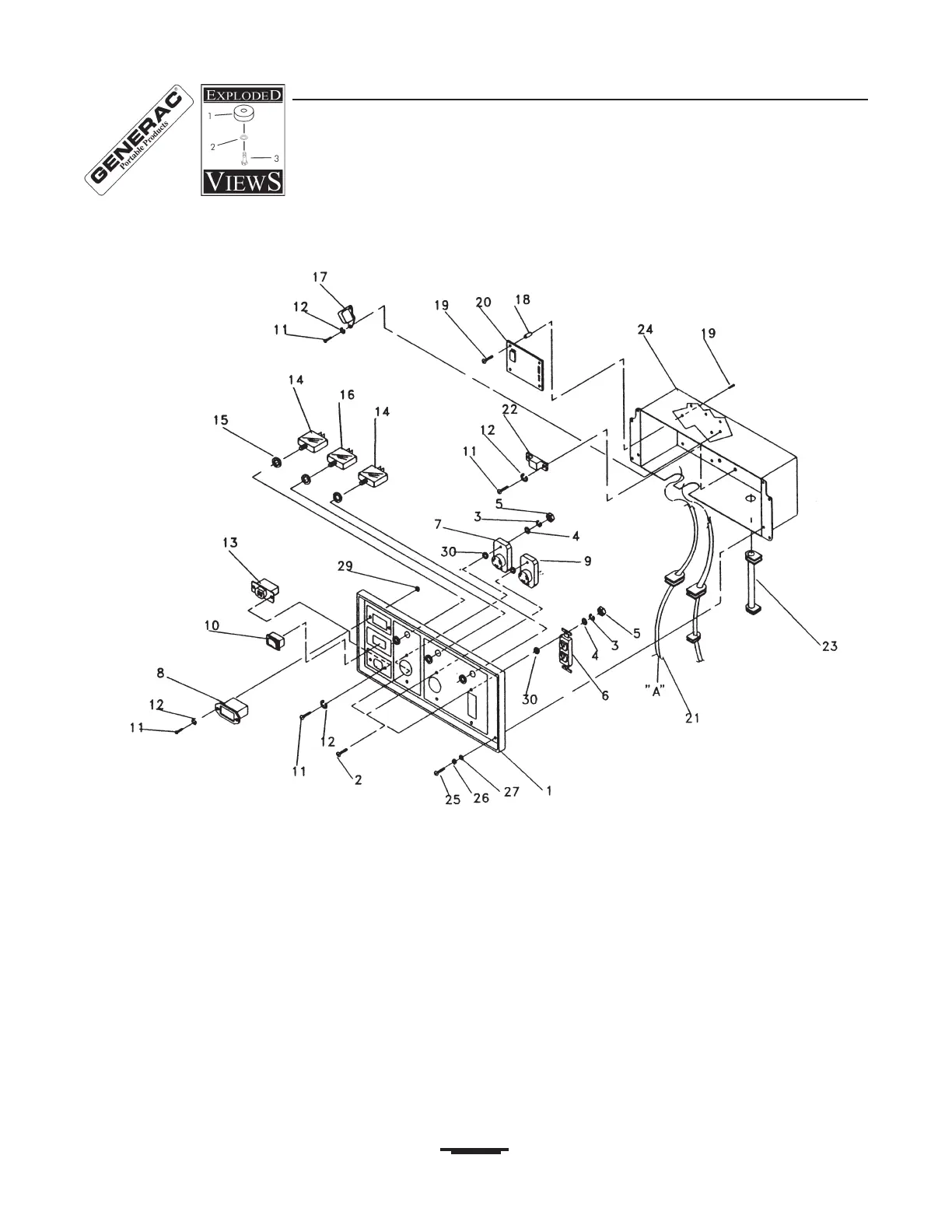

EXPLODED VIEW AND PARTS LIST – CONTROL PANEL
Item Part # Qty. Description
1 92811 1 PANEL, Control
2 75475 6 SCREW, .7 X 10mm
3 22264 6 WASHER, M4 Lock
4 38150 6 WASHER, Flat
5 51715 6 NUT, M4 Hex
6 80409 1 RECEPTACLE, Dplx GFCI 20A
7 68867 1 OUTLET, 120/240 Volt, 20 Amp
Locking
8 77604 1 METER, Hour
9 68868 1 OUTLET, 120 Volts, 30 Amp
Locking
10 82538 1 SWITCH, On/Off Rocker
11 43181 8 SCREW, .5 X 10mm
12 43182 8 WASHER, M3 Lock
13 66822 1 OUTLET, 12 Volt DC
14 75207 2 CIRCUIT BREAKER, 20 Amp
Item Part # Qty. Description
15 82881 3 WASHER, Internal Lock
16 75207A 1 CIRCUIT BREAKER, 30 Amp
17 84028 1 TRANSFORMER, Idle Control
18 64525 4 STANDOFF, ¾" Hex
19 64526 8 SCREW, 32 X 3/8"
20 83970 1 CONTROL BOARD, System
21 84335 1 WIRE HARNESS
22 87692 1 CIRCUIT BREAKER, 10 Amp
23 84134 1 GROMMET, Rubber
24 87782 1 BOX, Control
25 91526 4 SCREW, .8 x 12mm
26 49226 4 WASHER, M5 Lock
27 23897 4 WASHER, M5 Flat
29 51714 2 NUT, M3 Hex
30 23365 6 WASHER, Shakeproof
