5,000 Watt Portable Generator
7
RECEPTACLES
This generator is equipped with the following receptacles:
120 Volt AC, 20 Amp Receptacle
This outlet is protected against overload by 20 Amp push-
to-reset circuit breakers.
Use each socket to operate 120 Volt AC, single phase,
60 Hz electrical loads requiring up to 2,400 watts (2.4kW)
of power at 20 Amps (Figure 6). Use cord sets that are
rated 125 Volts at 20 Amps (or greater).
120/240 Volt AC, 20 Amp Locking
Receptacle
Use a NEMA L14-20 plug with this receptacle. Connect a
4-wire cord set rated for 250 Volts AC at 20 Amps (or
greater).You can use the same 4-wire cord if you plan only
to run a 120 Volt load (Figure 7).
This receptacle powers 120 Volt AC, single phase, 60Hz
loads requiring up to 2,400 watts of power (2.4 kW). Or it
will operate 240 Volt AC, single phase, 60Hz loads up to
4,800 watts (4.8 kW).This outlet is protected by 20 Amp
push-to-reset circuit breakers.

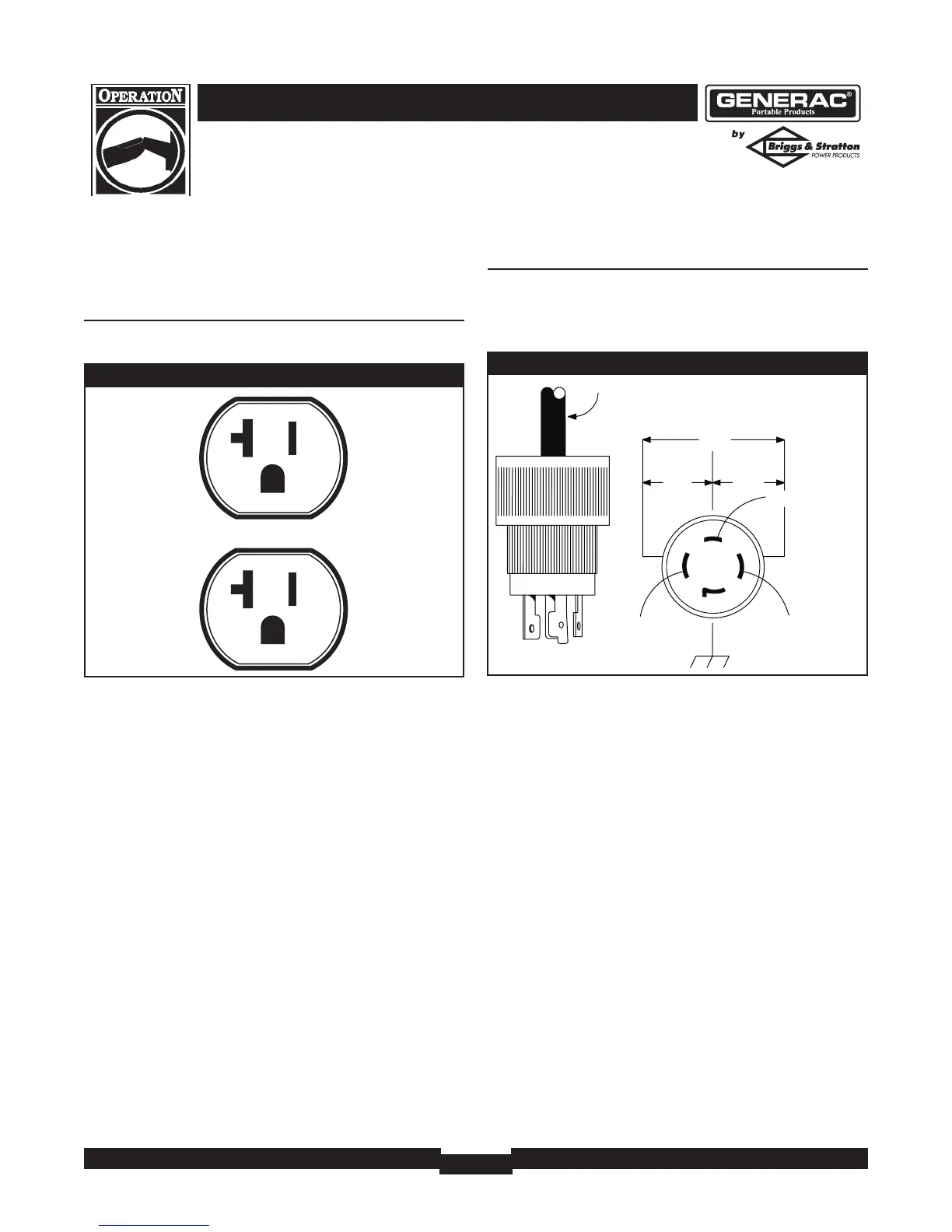

Figure 6 — 120 Volt, 20 Amp Duplex Receptacle
Figure 7 — 120/240 Volt AC, 20 Amp Receptacle
4-Wire Cord Set
240V
120V
120V
W (Neutral)
X (Hot)
Y (Hot)
NEMA L14-20
Ground (Green)
