5,000 Watt Portable Generator
OPERATING THE
GENERATOR
CAUTION! Never start or stop the engine with
electrical loads connected to the receptacles AND
with the connected devices turned ON.
Starting the Engine
Disconnect all electrical loads from the generator. Use the
following start instruction steps by numerical order:
1. Turn the fuel valve to the “On” position (Figure 3).
2. Place the choke lever in the “Choke” position
(Figure 4).
3. Set the rocker switch to “On” position (Figure 5).
4. Grasp the recoil handle and pull slowly until slight
resistance is felt.Then pull rapidly to start engine.
5. Move choke lever to “Run” position a short distance at
a time over several seconds in warm weather or
minutes in cold weather. Let engine run smoothly before
each change. Operate with choke in “Run” position.
NOTE: If engine still fails to start after 3 pulls, check for
proper oil level in crankcase.This unit is equipped with a
low oil device which prevents the engine from being
started. See engine manual.
Refer to the engine owner’s manual for complete
starting instructions.
Connecting Electrical Loads
• Let engine stabilize and warm up for a few minutes after
starting.
• Plug in and turn on the desired 120 and/or 240 Volt AC,
single phase, 60 Hz electrical loads.
• Do Not connect 240 Volt loads to the 120 Volt duplex
receptacles.
• Do Not connect 3–phase loads to the generator.
• Do Not connect 50 Hz loads to the generator.
• DO NOT OVERLOAD THE GENERATOR. See
“Don’t Overload the Generator” on page 8.
Stopping the Engine
• Unplug all electrical loads from generator panel
receptacles. Never start or stop engine with electrical
devices plugged in and turned ON.
• Let engine run at no-load for several minutes to stabilize
the internal temperatures of engine and generator.
• Move rocker switch to “Off” position.
• Move the fuel valve to the “Off” position.
Fuel Valve is shown
in the On position

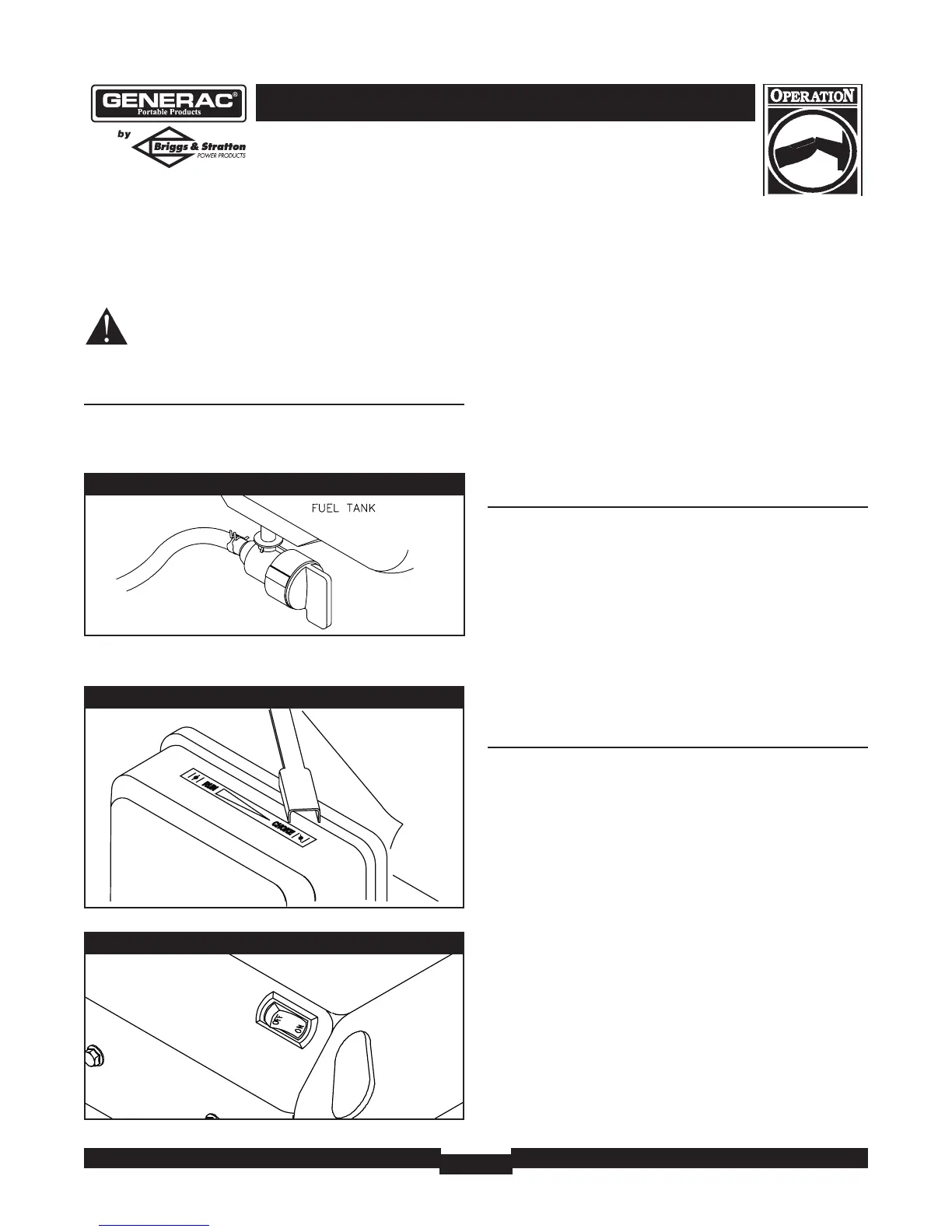

Figure 3 — Fuel Valve
Figure 4 — Choke Lever
Figure 5 — Rocker Switch
