Generac Power Systems QuietSource 005028-0 - Section 7 - Electrical Data; Wiring Diagram - 2.5 L Engine (15 kW & 20 kW units); Control Panel Legend; Customer Connection & Alternator Legend

Generac Power Systems QuietSource 005028-0
60 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
30
Section 7 - Electrical Data
Liquid-cooled 15, 20 and 25 kW Generators

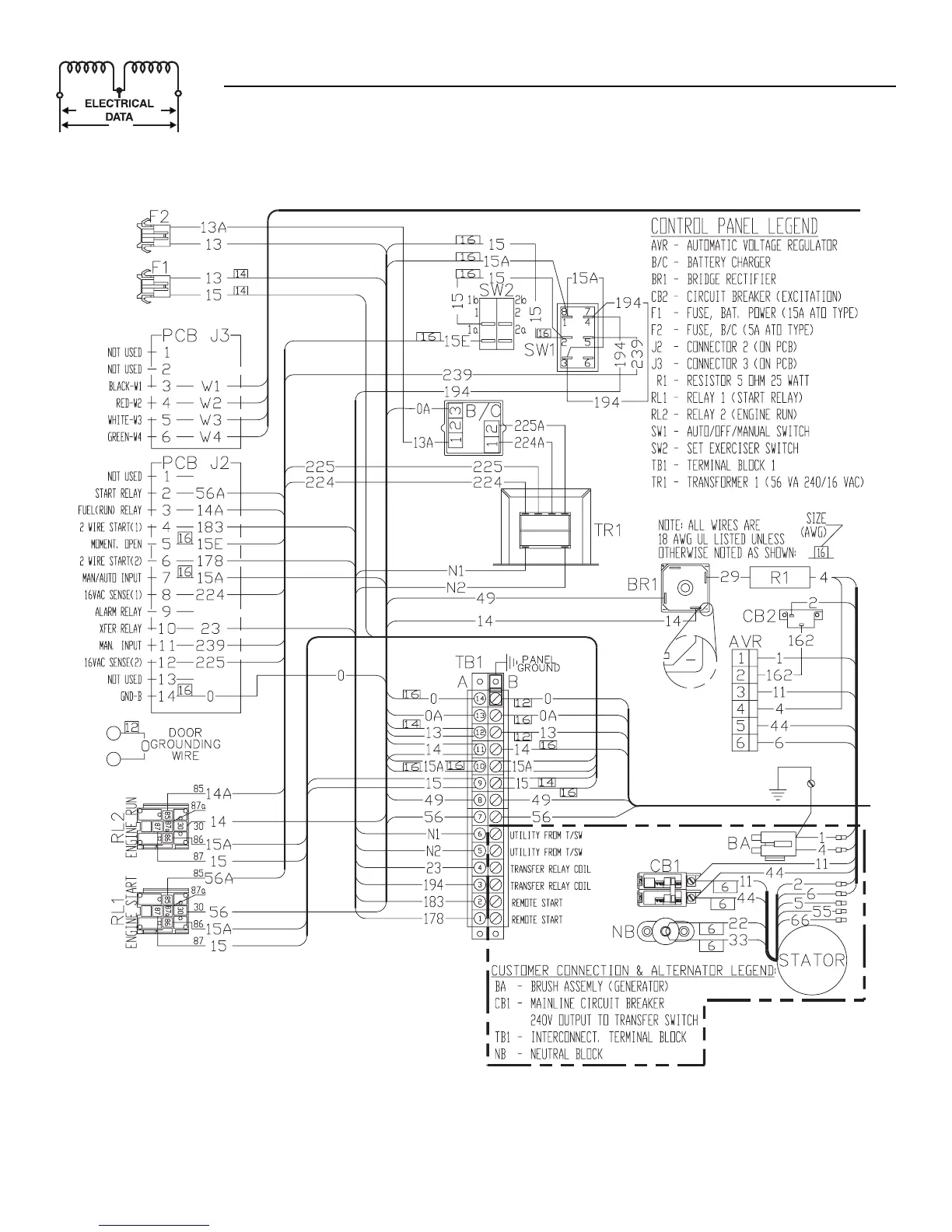

Wiring Diagram — 2.5L Engine (15kW & 20kW units) —Drawing No. 0F2183-B
