Generac Power Systems QuietSource 005028-0

ITEM PART NO. QTY. DESCRIPTION
1 0F2912 1 PIPE MUFFLER OUT
2 0F2869 1 PIPE EXHAUST 2.5L FORD
3 0F2823 1 MUFFLER 2.5L FORD
4 036434 2 BOLT U 5/16-18 X 2.09
5 036449 2 SADDLE 2 INCH
6 022129 6 WASHER LOCK M8-5/16
7 022259 4 NUT HEX 5/16-18 STEEL
8 0E0170A 1 EXHAUST BLANKET 800MM
9 044149 1 GASKET EXHAUST RING
10 0E8816 1 EXHAUST FLANGE 2" PIPE
11 0F2925 2 STRAP MUFFLER
12 0F2926 1 BRACKET, MUFFLER
ITEM PART NO. QTY. DESCRIPTION
13 042568 4 SCREW HHC M6-1.0 X 20 G8.8
14 022097 4 WASHER LOCK M6-1/4
15 022473 8 WASHER FLAT 1/4-M6 ZINC
16 049813 4 NUT HEX M6 X 1.0 G8 YEL CHR
17 039253 2 SCREW HHC M8-1.25 X 20 G8.8
18 045771 2 NUT HEX M8-1.25 G8 YEL CHR
19 0A4010 1 SCREW HHC M8-1.25 X 60 G8.8 FT
20 022145 5 WASHER FLAT 5/16-M8 ZINC
21 022131 2 WASHER FLAT 3/8-M10 ZINC
22 085917 2 WASHER LOCK 3/8 SS
23 0D2611 2 SCREW HHC 3/8-16 X 1-3/4 SS
24 052858 1 NUT TOP LOCK FL M8-1.25
17
19
20
11
7
6
4
5
7
20
3
6
5
2
12
4
20
18
6
15
13
24
11
1
16
15
14
9
8
22
21
10
23
52
Section 8 - Exploded Views and Parts Lists
Liquid-cooled 15, 20 and 25 kW Generators

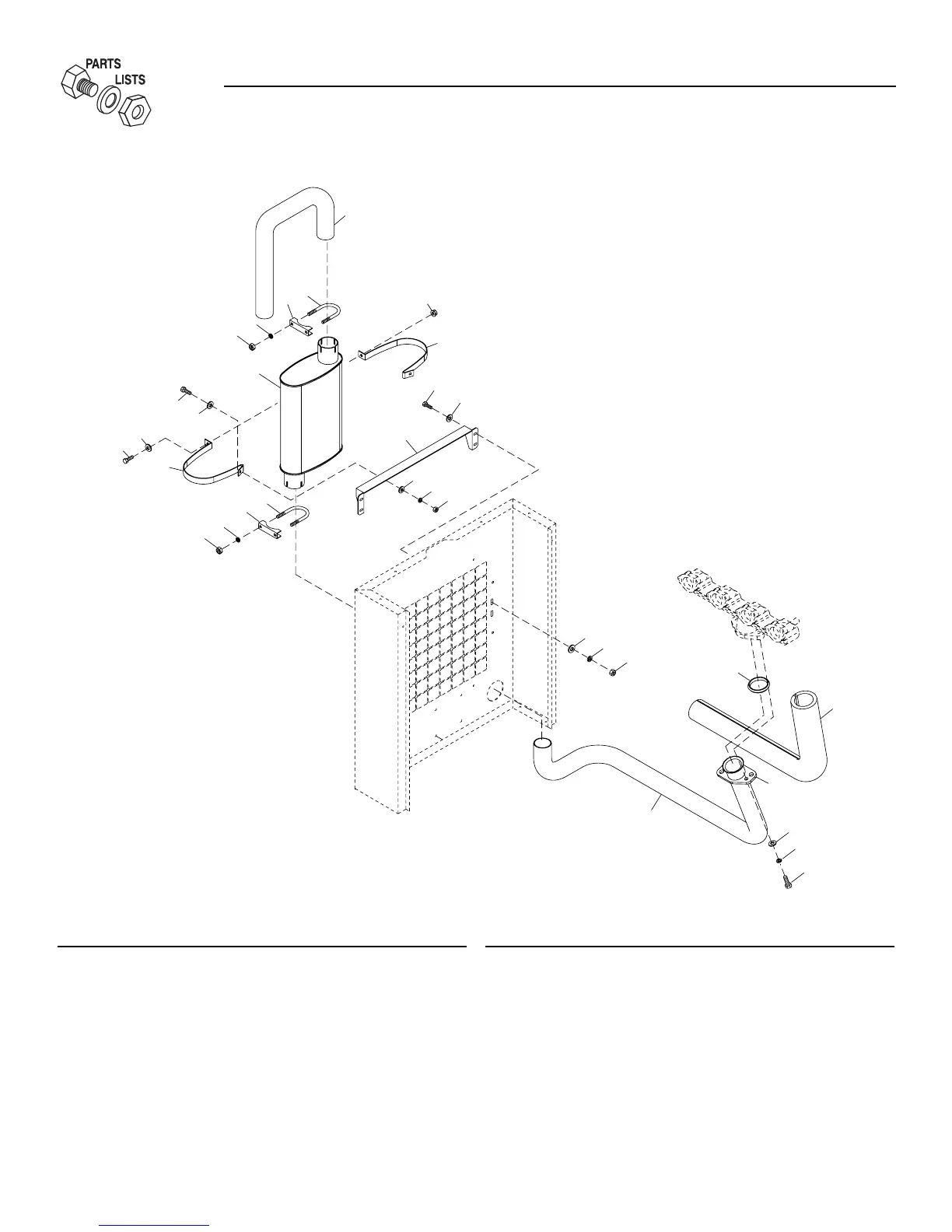

Muffler — Drawing No. 0F2930-C
