Generac Power Systems QuietSource 005028-0

54
ITEM PART NO. QTY. DESCRIPTION
1 0E9769 REF SUPPORT RADIATOR 2.5L FORD
0F0779 REF SUPPORT RADIATOR 2.5L AL
0E9769A REF SUPPORT RADIATOR 2.5L FORD
ALM
2 0E9837 1 RADIATOR 2.5L FORD
3 0F0123 1 VENTURI 16" FAN 2.5L FORD
4 0F0118 1 GUARD FAN 2.5L FORD
5 099502 4 CLAMP HOSE #24 B1.06-2.00
6 0C2454 REF. SCREW THF M6-1 X 16 N WA Z/JS
7 052250 2 TAPE FOAM 1 X 1(21" LG)
8 022097 8 WASHER LOCK M6-1/4
9 022473 12 WASHER FLAT 1/4 ZINC
10 022127 8 NUT HEX 1/4-20 STEEL
11 046627 1 CAP RADIATOR
12 060035 4 SPACER .41 X .75 X .87 ST/ZNC
14 0F0127 1 HOSE, UPPER RADIATOR 174MM
TAL
ITEM PART NO. QTY. DESCRIPTION
15 0E9833 1 HOSE, 2.5L FORD LOWER
RADIATOR
16 035461 1 BARBED STR 1/4 NPT X 3/8
17 069860C 1 HOSE OIL DRAIN ASSY 21"
18 0A7275 4 FOAM 1.5 X 1 ADHESIVE BACKING
(21.5" LG)
19 031669 4 BOLT CARR 1/4-20 X 1-3/4 JS500
20 065852 1 SPRING CLIP HOLDER .37-.62
21 0A2111 1 SCREW SWAGE 10-32 X 5/16 Z/YC
24 0C2454 6 SCREW TH-FRM M6-1 X 16 N WA
Z/JS
25 022287 4 SCREW HHC 1/4-20 X 3/4 G5
26 077992 REF NUT HEX LOCK M6-1.0 SS NY INS
27 050275 2 DECAL WARNING-FAN
25
6
19
26
17
8
9
10
27
20
21
WARNING
Can cause severe injury or death.
Rotating fan
050275
8
5
1
12
7
9
18
18
16
7
9
11
2
WATER INLET
TO BASE OF
TUBE (ON BLOCK)
ADAPTER
TO THERMOSTAT
5
5
15
10
5
14
24
4
24
3
27
Section 8 - Exploded Views and Parts Lists
Liquid-cooled 15, 20 and 25 kW Generators

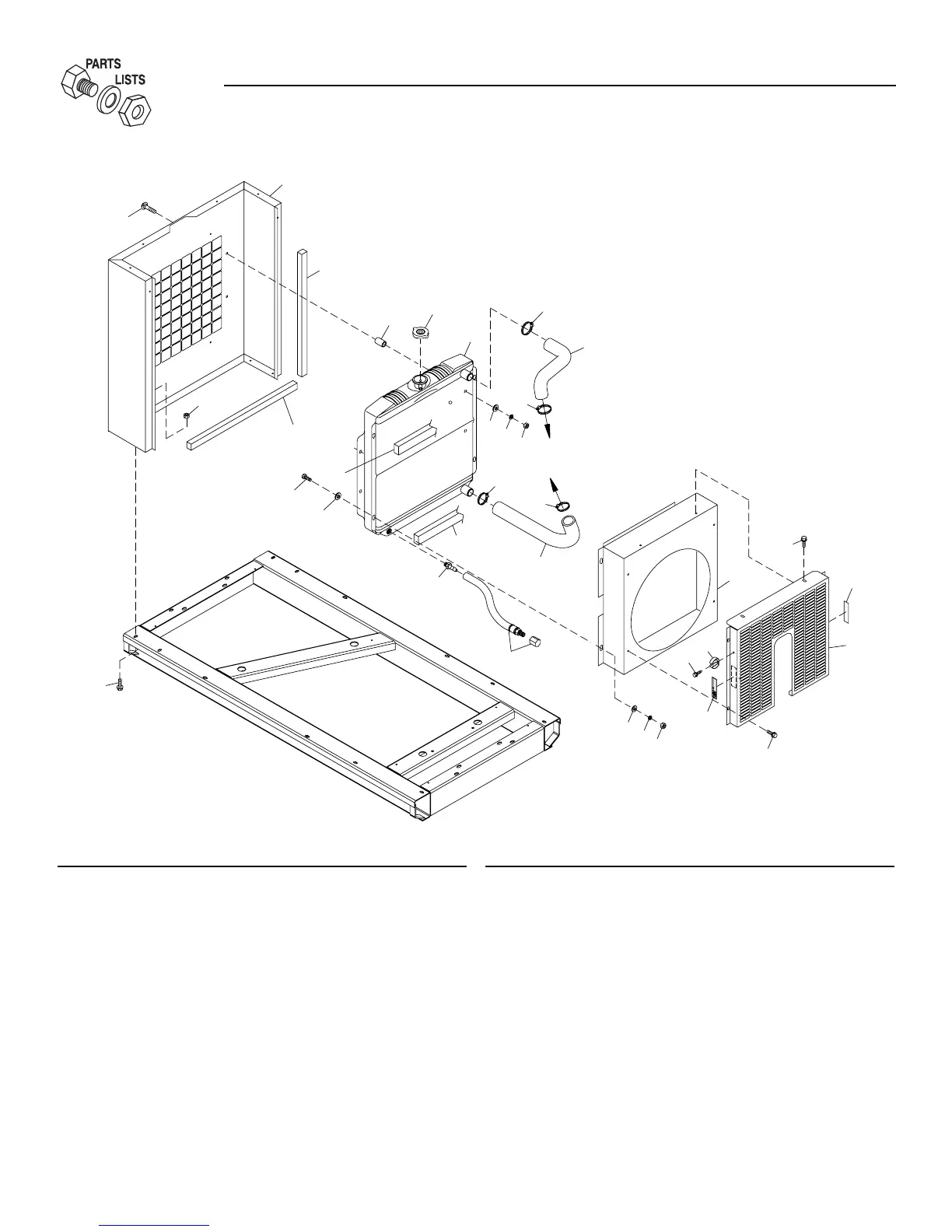

Radiator — Drawing No. 0E9965-F
