Maintenance
36 Owner’s Manual for Stationary Diesel Generators
Installation
Always connect the positive battery cable first. If the positive cable should contact ground with the
negative cable installed, the resulting sparks may cause a battery explosion which could result in seri-
ous injury.
1. Install rubber protective cover over battery posi-
tive (+) terminal. See A of Figure 5-12.
2. Grasp battery strap next to battery positive (+)
terminal, and lift battery.
3. When battery tilts sideways, insert into opening.
See B of Figure 5-12.
4. Return battery to the horizontal position while
sliding it onto battery tray.
5. Tighten two screws with nylon washers to
secure hold-down clamp to battery tray.
6. Remove rubber protective cover from battery
positive (+) terminal.
7. Install battery positive cable (red) to battery
positive (+) terminal.
8. Install battery negative cable (black) to battery
negative (-) terminal.

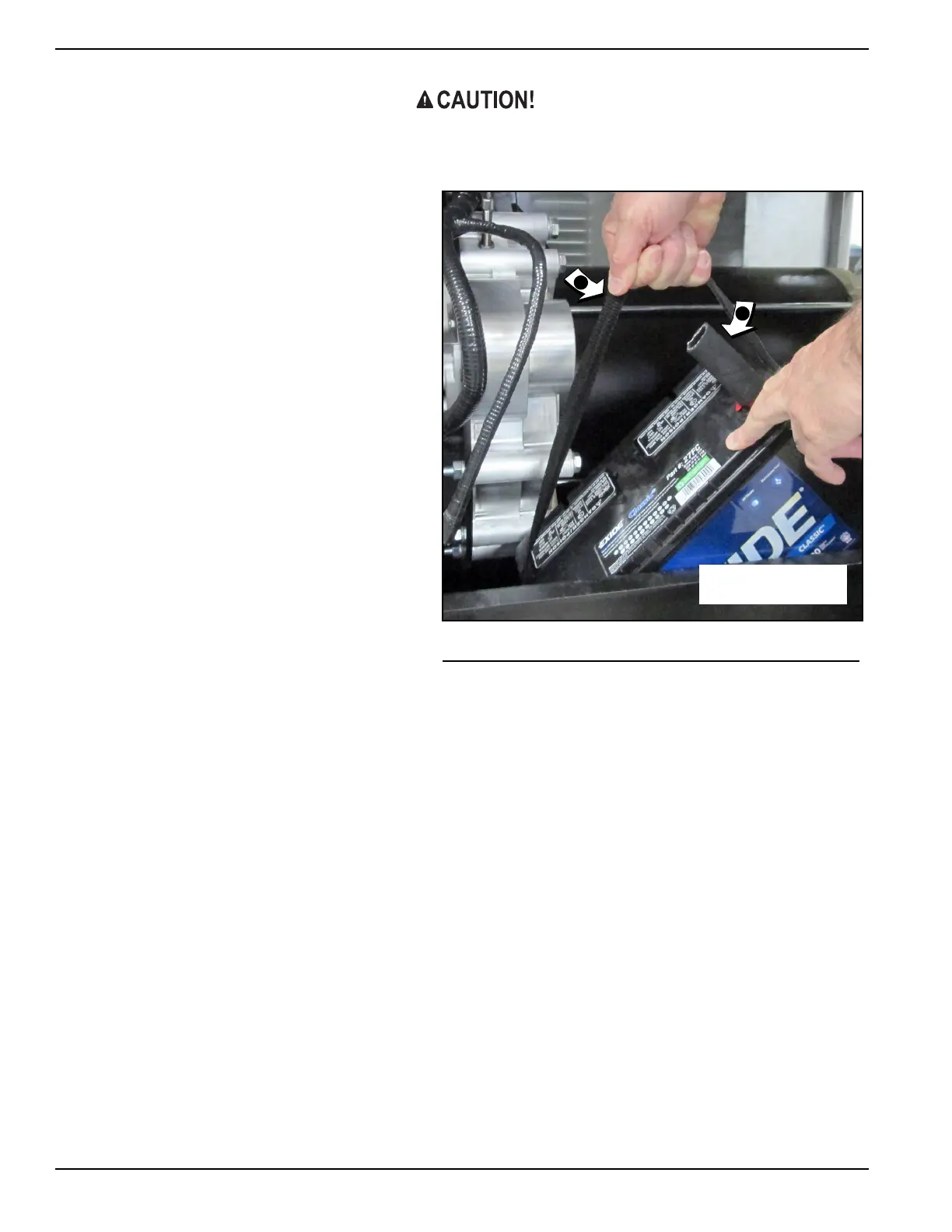

Figure 5-12. Install Battery (2.3L Models)
A = Protective Cover
B = Battery Strap
A
B
