Generac Power Systems RS5500 User Manual

Section 7 Electrical Data
90 Diagnostic Repair Manual

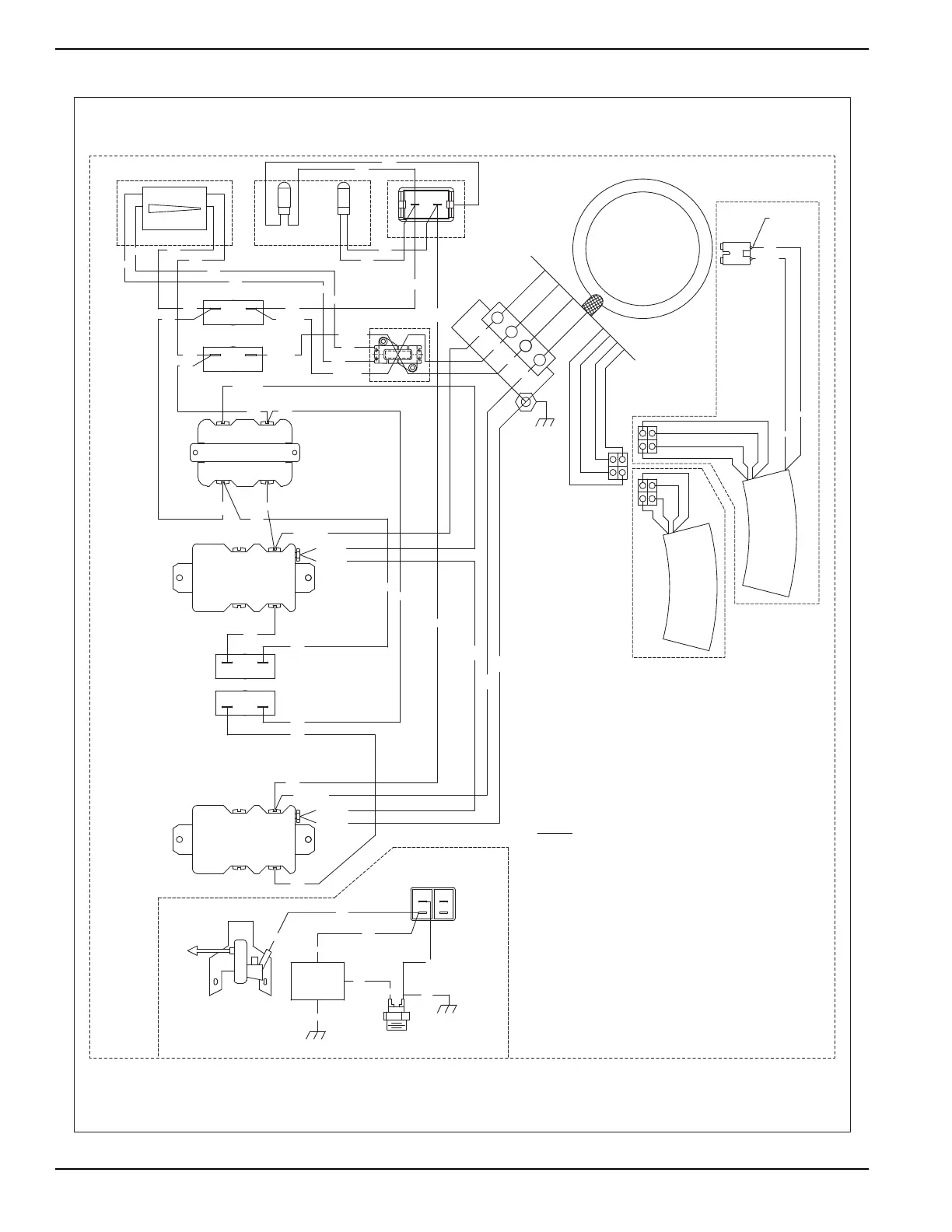

Wiring Diagram and Electrical Schematic, XG6500 Drawing No. 0H2780-F
WIRING - DIAGRAM
GP/XG5000-GP/XG8000
DRAWING #: 0H2780
REVISION: F
DATE: 8/21/09
CLOSEST TO
BEARING
FOR CAPACITOR EXCITATION
TYPE ALTERNATOR
FOR BRUSH TYPE
ALTERNATOR
RCT A
30A NEMA L14-30R
RCT C
20A GFCI
NEMA 5-20R
RCT B
20A GFCI
NEMA 5-20R
BLK
RED
RED
RED
RED
BLK
BLK
BLK
PBAR
WHITE
3
HOTHOT
1
WHITE
2
RED
22(WHT)
5
4
WHT
GRN/YEL
GRN/YEL
HOT
3
WHITE WHITE
HOT
BLK
1
2
CB 4 20A
RED
RED
CB 3 20A
BLK
4
5
GRN/YEL
GRN/YEL
WHT
RED
BLK
GRN/
YEL
YEL
GRN/
(WHT)
22
CAP
11(RED)
44(BLK)
11(RED)
WHT
BLK
X
BLK
W
CB 2
G
GRN/YEL
RED
Y
33(WHT)
RED
RED
BLK
CB 1
RED
BLK
44(BLK)
BLK
BLK
RED
LED
44
33
L2
11
WHT
ICT
BLU
BLK
BLK
RED
BLK
HM
L1
TB
GRD
R2
R1
22
C1
STATOR
RED(+)
AVR
WHT
RED(+)
BA
WHT
SP
BLK
MODULE
SHUTDOWN
LOW OIL
GRN
BLK
BLK
LOP
BLK
WHT
IM
WHT
WHT
ENGINE WIRING
SW1
WHT
LEGEND:
AVR - AUTOMATIC VOLTAGE REGULATOR
BA - BRUSH ASSEMBLY
C1 - AVR OR CAP CONNECTOR
CAP - CAPACITOR
CB 1 - *PUSH BUTTON CIRCUIT BREAKER
CB 2 - *PUSH BUTTON CIRCUIT BREAKER
CB 3 - 20AMP PUSH BUTTON CIRCUIT BREAKER
CB 4 - 20AMP PUSH BUTTON CIRCUIT BREAKER
IM - IGNITION MODULE
ICT - IDLE CURRENT TRANSFORMER (IF EQUIPPED)
HM - HOUR METER (IF EQUIPPED)
LED - PANEL ILLUMINATION (IF EQUIPPED)
LOP - LOW OIL PRESSURE
PBAR - POWERBAR LOAD INDICATOR (IF EQUIPPED)
RCT A - RECEPTACLE [120/240VAC 30A NEMA L14-30R]
RCT B - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R]
RCT C - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R]
SP - SPARK PLUG
SW1 - RUN-STOP SWITCH
TB - ALTERNATOR TERMINAL BLOCK
* - 5kW AND 5.5kW = 25AMP; 6.5kW, 7.0kW = 30AMP
