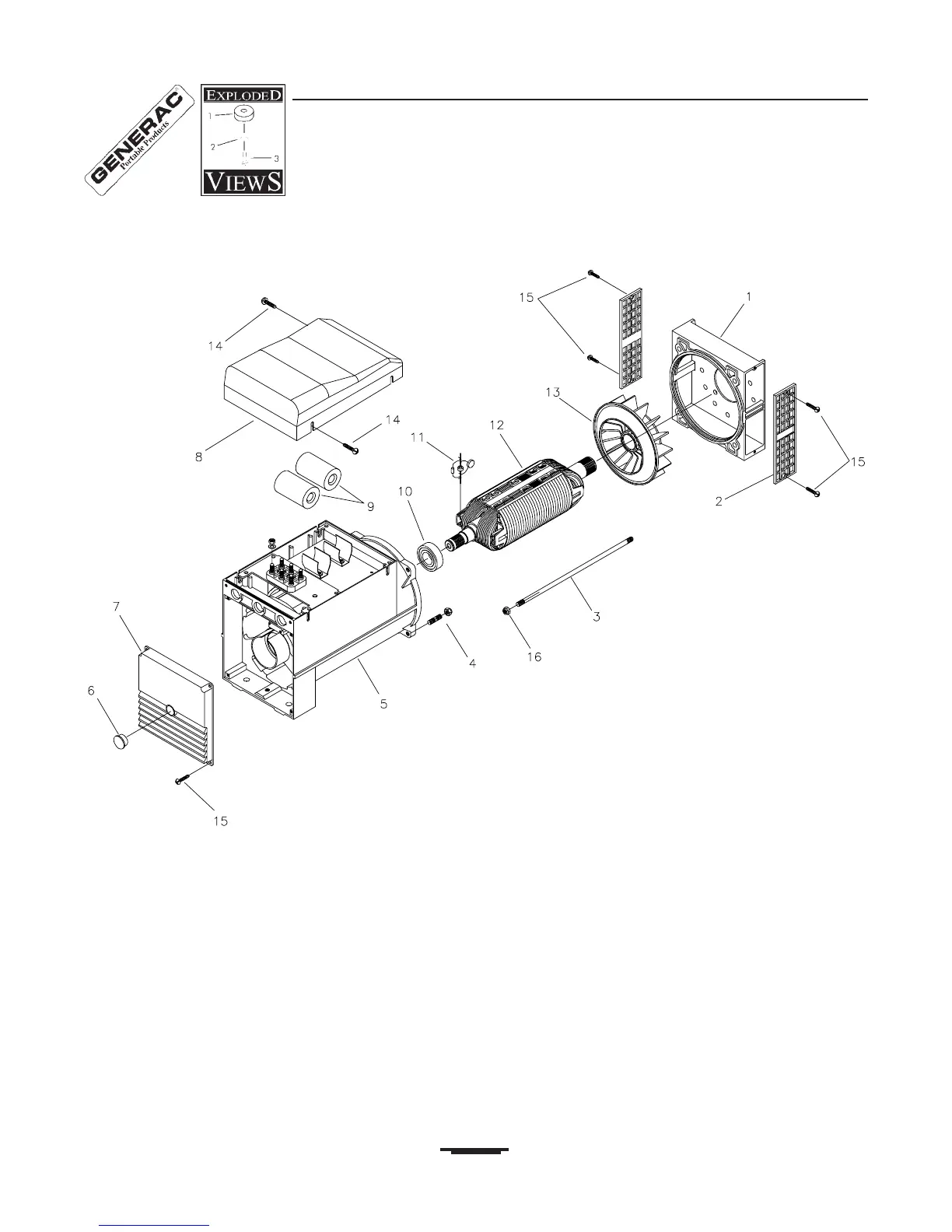

ALTERNATOR EXPLODED VIEW AND PARTS LIST
Item Part # Qty Description
1 B4906 1 SHIELD, Front
2 B4907 2 GRID, Front
3 B4908 1 BOLT, Shaft Stay
4 B4909 4 STAY BOLT, M8 x 30
5 B4910 1 ASSEMBLY, Housing
6 B4911 1 CAP
7 B4912 1 COVER, Blind End
8 B4913 1 COVER, Top Black
9 B4914 2 CAPACITOR, 25mF 450V
Item Part # Qty Description
10 B4915 1 BEARING, 62052RS C3
11 B4916 1 CAPACITOR, Diode + Varistor
+ EMC
12 B4917 1 ROTOR, (Includes Item 13)
13 B4918 1 FAN
14 B4919 2 SCREW, M6 - 1.0 x 10mm
15 B4920 8 SCREW, M5 - 0.8 x 10mm
16 49820 1 LOCK NUT, M8 - 1.25
