Generac Portable Products SVP5000 Generator
4
120 Volt AC, 20 Amp Duplex Receptacle May be
used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
120 Volt AC, 30 Amp Receptacle May be used to
supply electrical power for the operation of 120 Volt
AC, 30 Amp, single phase, 60 Hz electrical lighting,
appliance, tool and motor loads.
120/240 Volt AC, 20 Amp Receptacle May be
used to supply electrical power for the operation of
120 and/or 240 Volt AC, 20 Amp, single phase, 60 Hz
electrical lighting, appliance, tool and motor loads.
Circuit Breakers (AC) Each receptacle is provided
with a circuit breaker to protect the generator against
electrical overload. Breakers are "push to reset" type.
Fuel Shut Off Controls fuel supply to engine.
Fuel Tank Capacity of 5 U.S. gallons (19 liters).
Grounding Wing Nut Provides a tie-point for
connecting the generator frame to earth ground.
Oil Fill Fill engine with oil here. See page 5 for oil
requirements.
KNOW YOUR GENERATOR
Read this owners manual and safety rules before operating your generator.
Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.

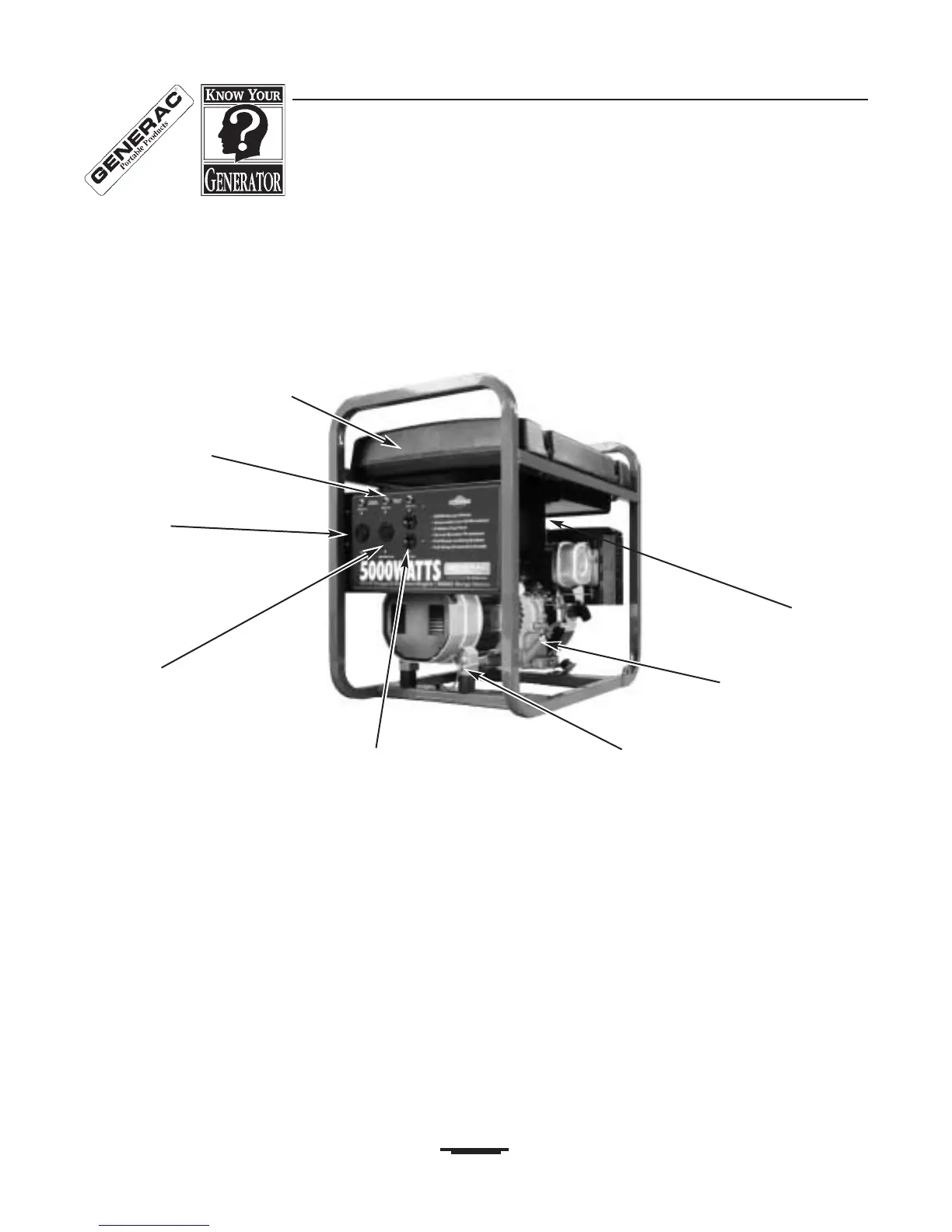

Circuit Breakers (AC)
Fuel Tank
120 Volt AC, 30 Amp
Receptacle
120/240 Volt AC, 20 Amp
Receptacle
120 Volt AC, 20 Amp
Duplex Receptacles
Grounding Wing Nut
Fuel ShutOff
Valve
Oil Fill
