6
8. Circuit Breakers (AC) – The 30 Amp receptacle is protected
with a pair of push-to-reset or a 2 pole toggle circuit breaker(s)
to protect the generator against electrical overload.
9. PowerBar – Indicates the amount of power being used from
the generator; each section is approximately 25%
10. Hourmeter – Provides operating hours for Service Intervals.
11. Battery Charger Input (Electric Start Models) – This
receptacle allows the capability to recharge the 12 VDC engine
starting battery with the 12 Volt Adaptor Plug Charger. The
battery is protected by a 1.50 Amp in-line fuse which is inside
the control panel.
12. Fuel Tank – Tank holds 9 U.S. gallons of fuel.
13. Fuel Gauge – Shows fuel level in tank.
14. Handles – Pivot and retract for storage. Press the spring-
loaded button to move handles.
15. Oil Fill – Check oil level and add oil here.
16. Grounding Lug – Ground the generator to an approved earth
ground here. See "Grounding the Generator" for details.
17. Muffler – Includes the spark arrestor and quiets the engine.
18. Spark Plug Location – The spark plug ignites the Air/Fuel
Mixture (Side panel must be removed).
19. Engine Oil Filter – Filters engine oil; see Section 3.1 for the
proper service intervals.
20. Air Filter – Filters intake air as it is drawn into the engine.
21. Oil Drain – Drain valve to remove used oil from the engine
crankcase.
22. Recoil Starter – Use to start engine manually.
23. Roll Over Valve - Passes fuel vapors to the engine.
24. Recovery Hose - Install between roll over valve and the
engine.
25. Carbon Canister - Absorbs fuel tank vapors (CARB).

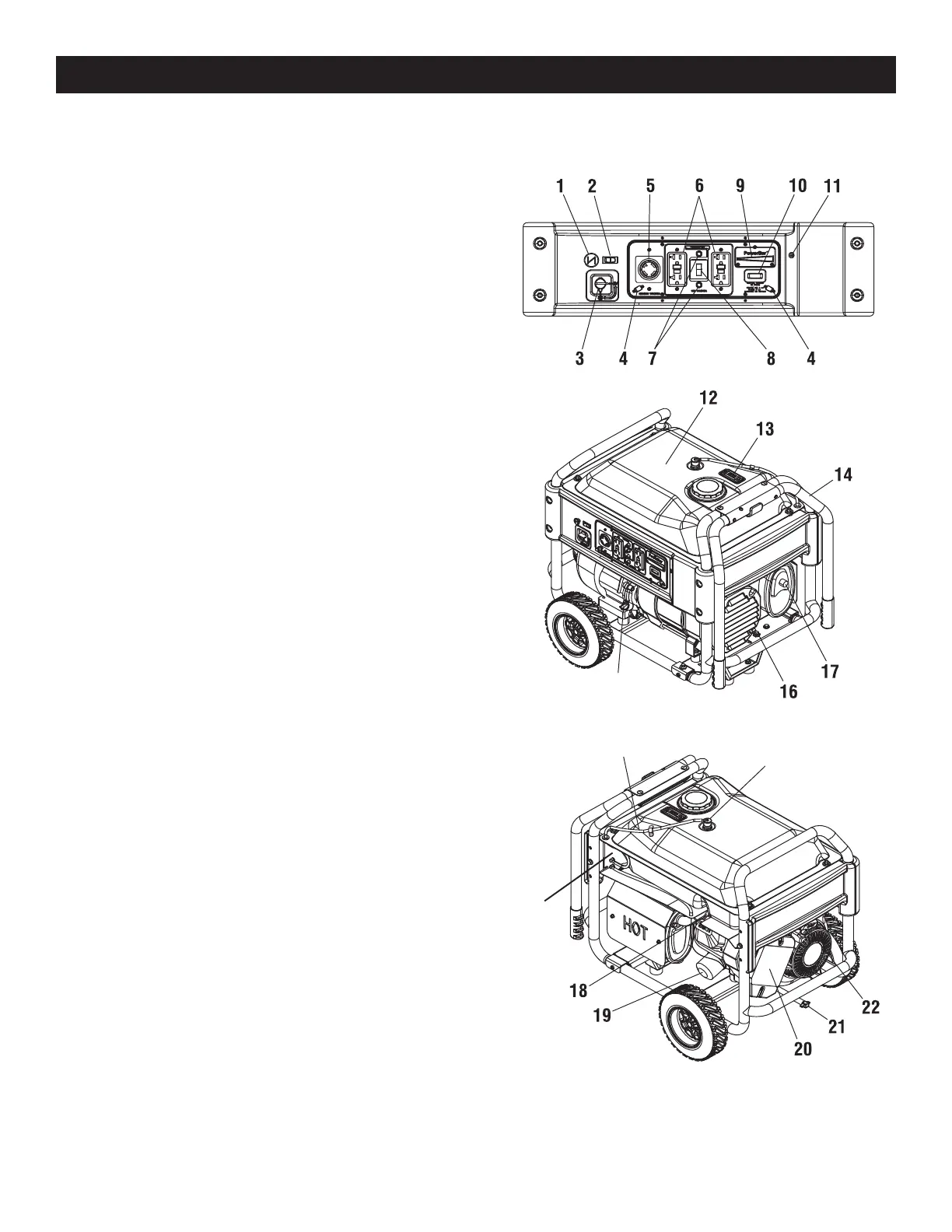

Figure 3 – Generator Locations
15
23
24
25
Operation
