2.4M SERIES 1241 ANTENNA 4096-859
ASSEMBLY MANUAL REVISION A
Prodelin Corporation Page 7 8/17/2012

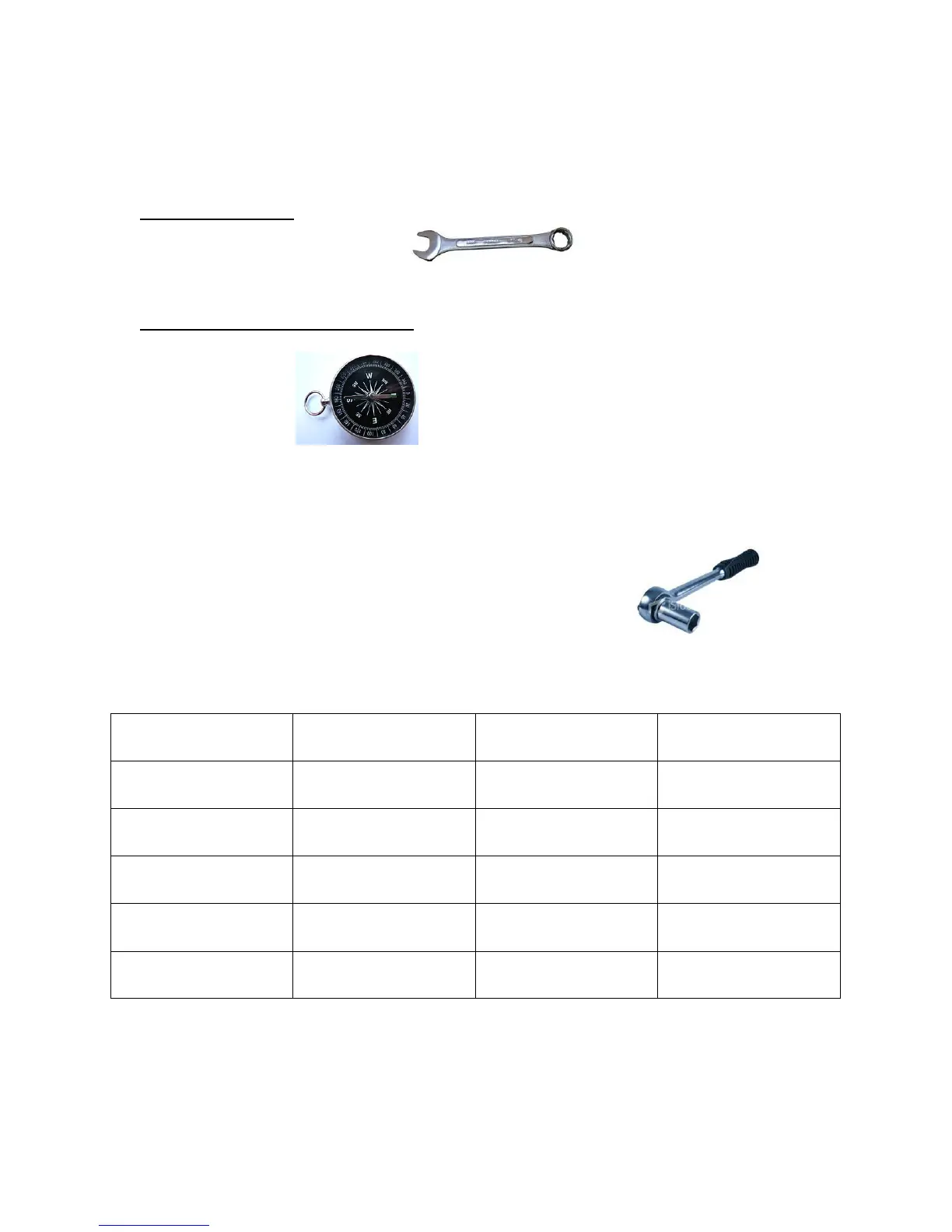

1.5. Mechanical Installation Tools
Required Tools:
• Wrenches (see Table 1)
Other Recommended Tools:
• Compass
• Inclinometer
• Adjustable wrench 10”
• 3/8” drive Ratchet with Sockets and 6” extension (see
Table 1)
Table 1: Wrench and Socket Sizes Required
HARDWARE SIZE SAE WRENCH SIZE
METRIC WRENCH
SIZE
MAX RECOMMENDED
TORQUE (±10%)
5/16” 1/2” 13mm
15 ft-lbs
(20.3 n-m)
3/8” 9/16” 14mm
20 ft-lbs
(27.1 n-m)
1/2” 3/4” 20mm
45ft-lbs
(61 n-m)
3/4” 1-1/8” 24mm
145ft-lbs
(196.6 n-m)
1” 1-1/2” 38mm
220 ft-lbs
(298.3 n-m)
NOTE: The Minimum Torque applied should not be less than 10% of maximum
recommended torque.
