2.4M SERIES 1241 ANTENNA 4096-859
ASSEMBLY MANUAL REVISION A
Prodelin Corporation Page 9 8/17/2012
2. ANTENNA INSTALLATION

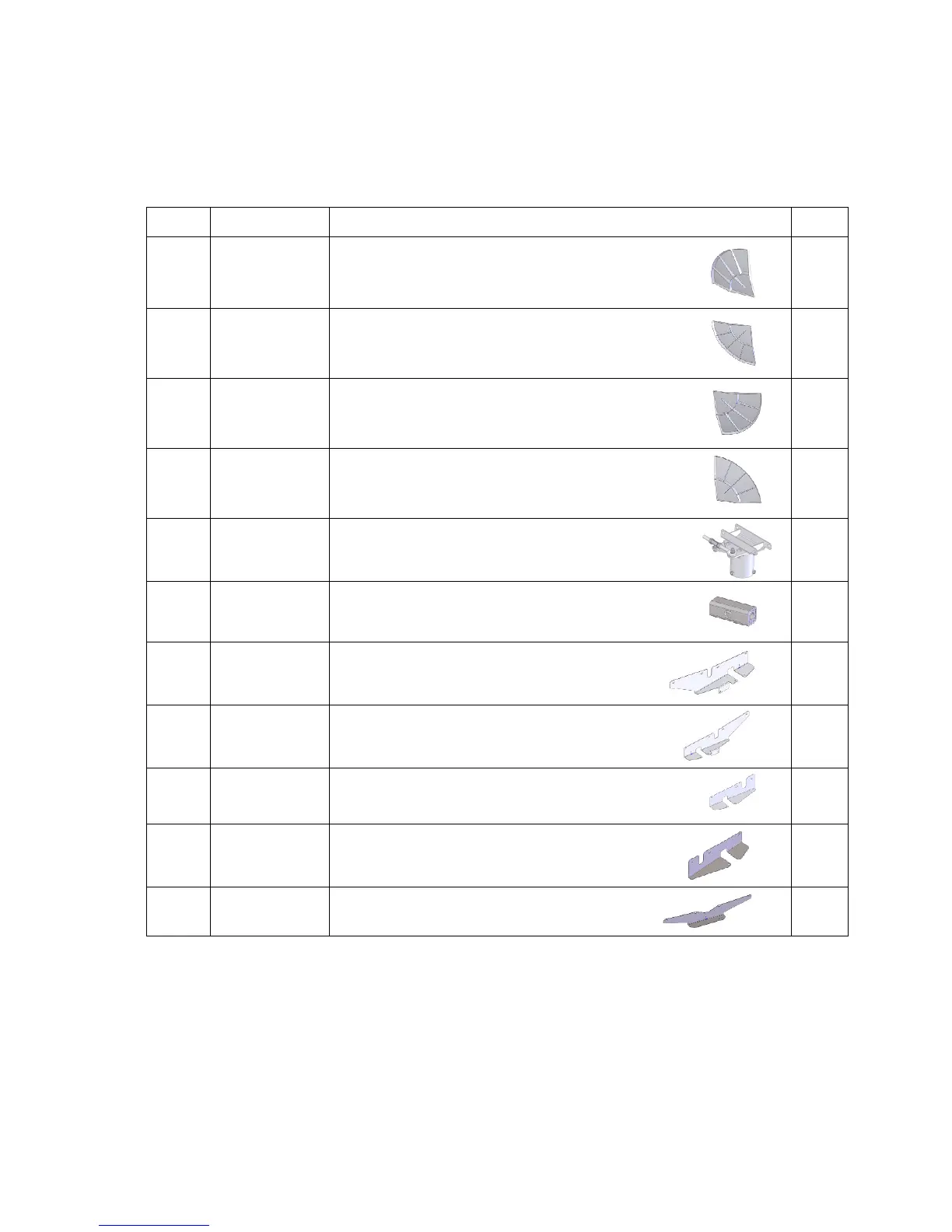

Table 2: Reflector and Mount Parts List
ITEM PART NO. DESCRIPTION QTY
1 0179-447
Reflector, 2.4m RT 4pc Quad #1
1
2 0179-448
Reflector, 2.4m RT 4pc Quad #2
1
3 0179-444
Reflector, 2.4m RT 4pc Quad #3
1
4 0179-445
Reflector, 2.4m RT 4pc Quad #4
1
5 0185-3607
AZ / EL Positioner
1
6 0168-415
Elevation Adjustment Block
1
7 0211-1265
Reflector BTM Bracket LH
1
8 0211-1266
Reflector BTM Bracket RH
1
9 0211-1267
Reflector Top Bracket LH
1
10 0211-1268
Reflector Top Bracket RH
1
11 0211-1269
Reflector Center Bracket
2
