General Dynamics 2.4M SERIES 1241 ANTENNA User Manual

2.4M SERIES 1241 ANTENNA 4096-859
ASSEMBLY MANUAL REVISION A
Prodelin Corporation Page 10 8/17/2012

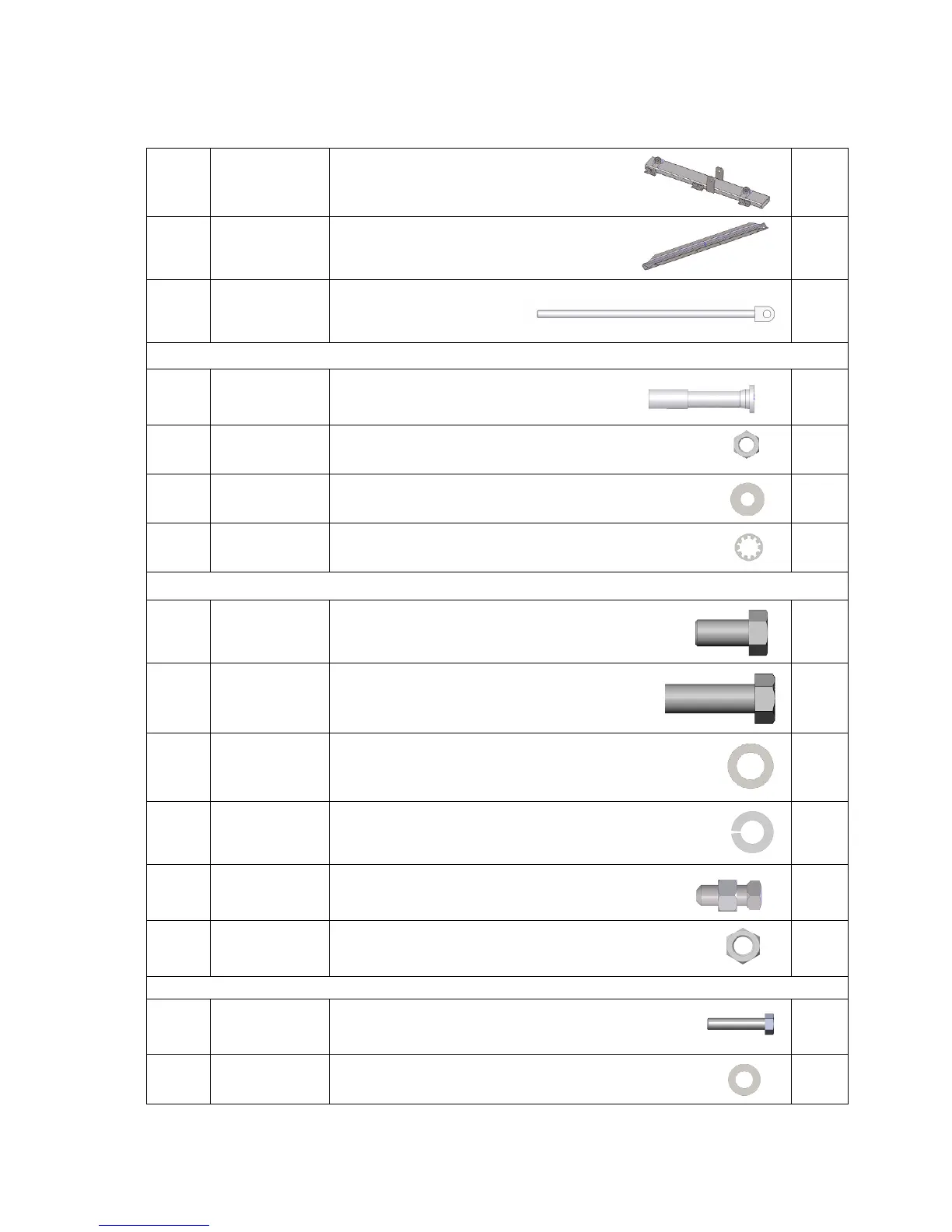

Parts List Continued
12 0490-1010
2.4m 4pc Reflector Support Weldment
1
13 0247-445
2.4m 4pc Crossarm
2
14 0490-1014
Weldment, El Rod – 2.4m
1
0200-948 Reflector Spacer Kit
15 0159-265
Reflector Spacer #65
4
16 8110-007
Nut, 7/8-9 Hex Jam
4
17 8201-052
Flat washer, 7/8 USS STD
4
18 8202-068
Lock washer, 7/8 Internal Tooth
4
0200-1865 AZ / EL Hardware Kit
19 8036-016
Bolt, 1-8 x 2.00 Hex
2
20 8036-024
Bolt, 1-8 x 3.00 Hex
3
21 8201-049
Flat Washer, 1” SAE STD
6
22 8202-046
Lock washer 1” STD
4
23 8317-106
Screw Assy, 5/8-11 x 1.50
6
24 8107-007
Nut, 1-8 Hex
5
0200-1828 Reflector Seam Hardware Kit
25 8031-012 Bolt, 5/16-18 x 1.50 Hex 24
26 8201-071
Flat washer, 5/16” SAE Narrow
48
