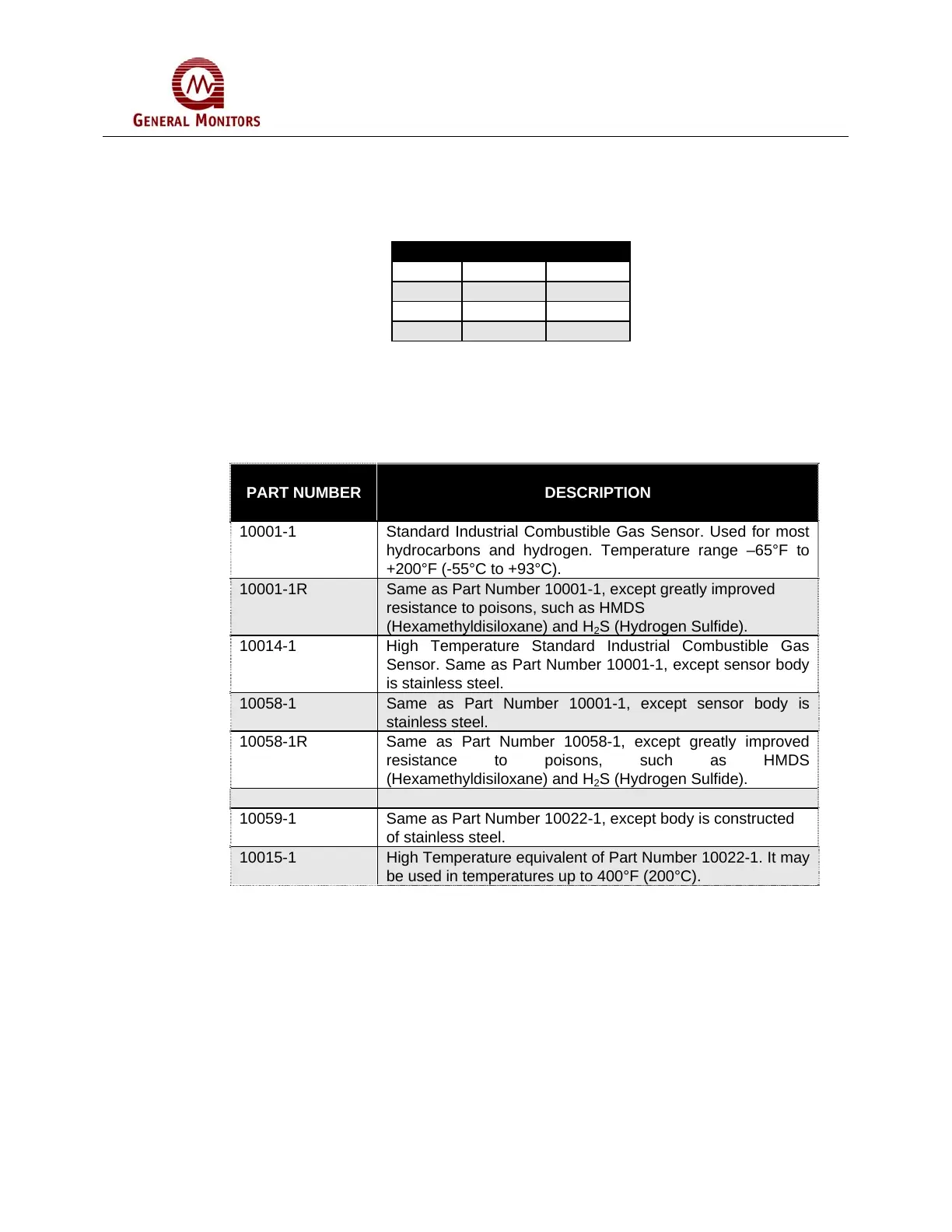

Model 610A
35
7.5 Cable Requirements
3-wire maximum cable length between controller and sensor assembly with one-way
resistance of 20 Ohms (total 40 Ohms loop):
AWG METERS FEET
20 580 1900
18 910 3000
16 1460 4800
14 2320 7600
Table 10: Maximum Cable Lengths
7.6 Sensors
The following is a list of GMI sensors available for use with the Model 610A Controller:
PART NUMBER DESCRIPTION
10001-1 Standard Industrial Combustible Gas Sensor. Used for most
hydrocarbons and hydrogen. Temperature range –65°F to
+200°F (-55°C to +93°C).
10001-1R Same as Part Number 10001-1, except greatly improved
resistance to poisons, such as HMDS
(Hexamethyldisiloxane) and H
2
S (Hydrogen Sulfide).
10014-1 High Temperature Standard Industrial Combustible Gas
Sensor. Same as Part Number 10001-1, except sensor body
is stainless steel.
10058-1 Same as Part Number 10001-1, except sensor body is
stainless steel.
10058-1R Same as Part Number 10058-1, except greatly improved
resistance to poisons, such as HMDS
(Hexamethyldisiloxane) and H
2
S (Hydrogen Sulfide).
10022-1 Similar to Part Number 10001-1, except PTB approved.
10059-1 Same as Part Number 10022-1, except body is constructed
of stainless steel.
10015-1 High Temperature equivalent of Part Number 10022-1. It may
be used in temperatures up to 400°F (200°C).
Table 11: GMI Sensors Available for 610A System
