210 ONE MAN HOLE DIGGER, FORM GOM-1061-1189, VERSION 2.0, AUTHORIZATION: DVR, PAGE: 13
right hand. Do not operate the Hole Digger with the
throttle control being controlled by the operator's left
hand. The operator should position himself on firm
footing. FIGURE 2.

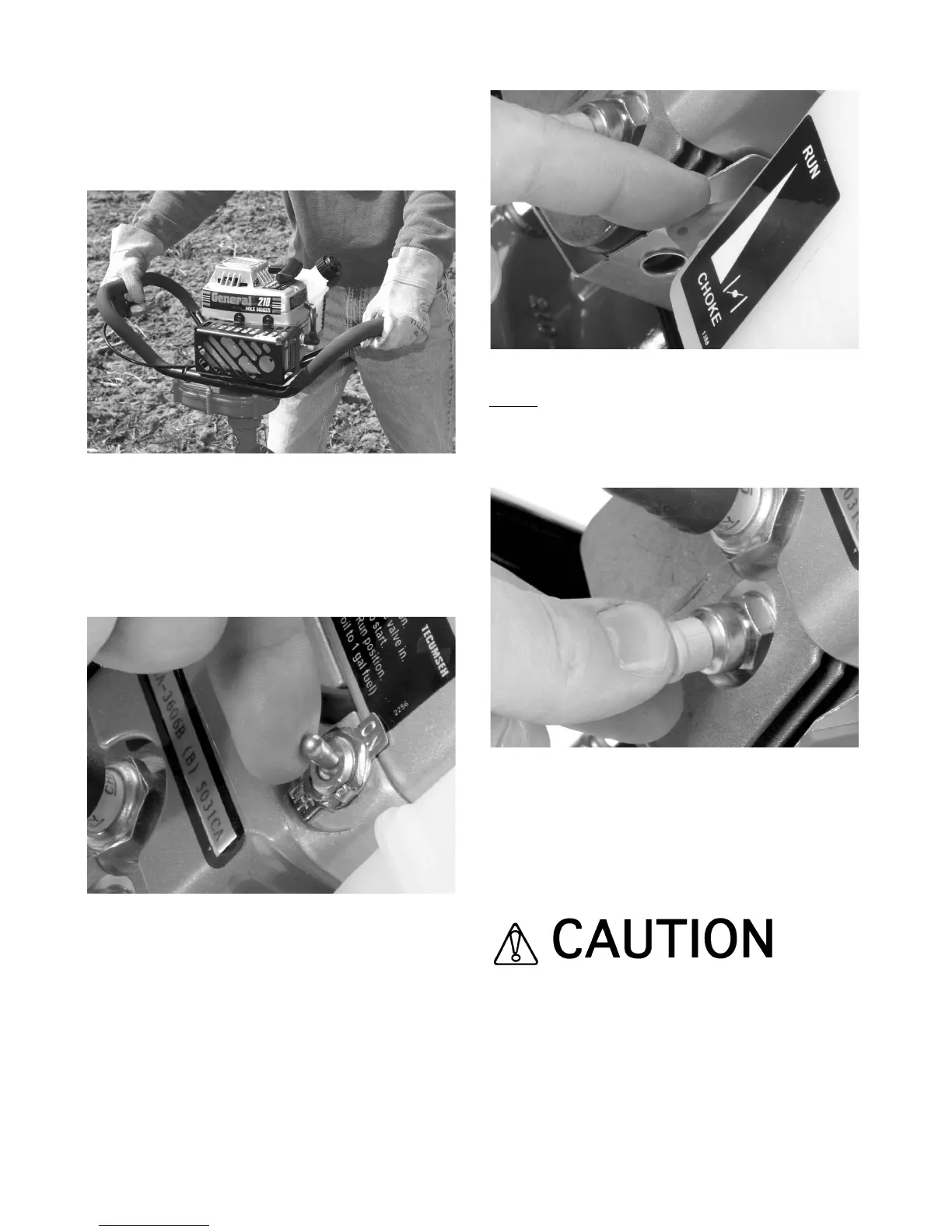

FIGURE 2
For the Tecumseh TC300 and TM049 Engines:
3) Turn the engine ignition ON/OFF switch to the ON
position. The switch is located on the engine blower
housing near the spark plug. FIGURE 3.
FIGURE 3
4) Cold start: move the choke control lever down to
deploy the engine choke mechanism. FIGURE 4. Pull
the engine throttle control to the one half open position.
This procedure is to be followed regardless of the
ambient temperature. A warm (previously run) engine
may not require choking.
FIGURE 4
NOTE:
for the Tecumseh TC300 (painted black)
engine go to step 6 below. For the Tecumseh
TM049 (painted silver) engine proceded to step 5
below.
FIGURE 5
5) For the Tecumseh TM049 (painted silver) engine,
push the compression release valve in. FIGURE 5.
Note: the compression release valve will pop out after
engine starts. ALWAYS push the compression release
valve in before starting.
Before starting the engine, always push the
compression release valve in. If the compression
release valve is not pushed, the pull force will be
substantially increased, resulting in potential
engine damage and personal injury.
