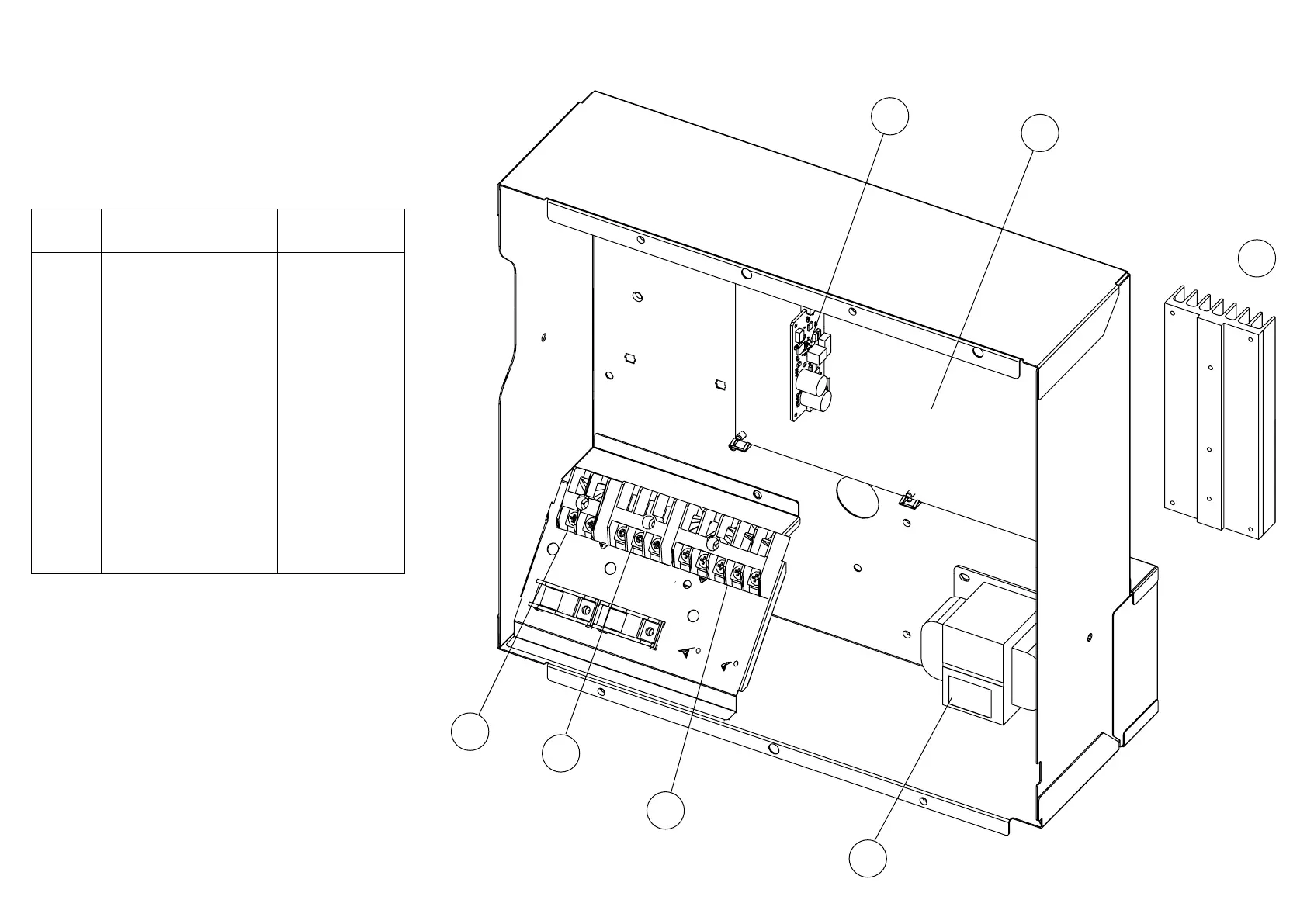

General AOHG90LRLA - Page 15

16
15 Terminal (serial)
17 Reactor assy
Ref. Description
Part number
9900568009
9900611019
14 Terminal (remote)
16 Terminal (power)
9900896003
9703873027
11 Heatsink 9382646004
12 Main PCB 9710630019
13 Communication PCB 9710019005
2017.04.05
INDOOR UNIT
ARHG90LHTA
14
12
13
17
11
15
14
