General AOHG90LRLA - Page 17

2017.03.22

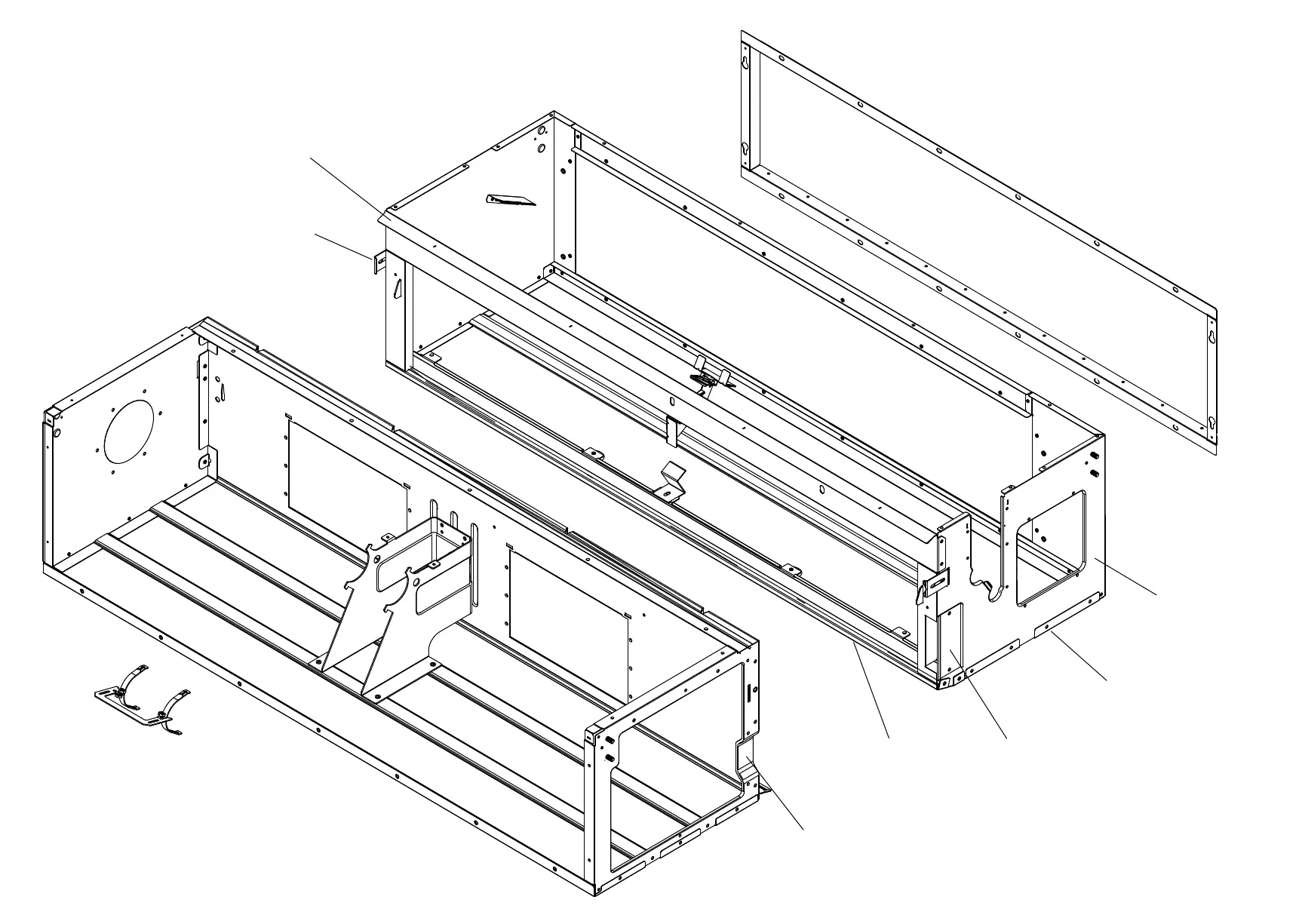

INDOOR UNIT
ARHG90LHTA
16
Side panel
LA assy
Top panel B sub assy
Top panel A
Side panel RA assy
Cable panel
Top angle
sub assy
Connect plate
Main angle
sub assy
Separator
Side panel LB
sub assy
Side panel RB
sub assy
Outlet frame assy
Outlet angle
sub assy
Outlet angle b
sub assy
