When you order parts, please make a photocopy of this page and
fill the number of the parts in the "Order" column.

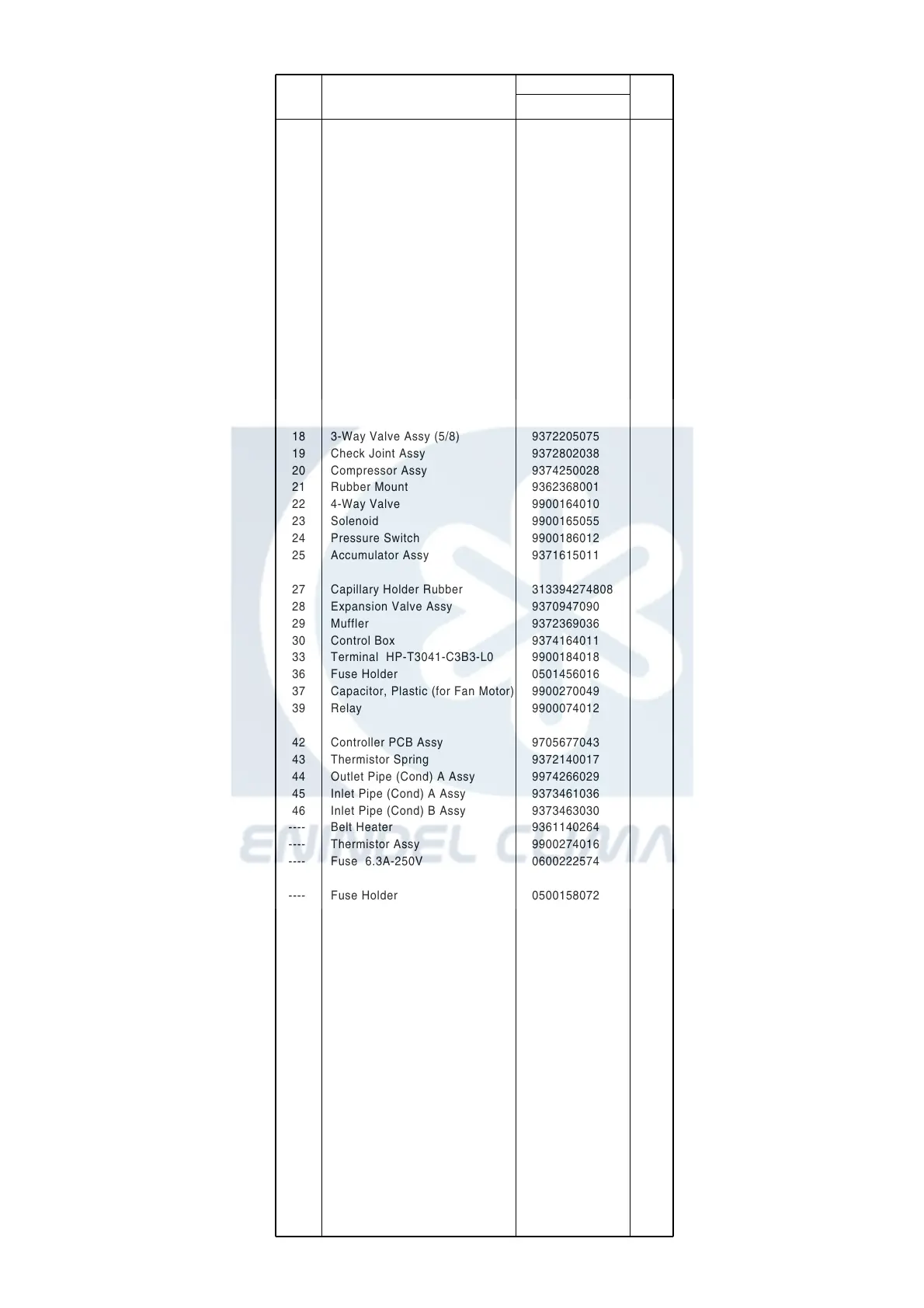

OUTDOOR UNIT
Ref.
No.
Description
Ord.
Q'ty
Part No.
AOG36UMAXL
1 Top Panel Sub Assy 9374417018
2
Front Panel
9374094042
3 Fan Guard 9374330010
4 Side Grip 9374173013
5 Service Panel Sub Assy 9374415021
6 Right Panel Sub Assy 9374416028
8 Propeller Fan Assy 9366378013
9 Motor, Induction 9601671060
10 Condenser-A Assy 9374433032
11
Condenser-B Assy
9374434039
12 Strainer Assy 9372524015
13 Separate Wall 9374135028
14 Cap Foot 9374345014
15 Base Assy 9374166022
17 3-Way Valve Assy (3/8) 9372205044
18 3-Way Valve Assy (5/8) 9372205075
19 Check Joint Assy 9372802038
20 Compressor Assy 9374250028
21 Rubber Mount 9362368001
---- Belt Heater 9361140264
22 4-Way Valve 9900164010
23 Solenoid 9900165055
24 Pressure Switch 9900186012
42 Controller PCB Assy 9705677043
43
44
Thermistor Spring 9372140017
---- Thermistor Assy 9900274016
---- Fuse 6.3A-250V 0600222574
---- Fuse Holder 0500158072
---- Protective Net-L 9374255023
---- Drain Pipe (I-Yipe) 9301102000
---- Drain Packing 9301143003
---- Drain Cap 313166024302
---- Emblem Rear 9372171011
---- Wire w/Connector Assy (Fan) 9374398058
---- Wire w/Connector-B Assy (Fan) 9374398027
----
Wire w/Conector-A Assy (Heater)
9374399017
---- Wire w/Terminal Assy (comp.) 9374395057
---- Wire w/Connector Assy (Relay) 9374397020
---- Wire w/Connector (Power) 9374396030
---- Expansion Valve Coil 9900190026
---- Terminal Cover (Comp.) 9362369008
---- Terminal Gasket (Comp.) 9362370004
---- Valve Cover 9374174010
---- Compressor Cover-A 9374430062
---- Compressor Cover-B 9374431069
25 Accumulator Assy 9371615011
27 Capillary Holder Rubber 313394274808
28
30
Expansion Valve Assy 9370947090
33 Terminal HP-T3041-C3B3-L0 9900184018
36
37 Capacitor, Plastic (for Fan Motor) 9900270049
39 Relay 9900074012
Outlet Pipe (Cond) A Assy 9974266029
45 Inlet Pipe (Cond) A Assy 9373461036
46 Inlet Pipe (Cond) B Assy 9373463030
7 Motor Bracket Sub Assy 9374418022
29 Muffler 9372369036
Control Box 9374164011
Fuse Holder 0501456016
2006.01.19 17
To Next Page
