20 Control Cover-A Sub Assy
9374516018
40 Motor Mount 9374281015
41 Bracket Motor Assy 9374230013
56 Sirocco Fan Assy
9356531022
67 Rubber 313659068604
72 Cabinet-L Sub Assy
9374509010
73 Cabinet-R Sub Assy
9374508013
74 Intake Cover Sub Assy 9374512010
75 Outlet Panel Sub Assy
9374510016
108 Base Sub Assy 9374504015
110 Casing-A 9374233014
111 Casing-B 9374234011
138 Separate Wall Assy
9374228010
139 Panel (Control Box) Sub Assy 9374506019
146 Evaporator Assy
9374518012
150 Bracket (Eva. )-R
9374207015
160 Drain Pan Sub Assy 9374513017
164 Motor, Induction
9600830093
223 Control Box-A 9374219018
236 Controller PCB Assy
9705246096
287 Cap (Power) 9352173011
288 One Touch Bush
9374407019
324 Main Panel Sub Assy
9374511013
325 Intake Frame Assy
9374216017
553 Transformer (Power)
9704129017
764 Drain Cap
9356541007
816 Terminal-3P 9703345012
817 Terminal-3P
9306489045
875 Power Supply PCB Assy
9705668010
956 Control Cover -B 9374222018
---- Thermistor Spring-A
313728262708
---- Room Temperature Thermistor
9703299025
---- Pipe Temperature Thermistor
9703297021
---- Remote Control Unit Assy
9372266014
---- RFM (Motor Band)
9374646012
---- Control Box-B
9374220014
---- Motor Band-A Assy 9374647019
---- Wire w/Connector
9704856012
---- Wire w/Connector
9705245020
---- Wire w/Connector 9705243026

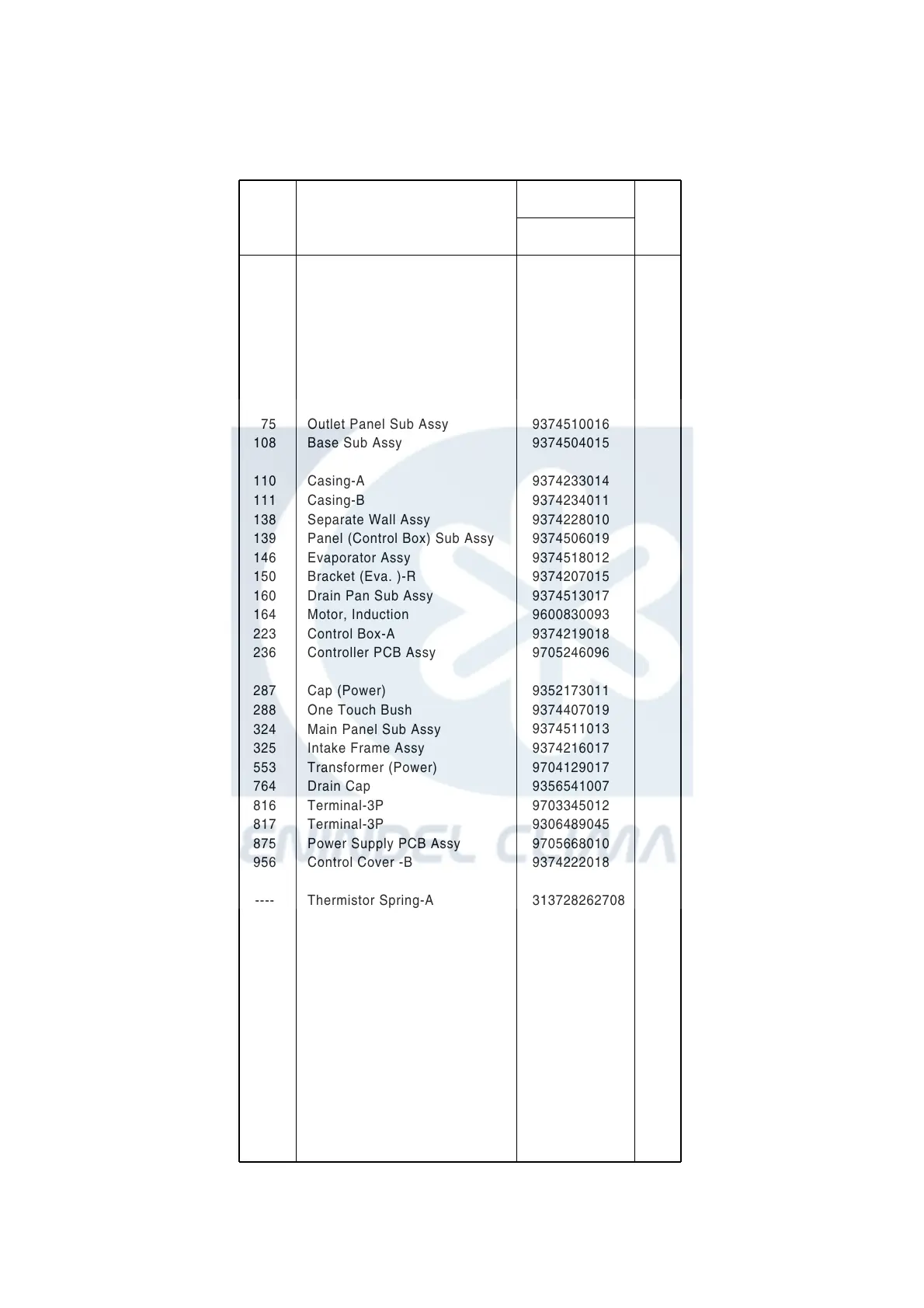

PARTS LIST
INDOOR UNIT
Ref.
No.
Description
Ord.
Q'ty
Part No.
ARG36UUAN
----
----
Wire w/Connector
9705244023
Capacitor Plastic
(For Fan Motor)
9900269173
2006.01.19 16
To Next Page
