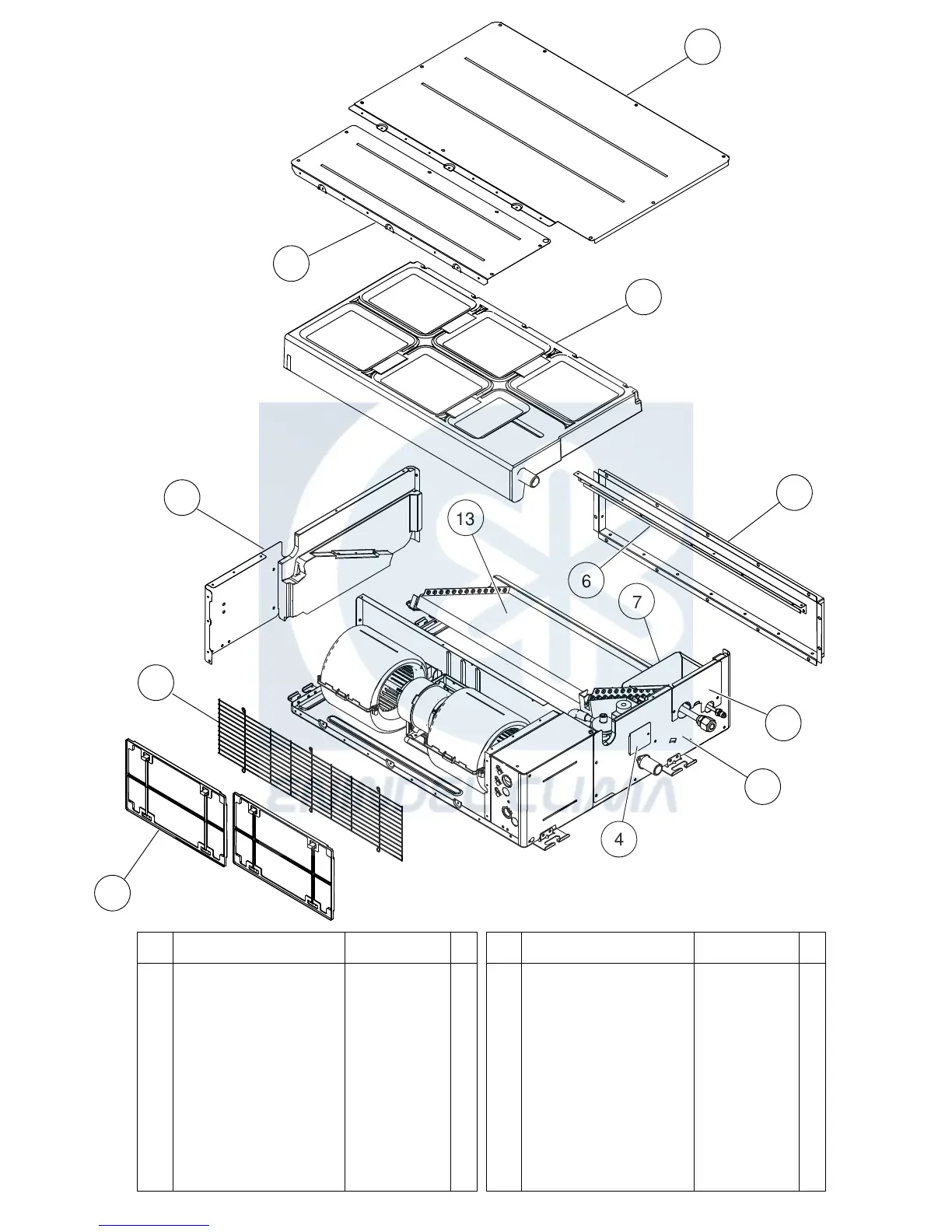

INDOOR UNIT
SLIM DUCT
ARHG07LLTA
ARHG09LLTA
ARHG12LLTB
(Serial number : R)
Refer to the service
bulletin RAC-0059
3 Pipe Panel Sub Assy
1 Side Panel R Sub Assy
2 Side Panel L Sub Assy
5 Outlet Frame Assy
Parts numberDescriptionRef
Panel (Window) Sub Assy
3
11
10
12
7
2
8
9
4
1
702012.02.28
11 Cabinet Panel (2 Fan)
10 Main Panel (2 Fan)
12 Drain Pan Sub Assy
9379906012
9379900003
9379907019
9380042006
9379915007 9380597001
8 Fan Guard (2 Fan) 9380589006
9380602002
9379901048
4
Parts numberDescriptionRef
13
Evaporater Total Assy (07)
9380782087
13
Evaporater Total Assy (09, 12)
9380782049
9 Air Filter 9379574006
7 Valve Cover Sub Assy 9379576017
6 Front Panel (2 Fan) 9380594000
5
6
13
To Next Page
