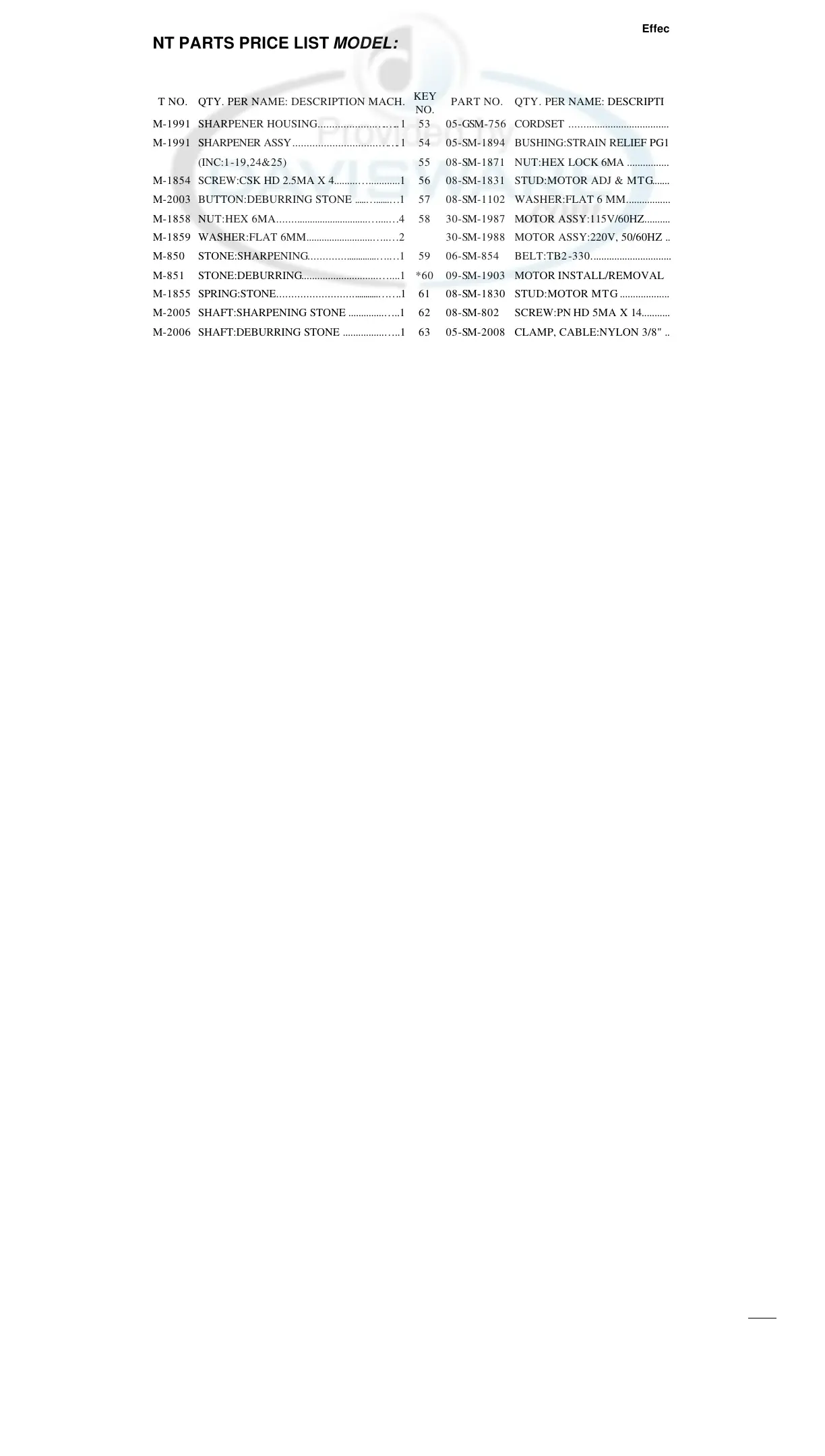

REPLACEMENT PARTS PRICE LIST MODEL:
GS220
KEY
NO.
PART NO. QTY. PER NAME: DESCRIPTION MACH.
KEY
NO.
PART NO. QTY. PER NAME: DESCRIPTION MACH.
1 09-SM-1991 SHARPENER HOUSING....................…. ….. 1 53 05-GSM-756 CORDSET ..........................................……... 1
30-SM-1991 SHARPENER ASSY..............................……. 1 54 05-SM-1894 BUSHING:STRAIN RELIEF PG11.…......... 1
(INC:1-19,24&25) 55 08-SM-1871 NUT:HEX LOCK 6MA ......................…...... 2
2 08-SM-1854 SCREW:CSK HD 2.5MA X 4.........…............1 56 08-SM-1831 STUD:MOTOR ADJ & MTG...............…..... 1
3 09-SM-2003 BUTTON:DEBURRING STONE .....…......…1 57 08-SM-1102 WASHER:FLAT 6 MM..........................…... 2
4 08-SM-1858 NUT:HEX 6MA...................................…....…4 58 30-SM-1987 MOTOR ASSY:115V/60HZ.....................…..1
5 08-SM-1859 WASHER:FLAT 6MM..........................…..…2 30-SM-1988 MOTOR ASSY:220V, 50/60HZ ...............….1
6 09-SM-850 STONE:SHARPENING..........................….…1 59 06-SM-854 BELT:TB2-330...........................................…1
7 09-SM-851 STONE:DEBURRING.............................…....1 *60 09-SM-1903 MOTOR INSTALL/REMOVAL TOOL .......1
8 08-SM-1855 SPRING:STONE.....................................…….1 61 08-SM-1830 STUD:MOTOR MTG ...............................….1
9 09-SM-2005 SHAFT:SHARPENING STONE
..............…..1
62 08-SM-802 SCREW:PN HD 5MA X 14......................…..1
10 09-SM-2006 SHAFT:DEBURRING STONE ................…..1 63 05-SM-2008 CLAMP, CABLE:NYLON 3/8" ................... 1
11 08-SM-1855 SPRING:STONE.....................................…….1 64 08-SM-1220 SCREW:PN HD 5MA X 10......................….1
12 08-SM-1854 SCREW:CSK HD 2.5MA X 4...................…..1 65 05-SM-1833 CAPACITOR:18MF, 400V.......................….1
13 09-SM-1853 BUTTON:SHARPENING STONE...........…..1 05-SM-860 CAPACITOR:7.5MF, 370V......................….1
14 01-SM-1990 SHARPENER FRAME............................……1 66 08-SM-1832 BRACKET:CAPACITOR MTG ..............….1
30-SM-1990 SHARPENER FRAME ASSY .................…..1 67 08-SM-1514 WASHER:STAR 8MM.............................….1
(INC:2-15,17-19,24&25) 68 08-SM-1515 NUT:HEX 8MA........................................….1
15 08-SM-1021 RETAINING RING:6MM..........................….1 69 08-SM-1885 NUT:JAM HEX 8MA................................…1
16 08-SM-429 SCREW:PN HD 5MA X 16 ......................…..2 70 08-SM-1818 SCREW:SET, SL 8MA X 25, NYLON ...….1
17 08-SM-831 NUT:JAM HEX 5MA................................…..1 71 01-SM-1970 PLATFORM CARRIAGE.........................…1
18 08-SM-1861 STUD W/NUT:5MA X 35 .........................….1 30-SM-1970 PLATFORM CARRIAGE ASSY ............….1
19 09-SM-1996 POSTS:HARPENER MTG......................……1 (INC:69-71 & 77-79)
20 23-SM-1929 SHARPENER BRKT...............................……1 72 09-SM-1971 SPRING:CARRIAGE ..............................….2
21 08-SM-1010 WASHER:FLAT 8MM..............................…..1 73 09-SM-1995 GUIDE BAR ............................................…..1
22 09-SM-1841 KNOB:KNIFE SHARPENER...................…..1 74 09-SM-2009 WEAR STRIP:GUIDE BAR ...................…..1
23 08-SM-1804 SCREW:HXHD 8MA X 20 .......................….1 75 08-SM-1870 SCREW:GUIDE BAR MTG, 6 MA X 20 ….2
24 08-SM-2007 SCREW:PN HD 5MA X 6........................…...1 76 09-SM-1977 SHAFT:PLATFORM CARRIAGE............… 1
25 08-SM-479 SCREW:SET 5MA X 5 ............................…..3 77 08-SM-1010 WASHER:FLAT 8MM.............................…. 2
26 23-SM-1956 REGULATOR PLATE .............................…...1 78 08-SM-810 ROLLER:#80026......................................…..1
27 23-SM-1955 SUPPORT:REGULATOR PLATE...........…...1 79 08-SM-1890 SCREW:HXHD 6MA X 20, BLK OX......…. 1
28 09-SM-1958 KNOB& ROD ASSY:KNIFE COVER .....…..1 80 08-SM-1102 WASHER:FLAT 6 MM............................…. 2
29 08-SM-1010 WASHER:FLAT 8MM..............................…..1 81 08-SM-1054 SCREW:HXHD 6MA X 20....................…... 2
30 08-SM-1804 SCREW:HXHD 8MA X 20.......................…..2 82 09-SM-1969 KNOB:PLATPORM MTG, BLK.............…. .1
31 06-SM-1895 BOOT:REGULATOR SUPPORT BRKT .…..1 09-SM-1982 KNOB:PLATFORM MTG, RED..............….1
32 23-SM-1954 BASE (SPECIFY MODEL)......................…...1 83 23-SM-1968 BRACKET:PLATFORM .......................……1
33 08-SM-1948 SCREW:KNIFE WIPER ..........................…...2 84 23-SM-1967 PLATFORM....................................... .....…...1
08-SM-1819 THUMB SCREW:KNIFE WIPER ............….1 30-SM-1967 PLATFORM ASSY................................…….1
34 06-SM-1992 KNIFE WIPER.........................................……1 (INC:80,81& 83-91)
35 08-SM-2012 SCREW:CARRIAGE SHAFT..................…...1 85 09-SM-1962 HANDLE W/STUD:FOODPUSHER, BLK...1
36 05-SM-1994 SWITCH, ROCKER: 115/230, 50/60 ........….1 09-SM-1983 HANDLE W/STUD:FOODPUSHER, RED...1
37 09-SM-1979 REGULATOR KNOB:BLACK .................….1 86 09-SM-1963 FOODPUSHER W/SPIKES ...................……1
09-SM-1984 REGULATOR KNOB, RED.....................…..1 30-SM-1963 FOODPUSHER ASSY............................……1
38 09-SM-1953 BOTTOM COVER...................................……1 (INC:85-88)
39 06-SM-1978 FOOT:27MM H W/5MA STUD ................…4 87 06-SM-1823 NYLON RIDER:FOODPUSHER.............…..1
40 08-SM-1989 WASHER:FENDER, 1/4" .......................……1 88 09-SM-1964 SPIKE:FOODPUSHER ...........................…..9
41 08-SM-1080 NUT:HEX 6MM .......................................…..1 89 09-SM-1965 SPRING:FOODPUSHER........................……1
42 08-SM-1972 WASHER:WAVE 12MM ..........................….1 90 09-SM-1966 SHAFT:FOODPUSHER..........................…...1
43 08-SM-1879 SCREW:SET 5MA X 10 ........................…….2 91 08-SM-1149 SCREW:SET 4MAX 5............................……1
44 09-SM-1973 REGULATOR CAM........ ........................…...1 92 08-SM-1891 PIN:LOCATING......................................……1
45 09-SM-1986 CAM FOLLOWER ...................................…..1 93 30-SM-1961 KNIFE PULLEY ASSY ............................….1
46 08-SM-1871 NUT:HEX LOCK 6MA ............................…..1 (INC:92-96)
47 01-SM-1974 REGULATOR BRKT...............................…...1 94 09-SM-1027 BEARING:#6202-2RS .............................…..2
48 08-SM-1455 SCREW:SET 8MA X 10.........................…….2 95 09-SM-2010 RETAINING RING:INTERNAL, 35MM ......1
49 08-SM-1012 SCREW:PN HD 4MA X 10......................…...1 96 09-SM-2011 RETAINING RING:EXTERNAL, 15MM..…1
50 09-SM-1976 SLIDE PLATE:REGULATOR BRKT .......…1 97 23-SM-1959 KNIFE COVER........................................…...1
51 08-SM-1220 SCREW:PN HD 5MA X 10......................…...5 98 09-SM-1960 KNIFE:9" ..................................................…..1
51A 08-SM-831 NUTJAM HEX 5MA................................…...1 99 08-SM-1866 SCREW:CSK PHL HD 5MA X 14.............…3
52 09-SM-1975 SHAFT:REGULATOR BRKT ..................….1
* Service Note: Part No. 09-SM-1903 is required for motor installation and removal.
** Refer to current equipment Price List for pricing of these items.
10.20.97
General Slicing/Red Goat Disposers • 1152 Park Ave • P.O. Box 428 • Murfreesboro, Tennessee 37133-0428 • (615) 893-4820
