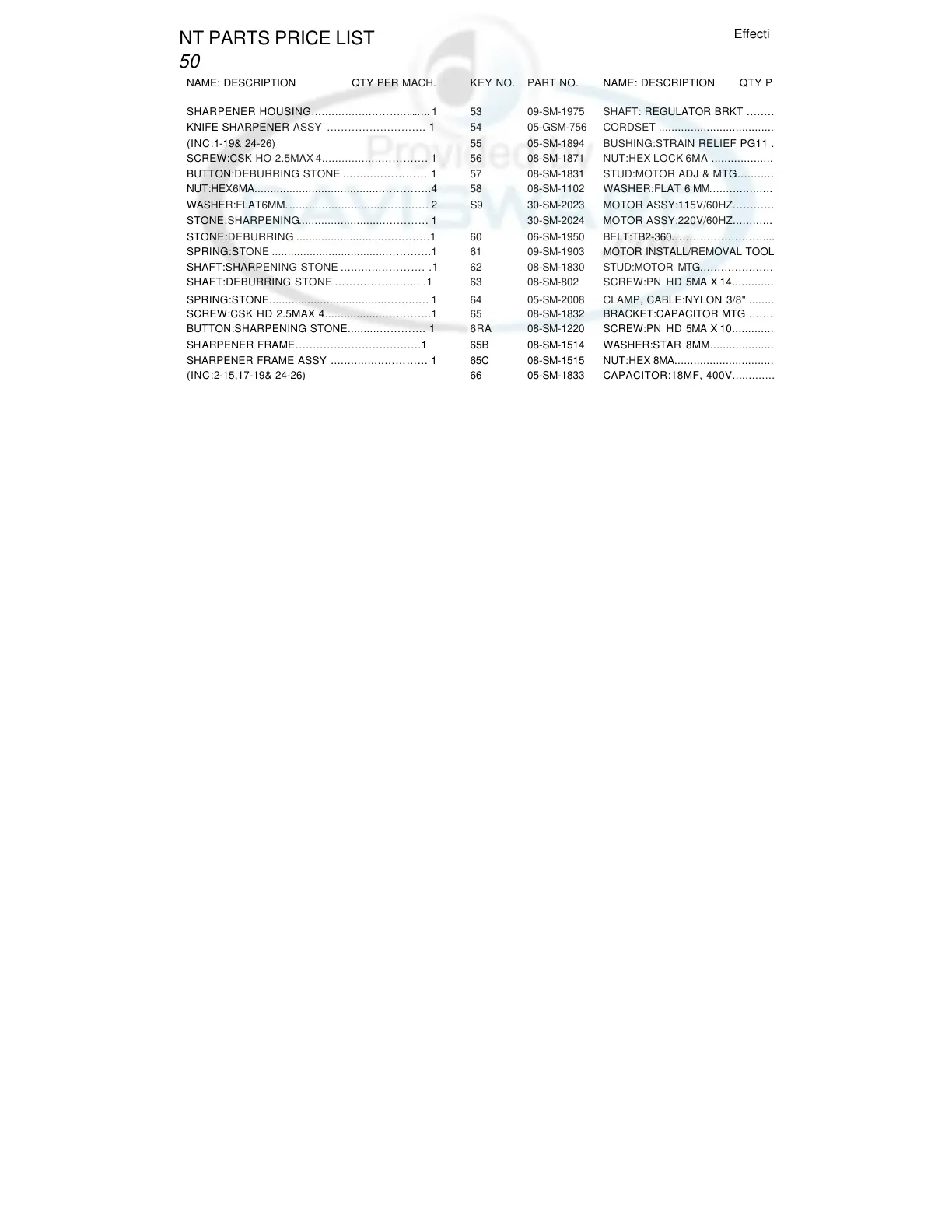

REPLACEMENT PARTS PRICE LIST
MODEL: ES250
KEY NO
PART NO.
NAME: DESCRIPTION QTY PER MACH.
KEY NO.
PART NO.
NAME: DESCRIPTION QTY PER MACH.
1 23-SM-1843 SHARPENER HOUSING....................………...…. 1
53 09-SM-1975 SHAFT: REGULATOR BRKT .................… 1
30-SM-1842 KNIFE SHARPENER ASSY ………………………. 1
54 05-GSM-756 CORDSET ..............................................… 1
(INC:1-19& 24-26)
55 05-SM-1894 BUSHING:STRAlN RELIEF PG11 ..........… 1
2 08-SM-1854 SCREW:CSK HO 2.5MAX 4..................…………. 1
56 08-SM-1871 NUT:HEX LOCK 6MA .............................… 2
3 09-SM-2003 BUTTON:DEBURRING STONE ............………… 1
57 08-SM-1831 STUD:MOTOR ADJ & MTG...................…. 1
4 08-SM-1858 NUT:HEX6MA........................................…………..4
58 08-SM-1102 WASHER:FLAT 6 MM.............................… 2
5 08-SM-1859 WASHER:FLAT6MM..............................……...…. 2
S9 30-SM-2023 MOTOR ASSY:115V/60HZ.....................… 1
6 09-SM-1864 STONE:SHARPENING...........................………… 1
30-SM-2024 MOTOR ASSY:220V/60HZ.....................…. 1
7 09-SM-1865 STONE:DEBURRING .............................…………1
60 06-SM-1950 BELT:TB2-360........................................…. 1
8 08-SM-1855 SPRING:STONE ....................................………….1
61 09-SM-1903 MOTOR INSTALL/REMOVAL TOOL....…… 1
9 09-SM-1856 SHAFT:SHARPENING STONE ..............………. .1
62 08-SM-1830 STUD:MOTOR MTG.............................…… 1
10 09-SM-2002 SHAFT:DEBURRING STONE …………………... .1
63 08-SM-802 SCREW:PN HD 5MA X 14......................…..1
11 08-SM-1855 SPRING:STONE.....................................……..…. 1
64 05-SM-2008 CLAMP, CABLE:NYLON 3/8" ................….. 1
12 08-SM-1854 SCREW:CSK HD 2.5MAX 4...................………….1
65 08-SM-1832 BRACKET:CAPACITOR MTG ...............…. 1
13 09-SM-1853 BUTTON:SHARPENING STONE..........…………. 1
6RA 08-SM-1220 SCREW:PN HD 5MA X 10......................…..1
14 01-SM-1882 SHARPENER FRAME………………………………1
65B 08-SM-1514 WASHER:STAR 8MM.............................…..1
30-SM-1882 SHARPENER FRAME ASSY ................………… 1
65C 08-SM-1515 NUT:HEX 8MA........................................…..1
(INC:2-15,17-19& 24-26)
66 05-SM-1833 CAPACITOR:18MF, 400V......................…. 1
15 08-SM-1021 RETAINING RING:6MM........................……….... 1
05-SM-860 CAPACITOR7.5MF, 370V.....................….. 1
16 08-SM-429 SCREW:PNHD5MAX 16....................…………... .2
67 08-SM-1885 NUT:JAM HEX 8MA...............................….. 1
17 08-SM-831 NUT:JAM HEX 5MA...............................………... 1
68 08-SM-1818 SCREW:SET, SL 8MA X 25, NYLON .....….1
18 08-SM-1862 STUD W/NUT5MA X 50 .......................……….... 1
69 01-SM-1970 PLATFORM CARRIAGE.........................…. 1
19 09-SM-1840 POST:SHARPENER MTG..................…………... 1
(INC:67-69& 75-77)
20 23-SM-1929 SHARPENER BRKT.............................…………. 1
30-SM-1970 PLATFORM CARRIAGE ASSY ..............…. 1
21 08-SM-1010 WASHER:FLAT 8MM.............................………… 1
(INC:67-69 & 75-77)
22 09-SM-1841 KNOB:KNIFE SHARPENER...................……….. 1
70 09-SM-1971 SPRING:CARRIAGE ..............................…. 2
23 08-SM-1804 SCREW:HXHD8MAX 20......................... ………..1
71 09-SM-1995 GUIDE BAR ...........................................….. 1
24 08-SM-1861 STUD W/NUT:5MAX 35........................... ……….1
72 09-SM-2009 WEAR STRIP:GUIDE BAR .....................… 1
25 08-SM-831 NUT:JAM HEX 5MA................................……….. 1
73 08-SM-1870 SCREW:GUIDE BAR MTG. 6 MA X 20 ..….2
26 08-SM-479 SCREW:SET 5MA X 5 ...........................……….. 3
74 09-SM-1977 SHAFT:PLATFORM CARRIAGE............… .1
27 23-SM-2022 REGULATOR PLATE ...........................………….1
75 08-SM-1010 WASHER:FLAT 8MM..............................… 3
28 23-SM-1955 SUPPORTREGULATOR PLATE...........………… 1
76 08-SM-810 ROLLER:#80026......................................… 1
29 09-SM-1958 KNOB& ROD ASSY:KNIFE COVER ...... ………..1
77 08-SM-1890 SCREW:HXHD 6MA X 20, BLK OX ......……1
30 08-SM-1010 WASHER:FLAT 8MM................................ ……….1
78 08-SM-1102 WASHER:FLAT6MM............................ …….2
31 08-SM-1804 SCREW:HXHD8MAX 20.......................…………. 2
79 08-SM-1054 SCREW:HXHD 6MA X 20.............. ......…… 2
32 06-SM-1895 BOOT:REGULATOR SUPPORT BRKT ... ……….1
80 09-SM-1969 KNOB:PLATFORM MTG, BLK................…..1
33 23-SM-1954 BASE (SPECIFY MODEL)......................………… 1
81 23-SM-1968 BRACKET:PLATFORM .........................……1
34 08-SM-1948 SCREW:KNIFE WIPER …………………………….2
82 23-SM-2025 PLATFORM......................................... ...…..1
08-SM-1819 THUMB SCREW;KNIFE WIPER ...........………... 1
30-SM-2025 PLATFORM ASSY.................................... …1
35 06-SM-1992 KNIFE WIPER.........................................……….. 1
(INC:78,79& 81-88)
36 08-SM-2012 SCREW:CARRIAGE SHAFT.................………... 1
83 09-SM-1962 HANDLE W/STUD:FOODPUSHER. BLK ….1
37 05-SM-1994 SWITCH, ROCKER: 115/230, 50/60 ......……….. 1
84 09-SM-2026 FOODPUSHER W/SPIKES .............…….... 1
38 09-SM-1979 REGULATOR KNOB:BLACK .................. ……….1
30-SM-2026 FOODPUSHER ASSY..................... . .….... 1
39 09-SM-1953 BOTTOM COVER ............................... ...………. 1
(INC:83,84,86&87)
40 06-SM-1978 FOOT:27MM HW/5MASTUD .............………….. 4
85 04-SM-2027 SHAFT:FOODPUSHER.......................….... 1
41 08-SM-1989 WASHER:FENDER, 1/4" ......................………... 1
86 09-SM-1964 SPIKE:FOODPUSHER …………………….. 9
42 08-SM-1080 NUT:HEX6MM ......................................………… 1
87 06-SM-1823 NYLON RIDER:FOODPUSHER .........….. . 1
43 0&-SM-1972 WASHER:WAVE 12MM ........... ............………... 1
88 08-SM-1149 SCREW:SET 4MAX 5.. ....................……... 1
44 08-SM-1879 SCREW:SET 5MA X 10 ......................………….. 2
89 08-SM-1891 PIN'.LOCATING............................... ...….... 1
45 09-SM-1973 REGULATOR CAM... ..... ... .........……………... . 1
90 30-SM-1961 KNIFE PULLEY ASSY ...........................…. 1
46 09-SM-1986 CAM FOLLOWER ................. ..... ...…………...... 1
(INC.89-93)
47 08-SM-1871 NUT:HEX LOCK 6MA ................... ………………. 1
91 09-SM-1027 BEARING:#6202-2RS ............................…. 2
48 01-SM-1974 REGULATOR BRKT.................. ..... ..…………... 1
92 08-SM-1026 RETAINING RING:INTERNAL35 MM ...….. 1
49 08-SM-1455 SCREW:SET 8MAX 10.................... ..…………....2
93 09-SM-2011 RETAINING RING:EXTERNAL, 15MM...…. 1
50 08-SM-1012 SCREW:PN HD4MAX 10.....................………….. 1
94 08-SM-1866 SCREW:CSK PHL HD 5MA X 14............…. 3
51 09-SM-1976 SLIDE PLATE:REGULATOR BRKT ....………….. 1
95 23-SM-1941 KNIFE COVER................................. .....….. 1
52 08-SM-1220 SCREW:PN HD 5MAX 10................. ..………….. 5
96 09-SM-1942 KNIFE,:10" ........... ................................…… 1
52A 08-SM-831 NUT:JAM HEX 5MA.. ...... ...... ...,.:.... …………. . 1
' Service Note: Part No. 09-SM-1903 is required for motor installation and removal. "
Refer to current equipment Price List for pricinq of these items.
General Slicing/Red Goat Disposers «1152 Park Ave • P.O. Box 428 • Murtreesboro, Tennessee 37133-0428 • (615) 893-4820
