PREPARE THE PROBE

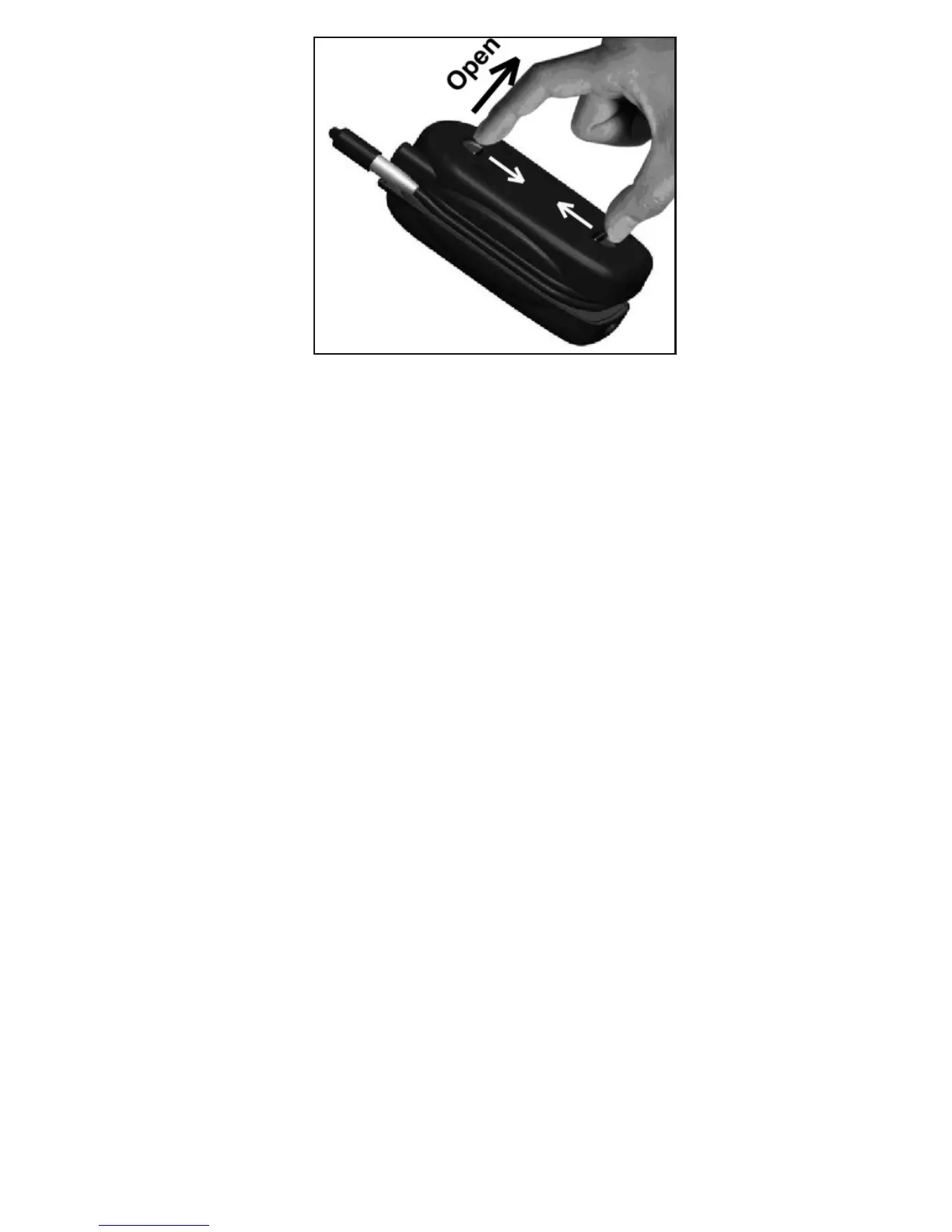

To gain access to the probe, flip the
PalmScope over so its back faces you,
place your thumb and index finger at the
positions marked OPEN (Fig. 2, Callout L),
and gently squeeze the latches (see
figure above). The clamshell case will
pop open.
Note that the probe is tightly wrapped
within a twisting channel that makes
two full turns around the inside of the
clamshell. The probe can be uncoiled
to either of two working lengths (see
photos at top of next page). Unwrapping
only one full turn will make the probe
12.5 in. long. Unwrapping both turns will
make the probe 24 in. long.
