GeneralAire 1042 Series Installation Instructions

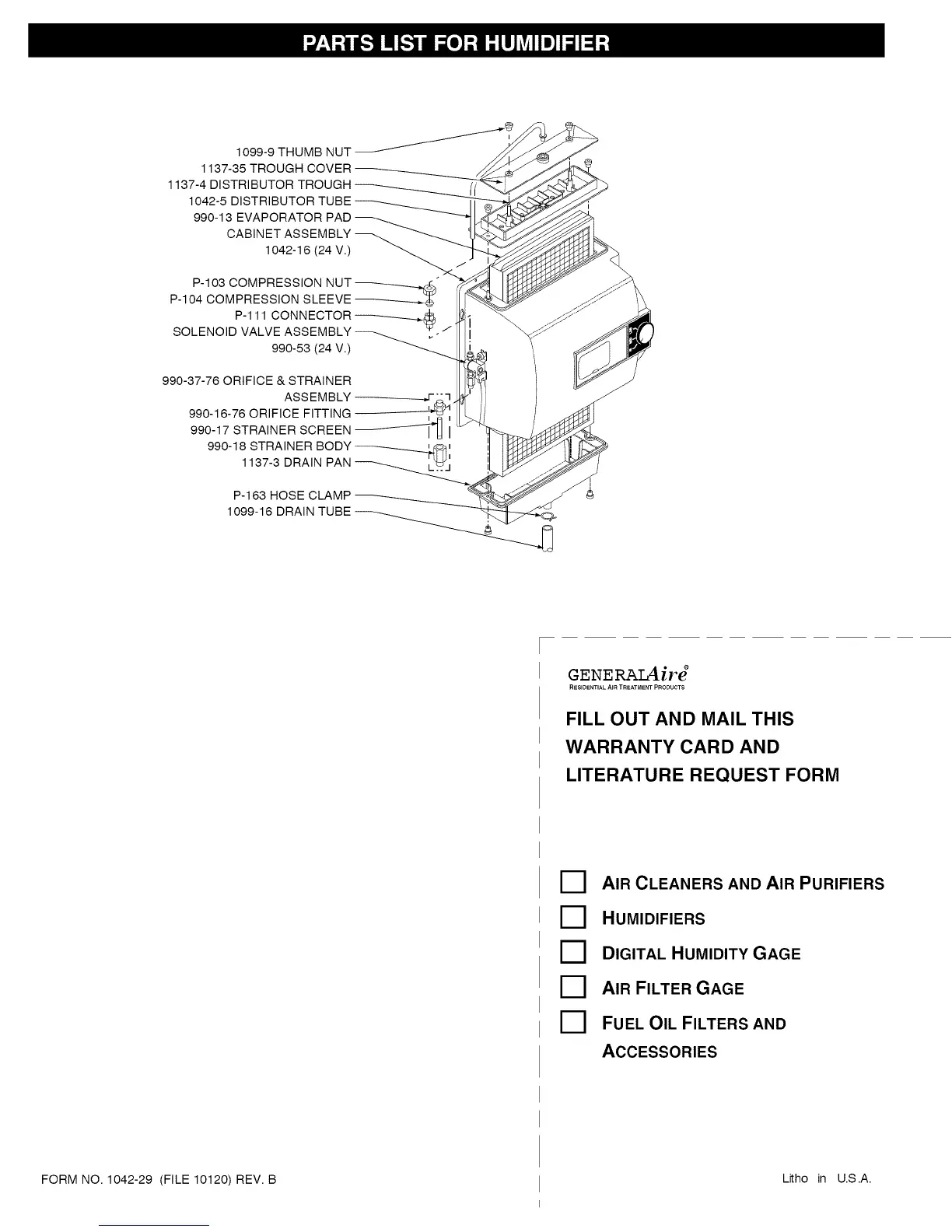

1099-9THUMBNUT
1137-4DISTRIBUTOR
1042-5DISTRIBUTOR
990-13EVAPORATOR
CABINETASSEMBLY
1042-16(24V.)
P-103COMPRESSIONNUT_,_%"
P-104COMPRESSIONSLEEVE
P-111CONNECTOR ---__ /
SOLENOID VALVE
990-53 (24 V.)
990-37-76 ORIFICE & STRAINER
ASSEMBLY ---------_
990-16-76 ORIFICE FITTING
990-17 STRAINER SCREEN I
990-18 STRAINER BODY _.
1137-3 DRAIN L._.Jj
P-163 HOSE
1099-16 DRAIN TUBE
GENERAIAir_
RESIDENTIAL AiR TREATMENT PRODUCTS
FILL OUT AND MAIL THIS
WARRANTY CARD AND
LITERATURE REQUEST FORM
[_ AIR CLEANERS AND AIR PURIFIERS
[_ HUMIDIFIERS
D DIGITAL HUMIDITY GAGE
[_ AIR FILTER GAGE
[_ FUEL OIL FILTERS AND
ACCESSORIES
FORM NO. 1042-29 (FILE 10120) REV. B
Litho in U.S.A.

GeneralAire 1042 Series Specifications

General

Capacity	18 Gallons per Day
Voltage	24V
Type	Flow-through
Coverage Area	Up to 3, 000 square feet
Mounting Location	HVAC Duct
Water Supply Connection	1/4 inch copper tubing
Drain Connection	1/2 inch drain hose
