GENI MOVING HEAD OBY-3 - Page 13

11

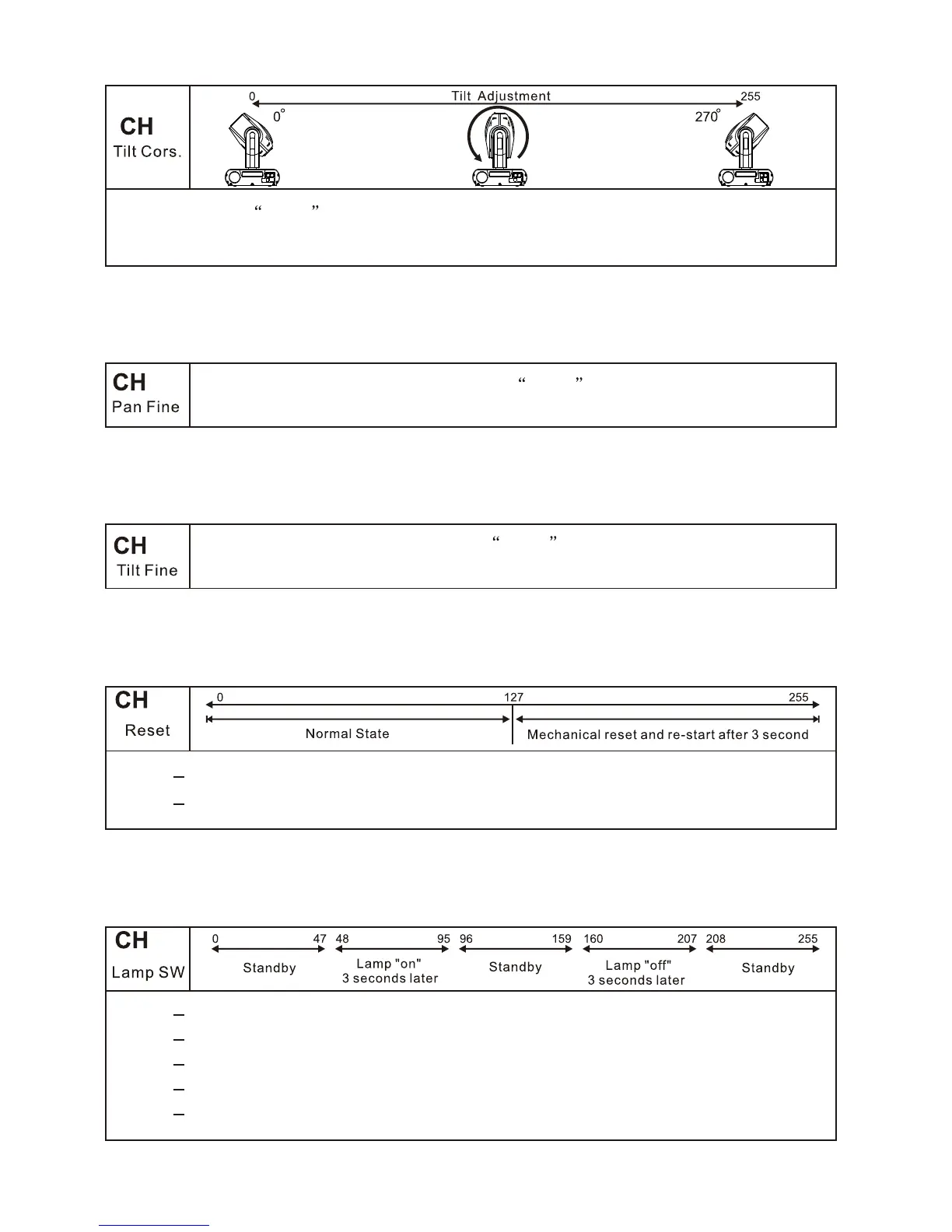

Channel 9 Tilt reguration
The head of the unit is allowed to turn vertically from
zero to 270 degrees
9
Channel 10 Pan fine-tune
While rotating horizontally the head is allowed to be
fine tuned from zero to 2.2 degrees.
10
Channel 11 Tilt fine-tune
While rotating vertically the head is allowed to be
fine tuned from zero to 1 degree.
11
Channel 12- Reset
Normal state
127
0
Mechanical reset and re-start after 3 seconds
255
127
12
Channel 13- Lamp switch
Standby
Lamp "on" 3 seconds later
Standby
Lamp "off" 3 seconds later
Standby
47
95
159
207
255
0
48
96
160
208
13
