BLIZZARD 500-900 10 532102 - Rev.B
1
2
3
1
4
5
6
7
8
5
Translation of the original instructions
ENGLISH
5. INSTALLATION
5.1 TOOLS REQUIRED
!
Use appropriate tools and equipment in working environments which
comply with applicable legislation.
8 Symbols: work tools
2x17; 13; 10; 8
HEX SPANNER of size indicated
x.x Nm
TORQUE WRENCH - if necessary for safety, a torque wrench and the
TIGHTENING TORQUE will be specified E.g. 6 mm hex spanner set to 2.5 Nm
6
2.5 Nm
ELECTRICIAN'S SCISSORS
6.5; 5.5; 3.6
HSS DRILL BIT of specified sizes
M8
THREAD CUTTER of specified sizes (for steel rack to be screwed on)
SPIRIT LEVEL

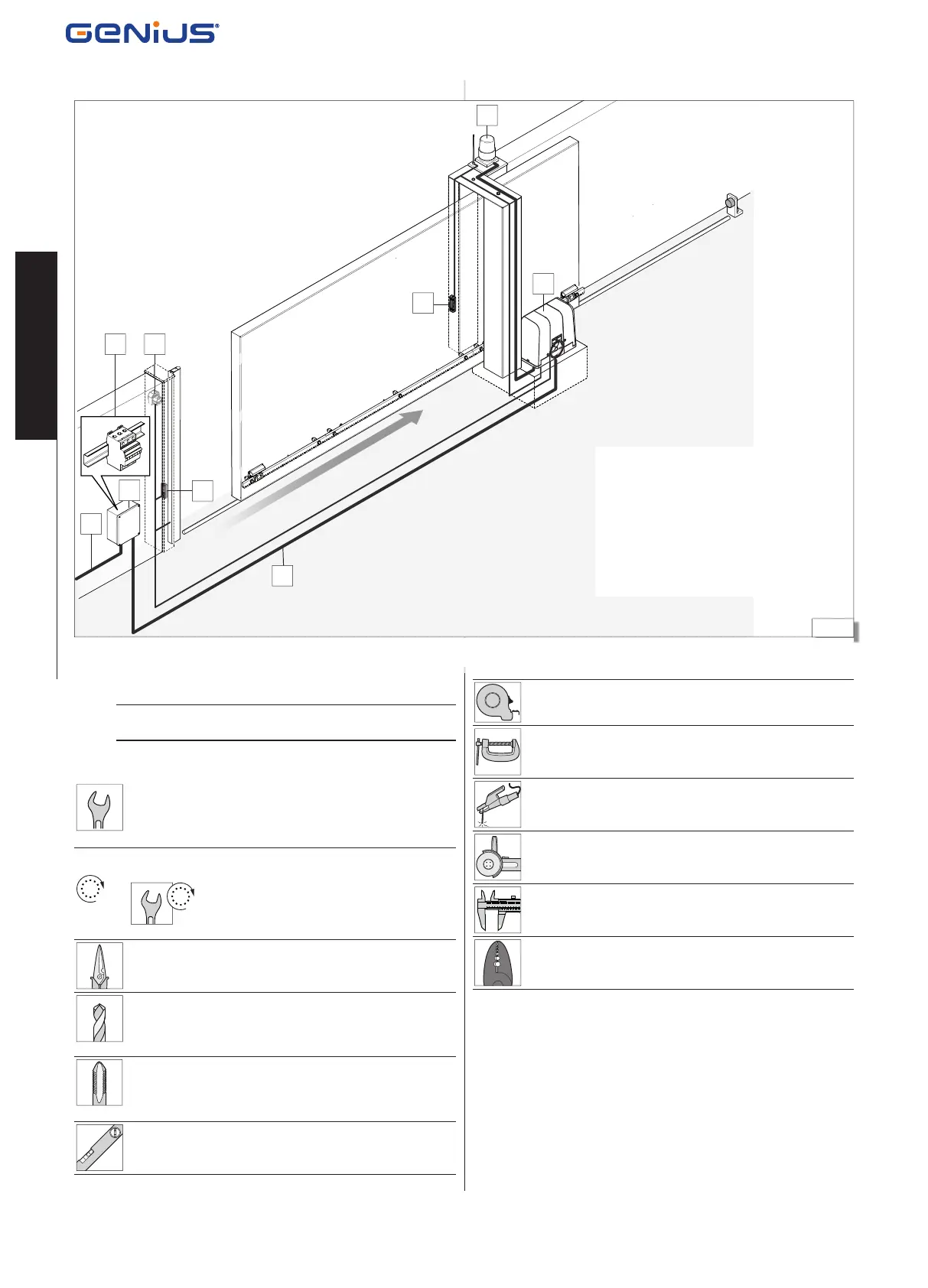

4.3 EXAMPLE SYSTEM
The example system is a purely illustrative and not exhaustive representation of BLIZZARD 500-900.
TAPE MEASURE
SCREW CLAMP
WELDING EQUIPMENT (for steel rack to be welded on)
ANGLE GRINDER
012 3456
CALLIPER
WIRE STRIPPER/TERMINAL CRIMPER
1 Mains power supply 3 x 1.5mm
2
2 Circuit breaker
3 Junction box
4 Blizzard gear motor
5 Photocell TX
6 Photocell RX
7 Key switch
8 Flashing Light
