3.7 TECHNICAL CHARACTERISTICS
GENIUS BLIZZARD 500 and BLIZZARD 900 series gear motors
are equipped with a pair of magnetic limit switches and corre-
sponding limit stop sensors. There is no control system included:
BLIZZARD 500-900 must be connected to a GENIUS electronic board
for controlling 230 V~/115 V~ motors (depending on the version)
for sliding gates.
Movement cannot be reversed: To operate the gate manually, follow
the instructions in § 5.5.
3.4 EMERGENCY USE

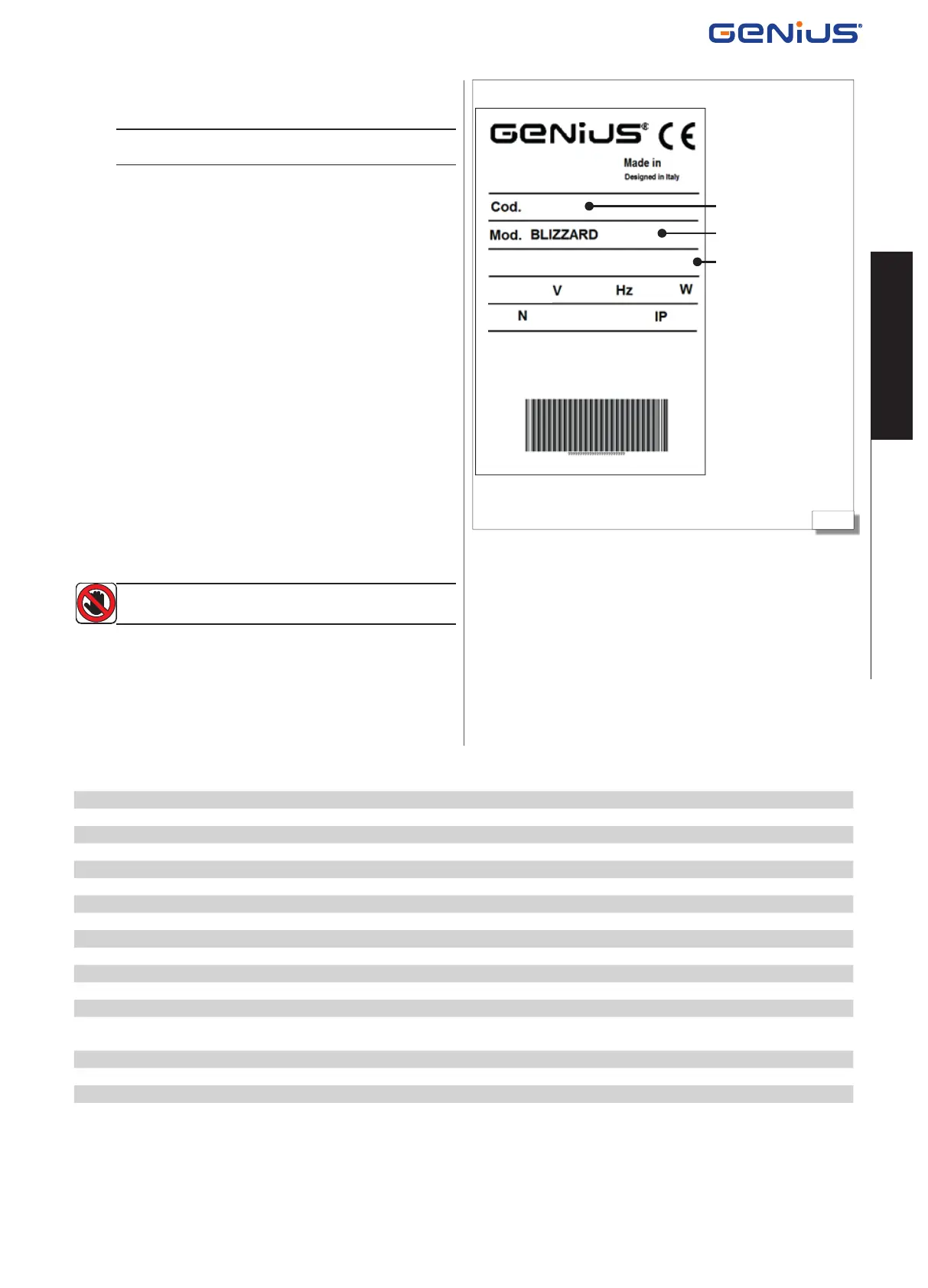

3.6 PRODUCT IDENTIFICATION
5 Technical Data
BLIZZARD 500 BLIZZARD 900
Supply voltage 230 V~ (+6%…-10%) 50 Hz 115 V~ (+6%…-10%) 60 Hz 230 V~ (+6%…-10%) 50 Hz 115 V~ (+6%…-10%) 60 Hz
Electric motor Asynchronous single phase Asynchronous single phase Asynchronous single phase Asynchronous single phase
Start-up capacitor 10 µF 40 µF 12.5 µF 50 µF
Max power 350 W 340 W 530 W 600 W
Thermal protection 140 °C (automatic rearming) 140 °C (automatic rearming) 140 °C (automatic rearming) 140 °C (automatic rearming)
Max thrust force 390 N 250 N 590 N 540 N
Starting thrust force 300 N 220 N 410 N 380 N
Pinion Z16 Module 4 Z16 Module 4 Z16 Module 4 Z16 Module 4
Max sliding gate section length 15 m 15 m 15 m 15 m
Max sliding gate section weight 500 kg 500 kg 900 kg 900 kg
Sliding gate section speed 12 m/min 14 m/min 12 m/min 14 m/min
Ambient operating temperature -20 °C - +55 °C -20 °C - +55 °C -20 °C - +55 °C -20 °C - +55 °C
Type of use Residential buildings/Apartment
complexes
Residential buildings/Apartment
complexes
Residential buildings/Apartment
complexes
Residential buildings/Apartment
complexes
Continuous use time (ROT) 20°C* 9 min 11 min 11 min 11 min
Ingress Protection IP44 IP44 IP44 IP44
Dimensions (LxDxH) 297x170x256 297x170x256 297x170x256 297x170x256
Gear motor weight 9.2 kg 9.2 kg 10 kg 10 kg
* The ROT technical data refers to the operation with the electronic boards GENIUS SPRINT 382 and SPRINT 383 (maximum ambient tem-
perature 20°C).
In emergencies or if there is a fault, turn off the power supply to the
automation . If the leaf can be moved safely by hand, use the MANUAL
OPERATION mode; otherwise place the automation out of service until
it has been reset/repaired.
In the case of a breakdown, the automation must be reset/repaired
exclusively by the installer/maintenance technician.
3.5 PRODUCT WARNINGS
Risk of fingers and hands being trapped between the rack, pinion and
casing (2).
Sales code
Product name
IDENTIFICATION NUMBER
Month/year of production +
progressive number for the
month of production
E.g.:
0115 0001
not specifically authorised and trained to do so.
- Do not allow the control devices to be used by children or persons
with mental and physical deficiencies unless they are supervised
by an adult who is responsible for their safety.
!
During manual operation, gently guide the leaf the whole way, do not
push it and let it slide freely.
