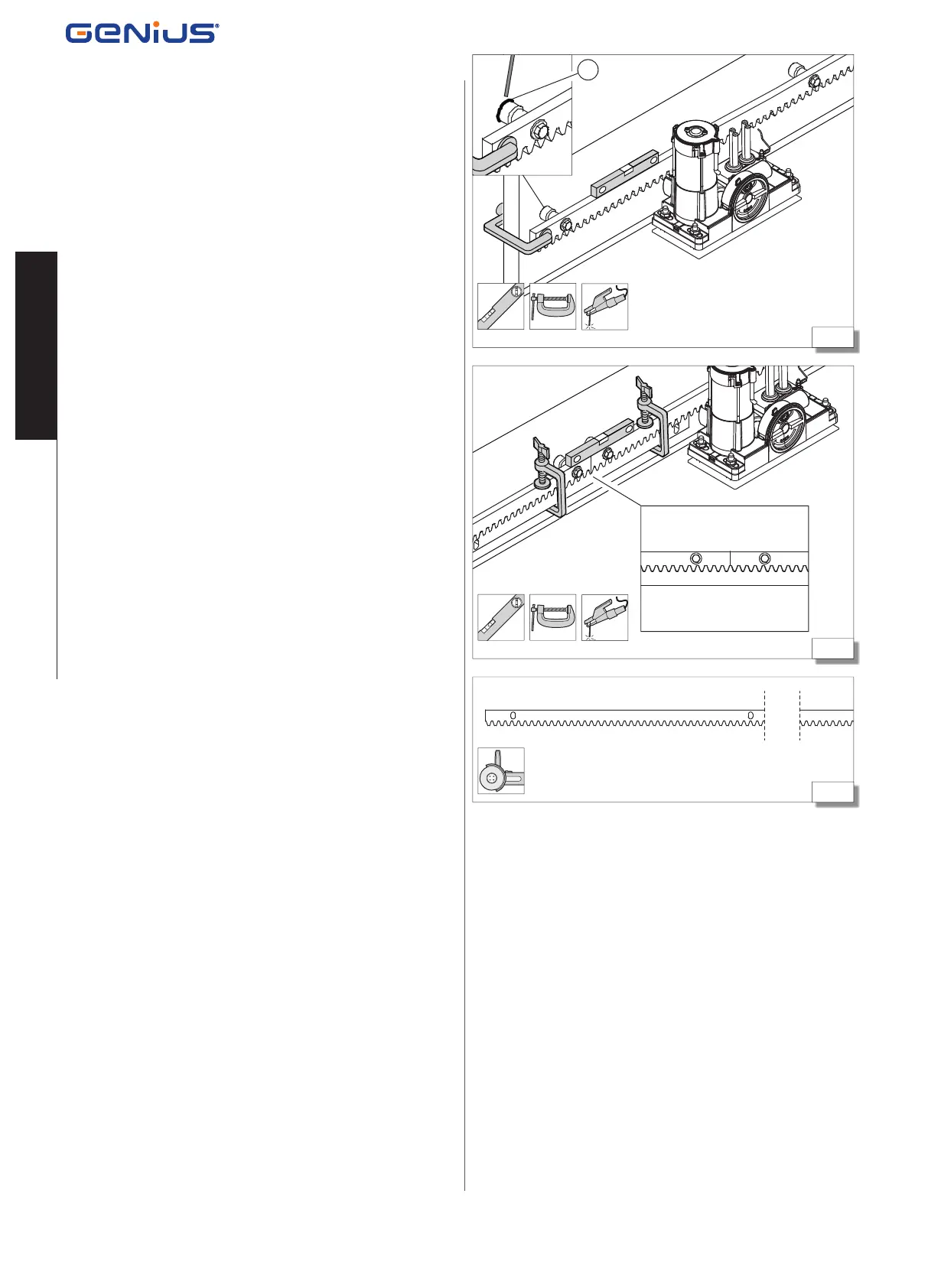

3. Use a screw clamp to fasten the section to the sliding gate section,
then use a spirit level to check it is level (17).
4. Weld the spacer to the sliding gate section (17-1).
5. Move the sliding gate section forward, checking that the section
rests on the pinion.
6. Check the level, then weld the other two spacers, repeating the
operations in steps 5 and 6.
7. If necessary, install another rack section, as in step 1.
8. Rest the section on the pinion, bringing it up to the previous one;
use a third section, screw clamps and a spirit level to line up the
teeth and check it is level (18).
9. Weld the spacers, repeating the operations in points 5, 6 and 7.
10. Add other rack sections until the entire length of the sliding gate
section is covered.
11. If the final section is too long, cut it with an angle grinder near
one of the slots (19).
