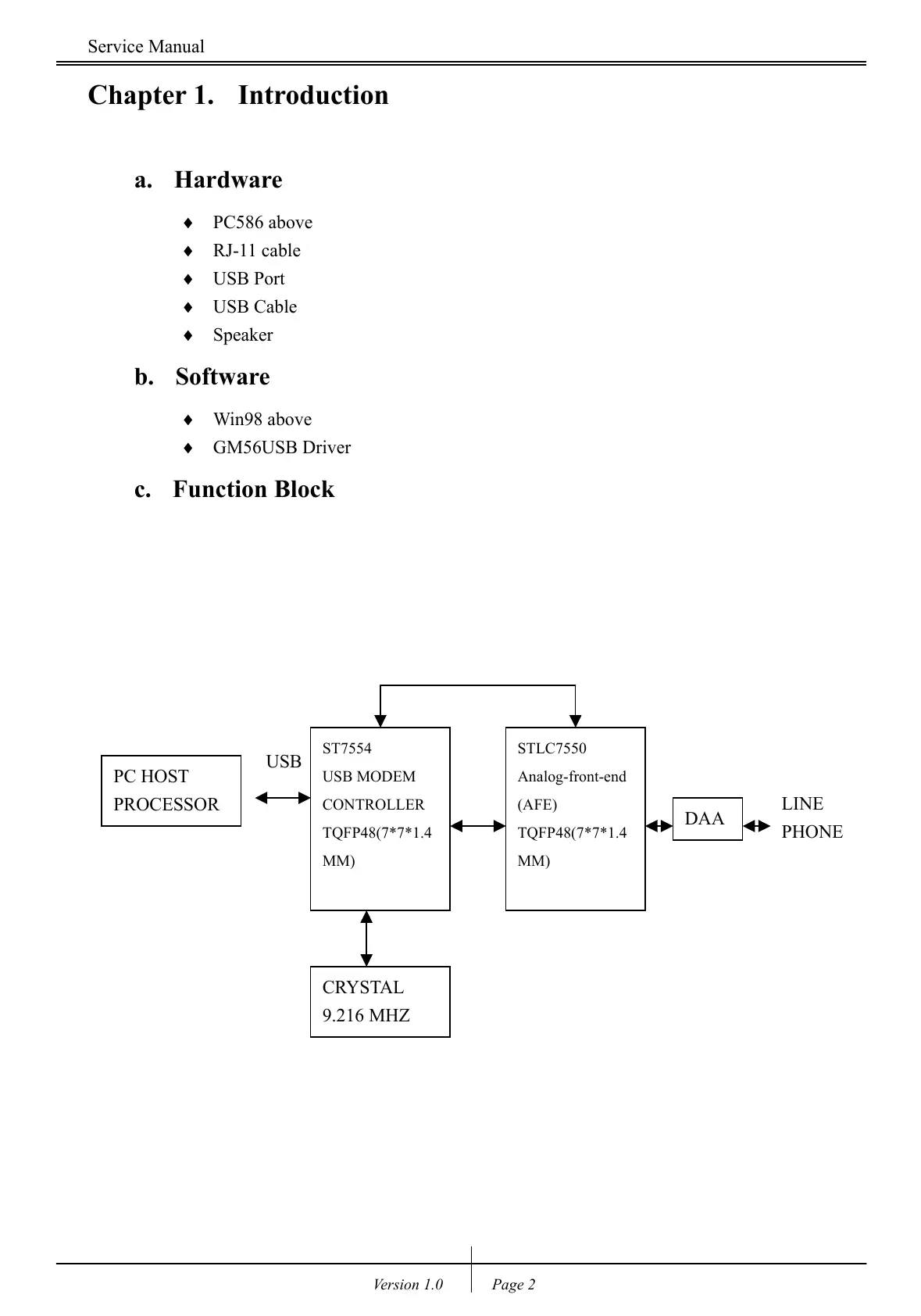

Service Manual
Chapter 1. Introduction
a. Hardware
PC586 above ♦
♦
♦
♦
♦
♦
♦
RJ-11 cable
USB Port
USB Cable
Speaker
b. Software
Win98 above
GM56USB Driver
c. Function Block
USB
ST7554
USB MODEM
CONTROLLER
TQFP48(7*7*1.4
MM)
STLC7550
Analog-front-end
(AFE)
TQFP48(7*7*1.4
MM)
CRYSTAL
9.216 MHZ
DAA
PC HOST
PROCESSOR
LINE
PHONE
