Service Guide SW-5.1 1020

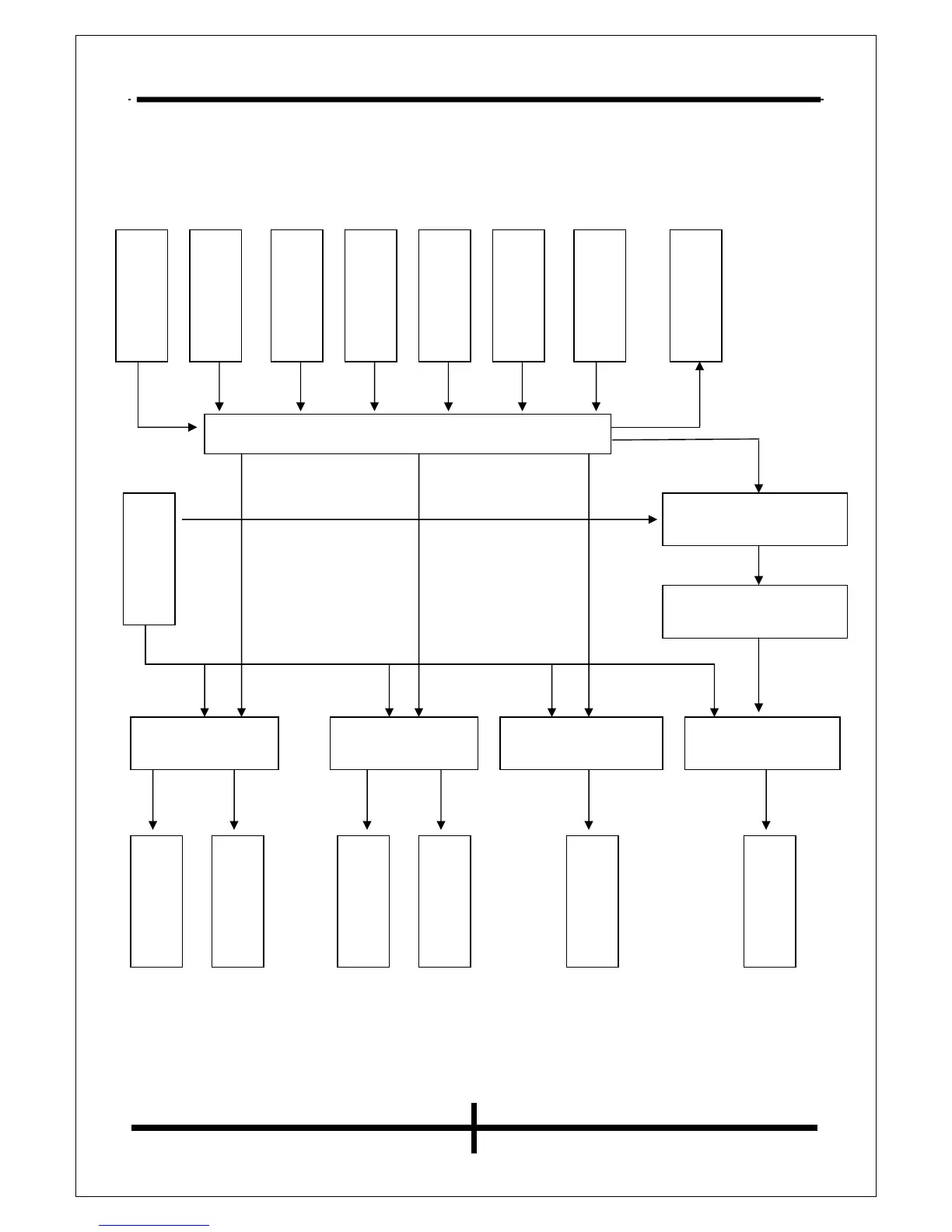

Chapter 3 Block Diagram
Version No. 1.0 Page 18 of 24
FL Signal input
Calculation amplification
JRC4558
Bass tuning
Electronic volume control SJ3358
Power amplification
TDA2030A
Power amplification
TDA2030
Power amplification
TDA2025B
Volume tuning
FR Signal input
CEN Signal input
SL Signal input
SR Signal input
USB Signal input
Earphone input
Power supply
Power amplification
TDA2030
FL output
FR output
SL output
SR output
CEN output
SUB output
