Genmitsu 3020-PRO MAX CNC - Install the Control Board

Step 4: Install the Control Board
Controller Board
Controller Board
6

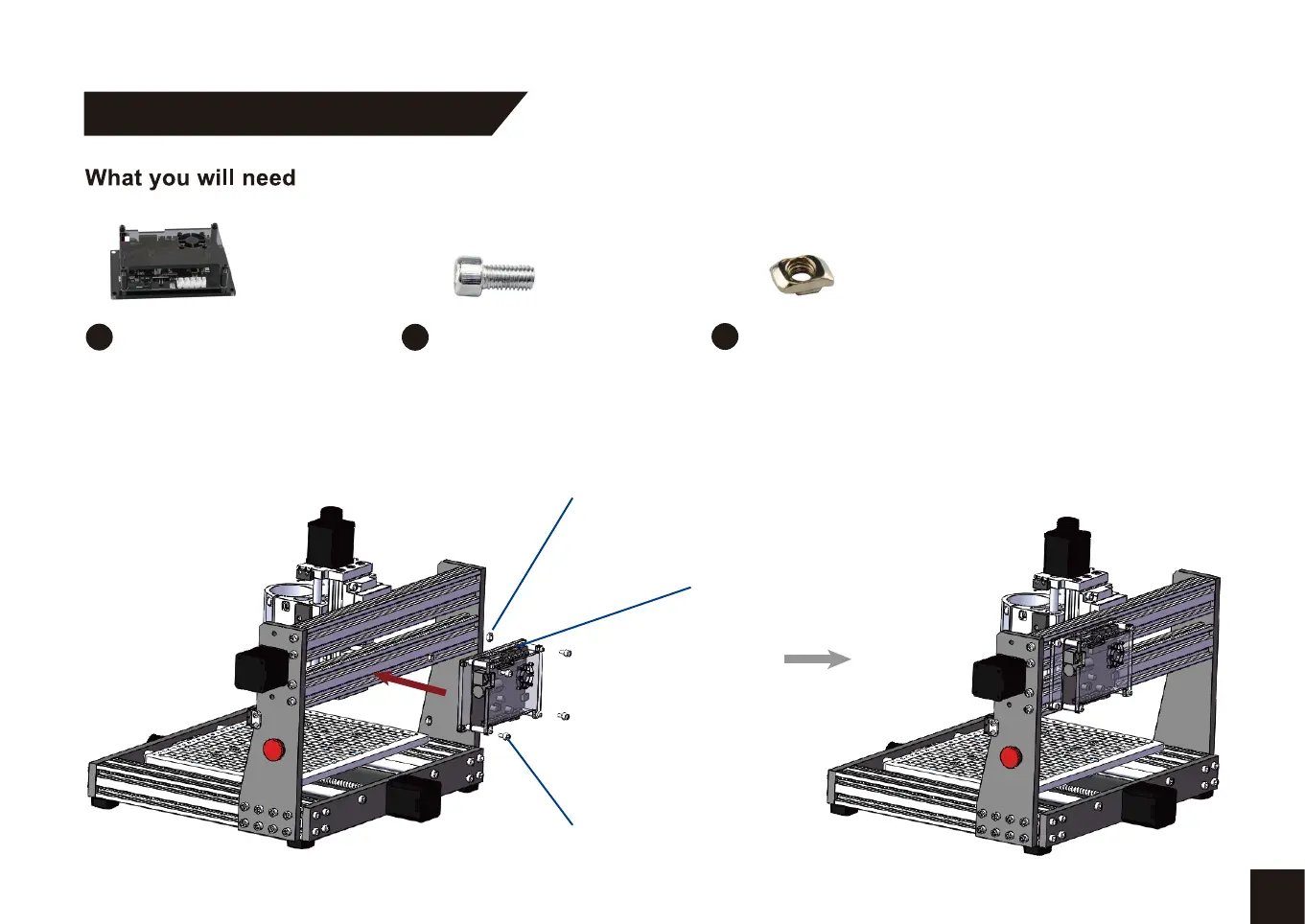

1. Place the M5 T Slot Nut into the Y axis profile.
2. Align the Control Board with the nut hole, tighten the M5*10 Screws into the hole and adjust the control board position, then tighten
the screw.
23
4 x M5*10 Screw
4 x M5 T Slot Nut
M5 T Slot Nut
25
13
M5*10 Screw
