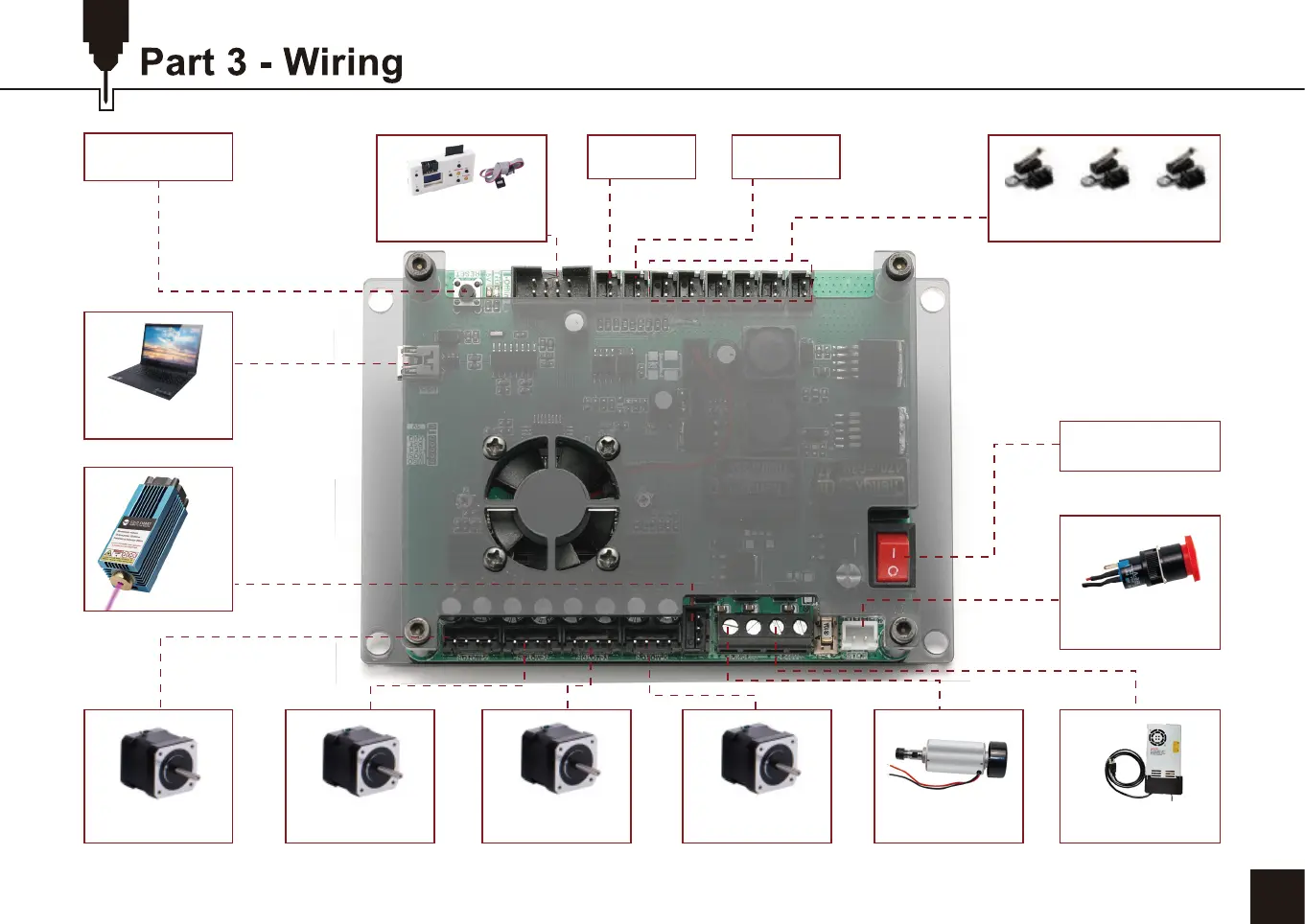

Genmitsu 3020-PRO MAX CNC - Part 3 - Wiring; Wiring Diagram Overview

Genmitsu 3020-PRO MAX CNC
59 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Z-axis Motor
USB Interface
Laser
Reset
Y1-axis Motor Y2-axis Motor X-axis Motor -Spindle+ -Power Supply+
Emergency Stop
Power Switch
Limit Switch
Offline Controller
5V Out Z-Probe
