3. Power Supply Box and Control Board Wiring
21
Wiring

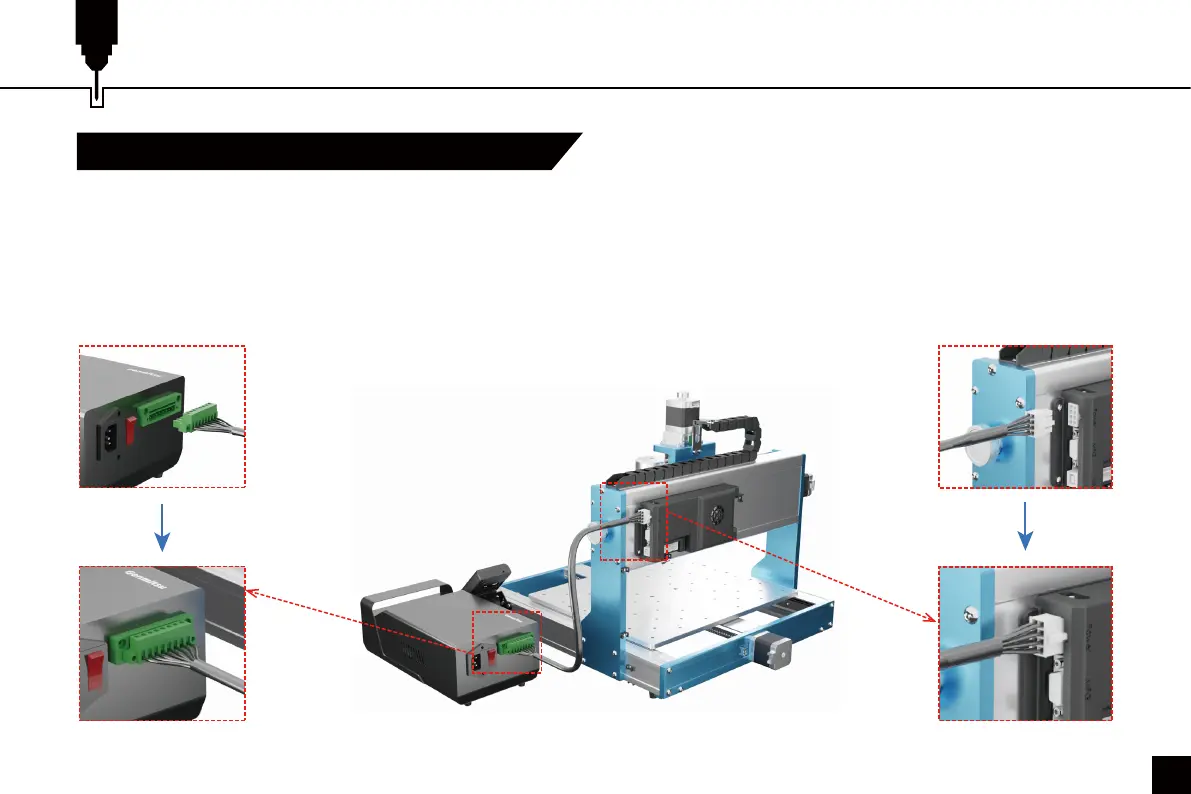

As shown in the figure, one end of the power supply box connection cable is a single row of 8pin green terminals, and the other
end is a double row of 8pin white terminals.
The green terminal corresponds to the power bank interface and the white terminal corresponds to the control board interface.
Please follow the wiring diagram below.
Note: The terminal ports are designed to only fit one way. Do not force any connection.
To Next Page
