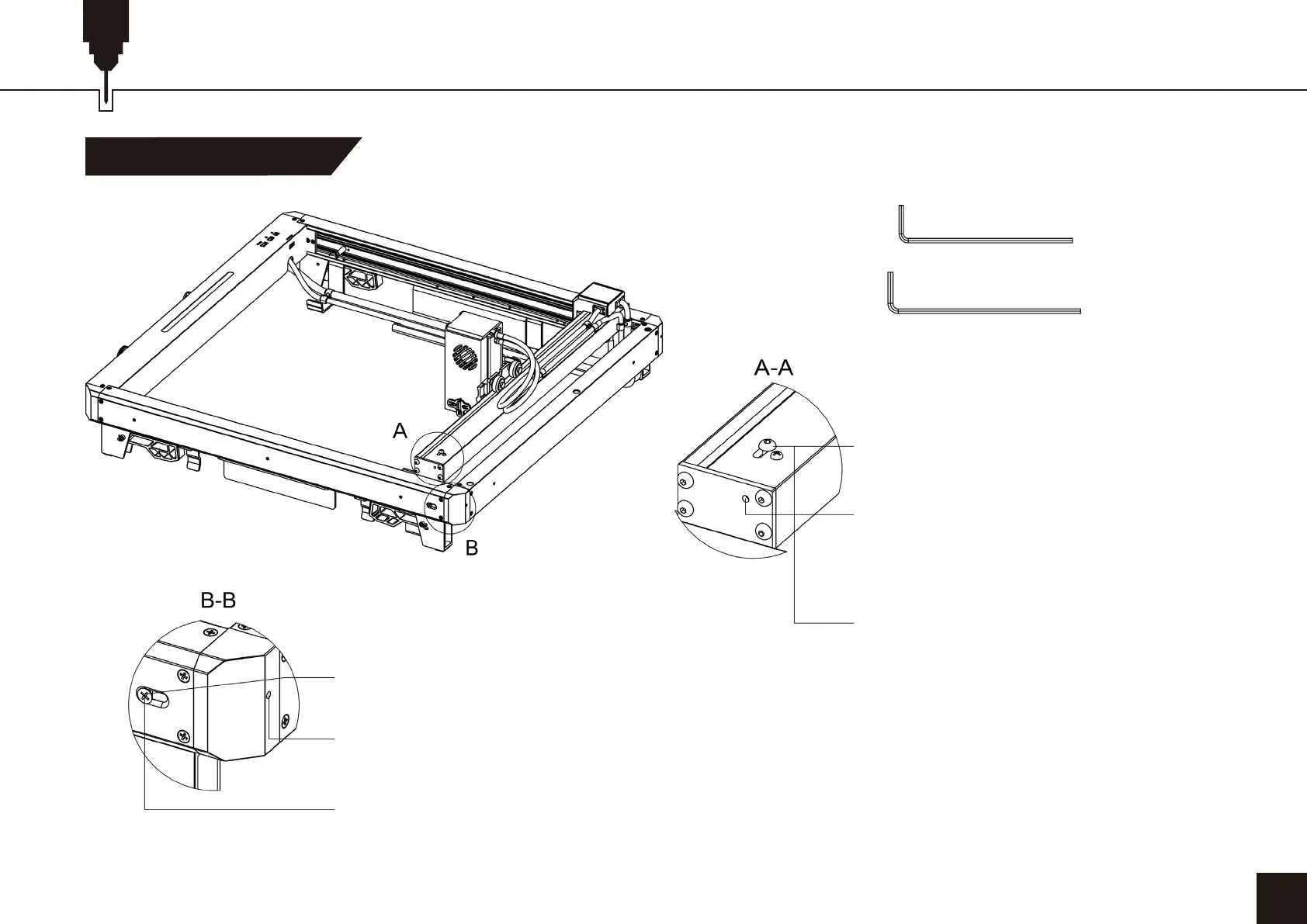

X, Y Belt Adjustment
35
09 Maintenance and Care
2.0 Allen wrench
2.5 Allen wrench
x-axis belt tightness adjustment:
1. Use a 2.5 hex wrench to loosen the
screw counterclockwise.
Y-axis left and right belt tightness adjustment:
1. Use a Phillips screwdriver to loosen the
screws counterclockwise.
2. Align the screws inside the holes and tighten the screws clockwise
with a 2.0 hex wrench to make the belt reach the appropriate tightness.
3. After the belt reaches the appropriate tightness, tighten the screw
clockwise.
2. Align the screws inside the holes and
tighten the screws clockwise with a 2.0 hex
wrench to make the belt reach the
appropriate tightness.
3. After the belt reaches the appropriate
tightness, tighten the screw clockwise.
