Operating instructions
Normal indications
Under normal condition the panel
should give a healthy indication,
with only the green Power
light lit.
The control panel provides system
security by password entry to
controls.
Fire Condition
In the event of an automatic fire
detection the indications given are:
q FIRE light is lit.
q Zones-fire light is lit.
q buzzer sounds continuous tone.
q system alarm sounders are
activated
q if applicable, auxiliary equip-
ment is actuated
q if applicable, automatic link to
the Fire Brigade is initiated.
After the emergency is
over
After emergency is over silence
the alarms and reset the system:
a)
Enter the 3 digit code
to gain access to
the controls.
b)
Press the Silence Alarms
button.
Notice the system alarm
sounders are silenced and
local buzzer sounds continuous
tone.
c) After the cause of the alarm
has been investigated, ensure
smoke and excess heat have
had time to clear from
automatic detectors and
broken manual call point
glasses have been replaced
where necessary. Press the
System Reset button.
Notice the indications return to
their pre fire status.
Fire Panels Operating instructions
Part 2 of 4188-424 Issue 2 5 03/01
Cancel
Buzzer
System
Reset
Sound
Alarms
Silence
Alarms
1
23
4
56
7
8
9
0
v
Shift or Function
key
Shift
Numeric
keypad
Display test
key
Display
Essential controls
Zones
FIRE
Fault
System
Power
Earth
Sounder
Disabled
Test
Day/Night
Access /
Function
Normally lit
to indicate
Power supply
healthy
The light is lit when
the Function key is pressed
or there is an entry to control
with coded access
ZONE Fire, Fault or Disablement indications
Other Fault
indications
1red
yellow
2 3 4 5 6 7
yellow
yellow
yellow
green
8
Power
yellow

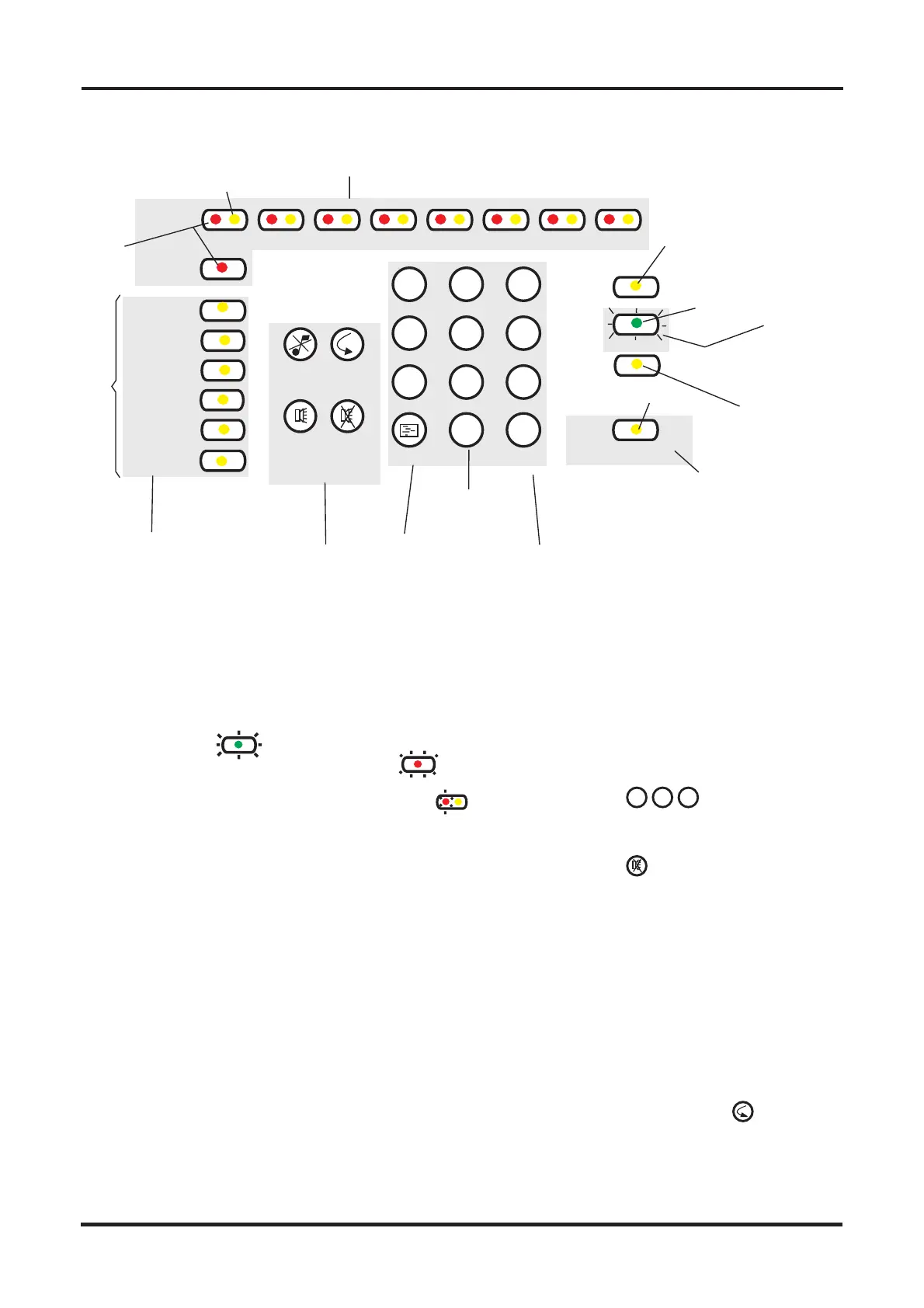

Figure 3 Controls and indications
cd8m191
n n n
