Place the generator on a level
surface.DO NOT tilt the
generator while adding oil. It
can cause you to overfill the oil
and or cause the oil leak into
areas in which it is not
intended. Remove the oil filler

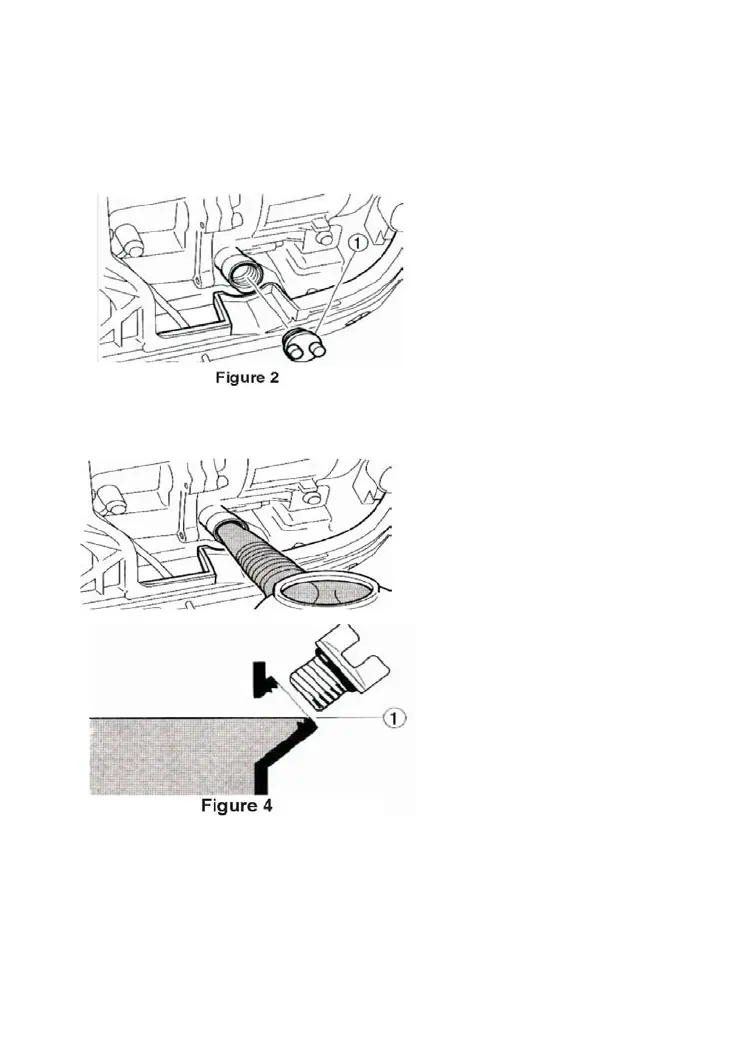

cap seen in figure 2.
Using the funnel provided, fill
with 0.6L of SAE10W-30 or
15W-40 (SEE FIGURE 3) See
figure 4 for proper oil level.
Replace the fuel cap and
secure the side panel with the
screws provided.
Ensure that the correct
amount of oil is used of 0.4L.
