REATTACH BALLISTIC SHELL
A.
Place the inner helmet inside the
ballistic shell; ensure that the hook
fastener on the liner is rmly attached
to the pile fastener on the inside of
the shell.
A.
Readjust the chinstrap as necessary.
B.
Adjust the rear hanger tab as necessary by
sliding the buckles up and down.
C.
Ensure that the nape strap is not pulled
away from the crewmember’s nape; readjust
the nape strap and/or the rear hanger tab
as necessary to ensure that the helmet ts
snugly and is stable on the head.

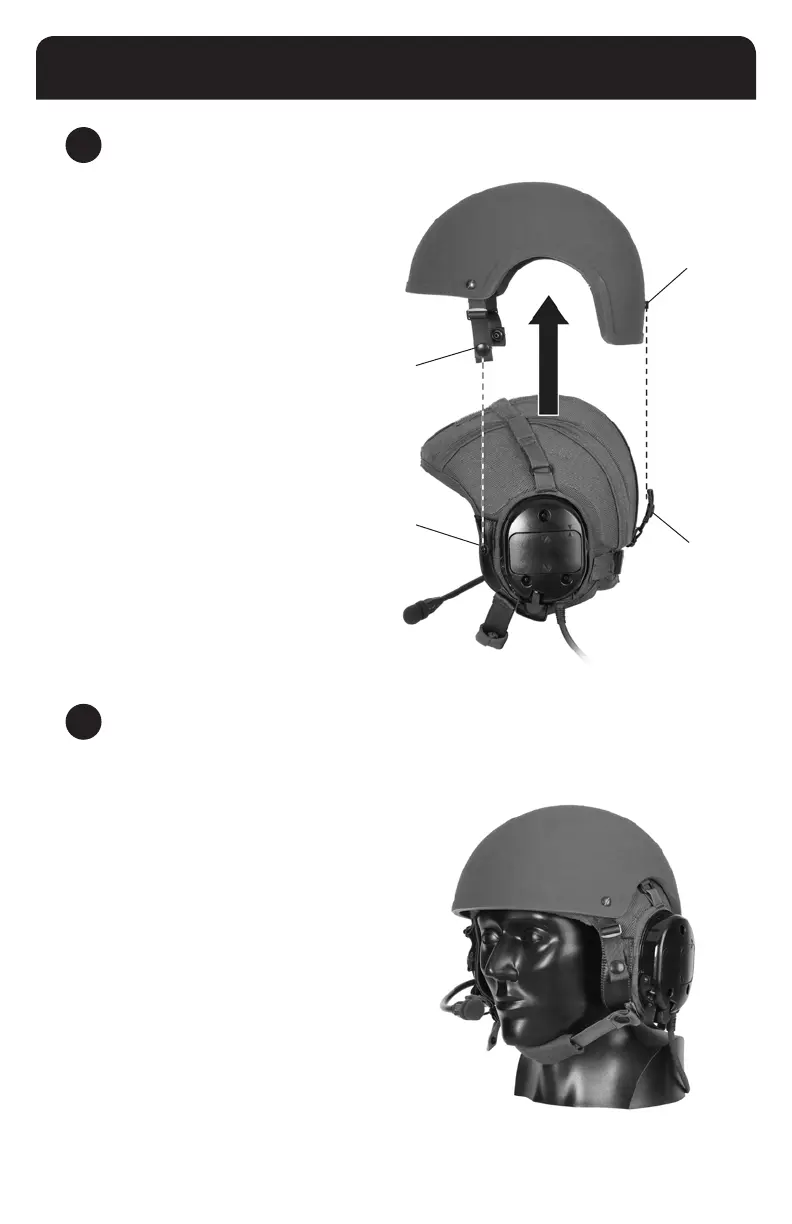

B.
Attach the front hanger tabs
on the ballistic shell to the
inner helmet by fastening
the snaps on both sides.
C.
Attach the rear hanger tab
on the inner helmet to the
rear of the ballistic shell by
fastening the rear snap.
DON THE HELMET AND READJUST
Have the crewmember don the helmet and fasten the chinstrap.
8
Front
Hanger Tab
Front Snap
Rear
Hanger
Tab
Rear Snap
