BBQ ASSEMBLY

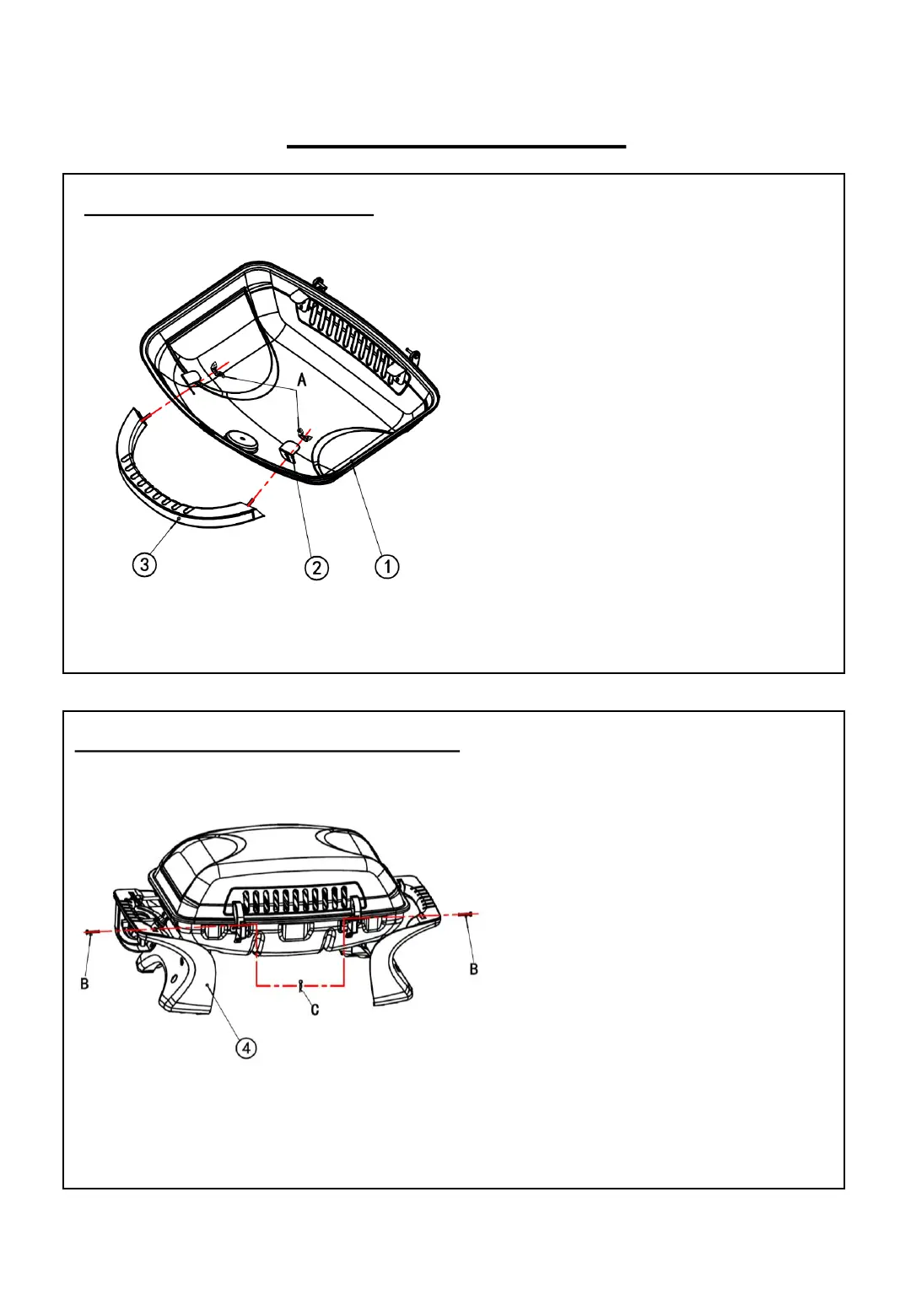

Assembling the Handle
1. Place the Lid (1) onto the Base (4) with
the back of the BBQ facing towards
you.
Ensure that the hinges are aligned.
1.
2. Push a Pin (B) through each of the
hinges, and secure into place using the
Pin Clips (C)
1. Attach the handle (3) and the handle back
plates (2) to the lid (1) using two of the M5
Wing Nuts (A).
Ensure that the handle back plates (2) are
attached to the inside of the lid.
Assembling the Lid to the Base
