GeoVision GV-3D User Manual

Introduction
5
1
1.3.2 Terminal Block
The 8-pin terminal block, located on the rear panel, provides interfaces for connecting a digital
input, a relay output and a GV-GPS Receiver.

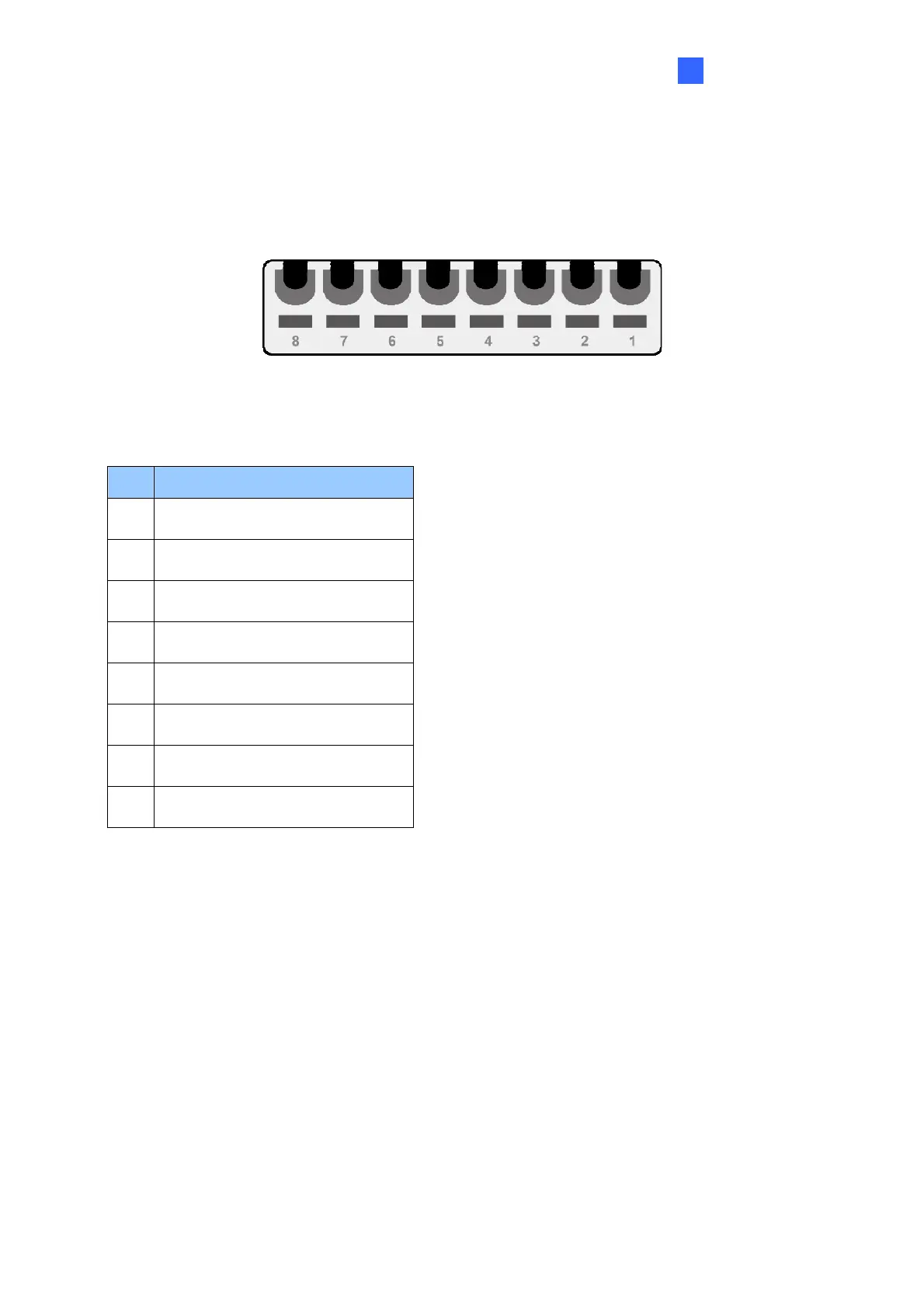

Figure 1-3
PIN Assignment
Pin Function
1. NO
2. COM
3. NC
4. Digital Input
5. Ground
6. UART RX for GV-GPS Receiver
7. UART TX for GV-GPS Receiver
8. DC 5V Out for GV-GPS Receiver
