21.7.3 Advanced TCP/IP

This section provides the advanced TCP/IP settings, including DDNS

Server, HTTP port, HTTPS, streaming port, UPnP, QoS and network

connection check.

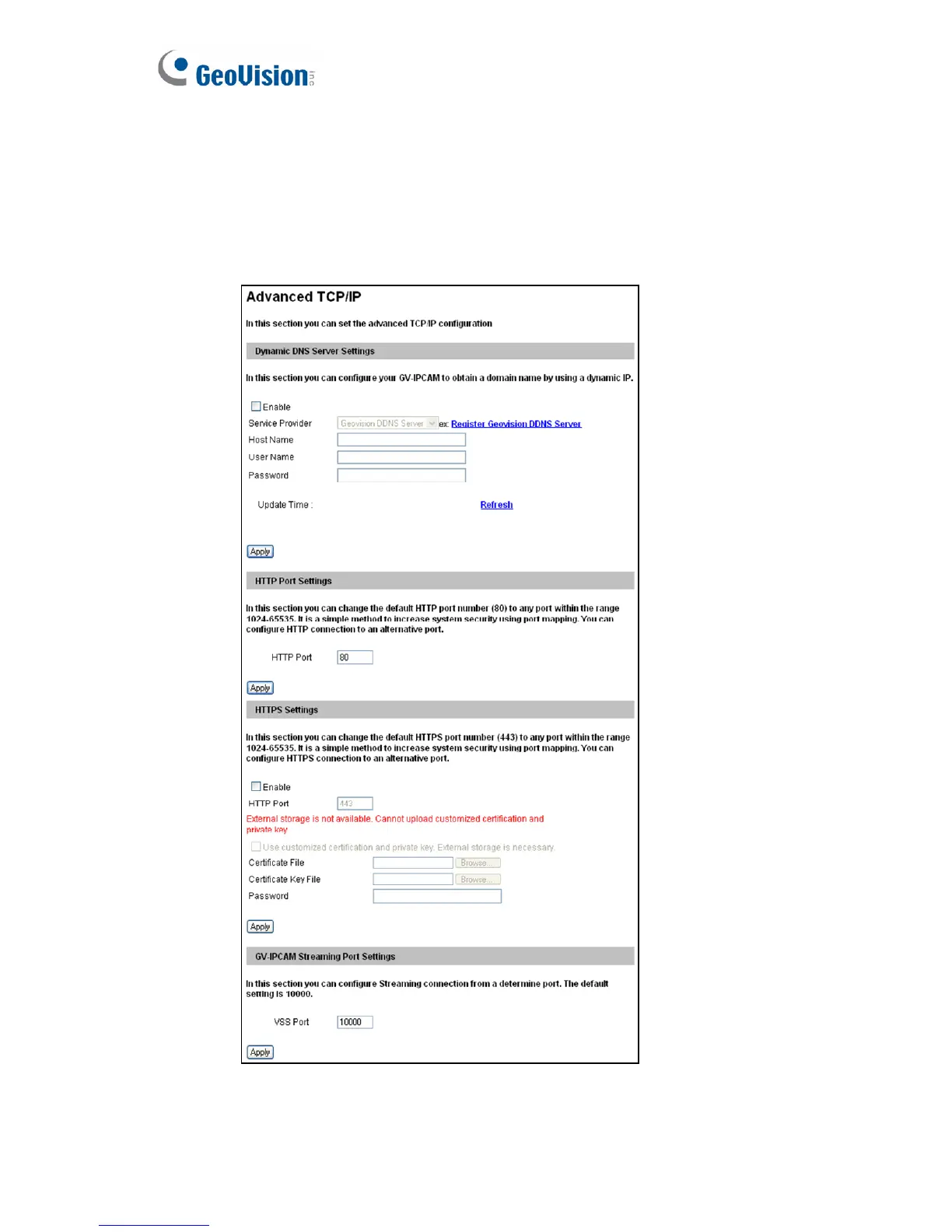

Figure 21-29A
