German pool HTB-916 - Ceiling Mounting: Remove Waterproof Shell; Ceiling Mounting: Install Waterproof Shell

Housing
Fascia
PTC Ceramic Heating
Waterproof Shell
Outlet
P.1

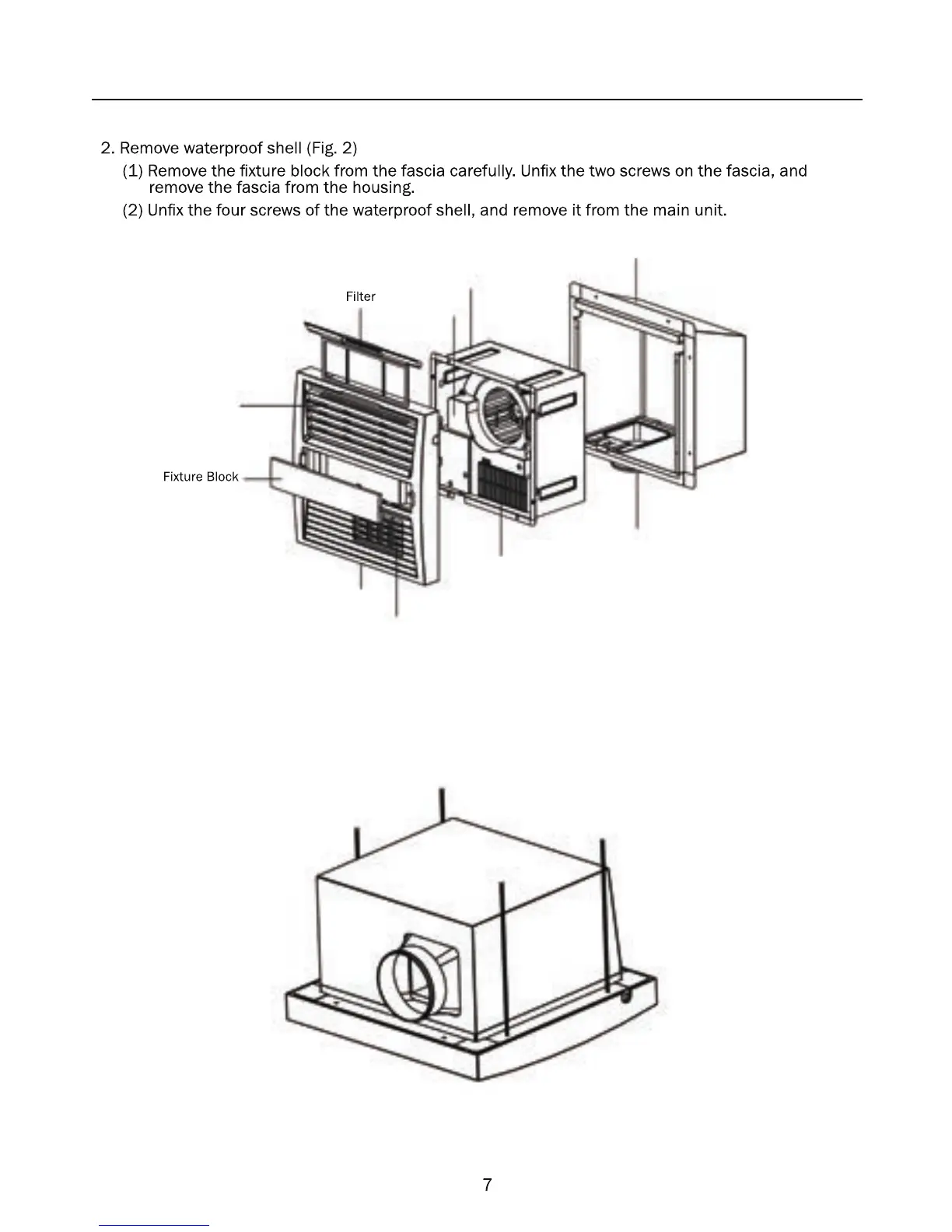

3. Install waterproof shell
Use 4 long bolts (Long M8 bolts is recommended) to fix the waterproof shell on the ceiling, keep it
firmly hangs on the ceiling steadily and levelly, the distance between the heater and surrounding
walls should be at least more than 200mm. (Fig. 3)
(ceiling suspension)
Installation Instructions
(Fig.2)
(Fig.3)
Manual Louvers
Ventilation Outlet
Air Ioniser
