German pool HTB-916 - Ceiling Mounting: Cut Hole

P.
16
Product Structure
Main Unit
Product Content & Accessories
Power connection might be needed before installing the product. When the power cord provided is
not long enough, please remove the machine from the waterproof shell to redo power supply
connection.
Ceiling Mounting
1. Cut hole

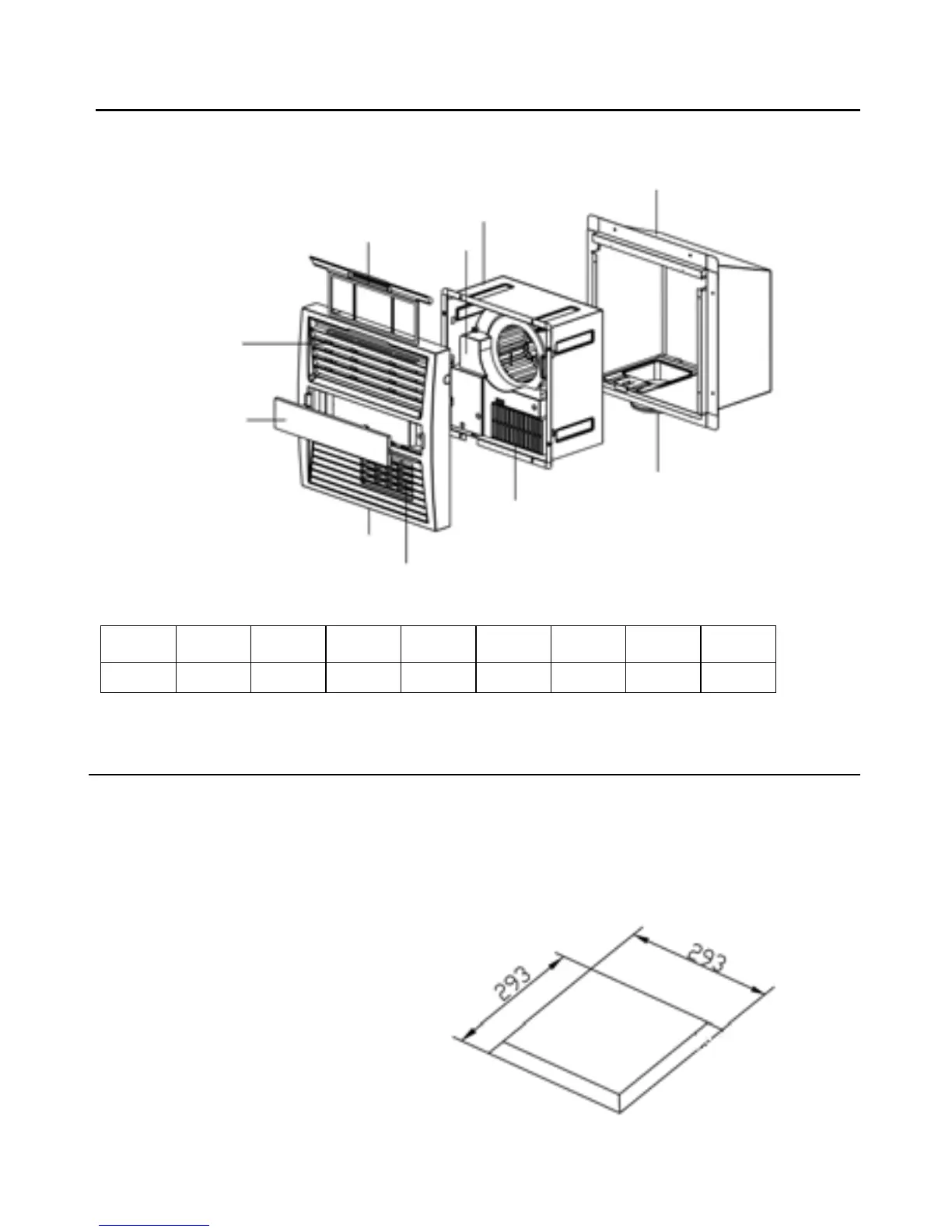

Cut a hole on the ceiling, sized about
293mm x 293mm. (Fig.1)
Housing
Fixture Block
Fascia
PTC Ceramic Heating
Waterproof Shell
Outlet
Installation Instructions
(Fig.1)
Main Unit
1
Waterproof
Shell
1
Grill
1
Duct
(1.5m)
1
Interconnecting
Cord(4.5m)
1
Power
cord(1.5m)
1
Accessories
Pouch
1
User
Manual
1
Specicationgs are subject to change without prior notice.Refer to www.germanpool.com for the most up-to-date version.
Filter
1
Air Ioniser
Ventilation Outlet
Manual Louvers
Remote Control
(with holder)
