P.19

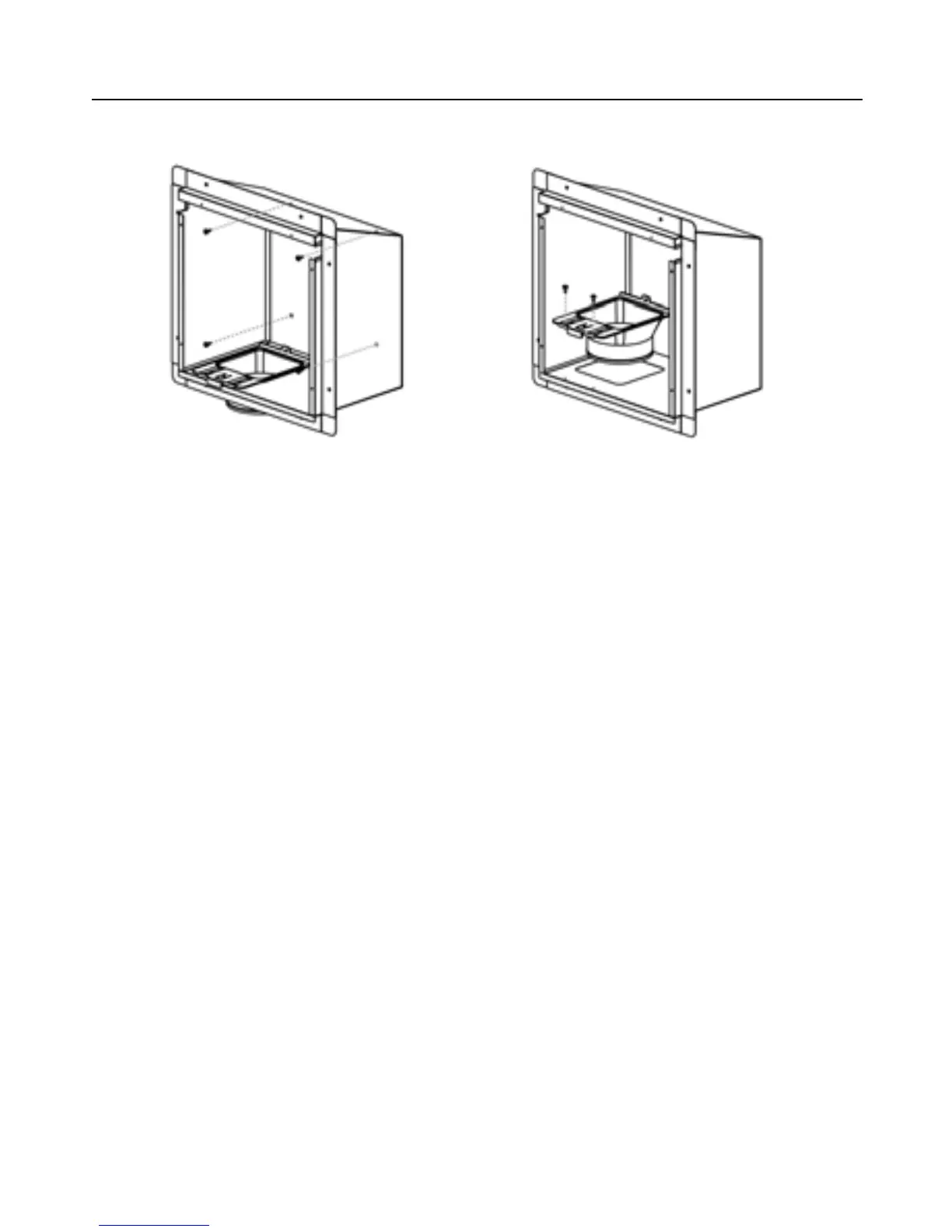

(Fig.4) (Fig.5)
Installation Instructions
4. Mount the outlet
Fix the outlet with 2 screws into the holes of the waterproof shell. (Fig. 5)
5. Mount the housing
Put the unit into the waterproof shell, make sure the slot is in the correct position and can be
installed onto the outlet. Fix the unit to the waterproof shell with screws.
6. Install the fascia
Return the fascia to housing and fix it with screws, and return the fixture block to the fascia.
7. Connet duct
Connect one end of the duct (100mm in diameter) to the outlet; fix it with a hoop or cable tie. And
then extend the duct to outdoors through the window. If necessary, the outdoor end can be
connect to the grill by a hoop or cable tie and then fix the grill on the wall outside.
8. Fix remote control holder
The holder shall be installed at appropriate height. Size of the wall hole should be in line with the
hole of the holder. Drill a Φ8 hole on wall and tap a Φ8 plastic expansion tube into it. Fix the holder
on the wall. The holder should be fixed in a location away from water. After putting in the batteries
(AAA x 2), press every button to make sure everything runs well.
Note:
The controller should not be installed in position too close to the bathtub or shower.
